1001 diesel engine Diagram

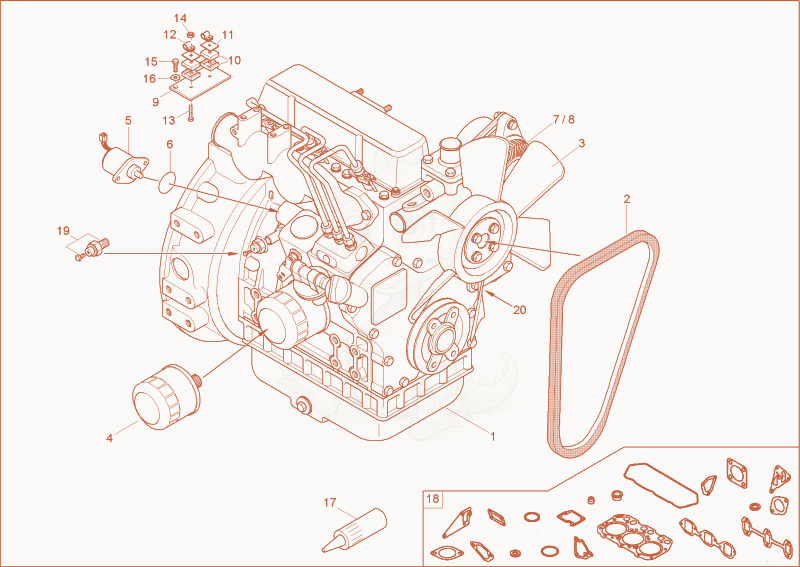

Exploded parts diagram of the diesel engine of a Wacker Neuson 1001, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000093147Not stocked
diesel engine×1
21000002941
$36.03
V-BELT - 1000002941×1
31000065015Not stocked
ventilator fan×1
41000003052
$15.94
engine oilfilter - 1000003052×1
51000003887Not stocked
shut off solenoid×1
61000019260Not stocked
o-ring×1
71000003895
$310.60
GENERATOR - 1000003895×1
81000146981
$323.19
Generator 1000146981×1
91000065176Not stocked
plate×1
101000083285
$1.23
clamp Body - 1000083285×4
111000022379Not stocked
cover plate×2
121000062662Not stocked
pipe clamp×2
131000085393
$0.93
hex screw - 1000085393×2
141000015416
$0.71
DIN985-M8-8-A2C - 1000015416×2
151000015345
$1.55
Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
161000015437Not stocked
lock washer×2
171000035794Not stocked
sealing compound×1
181000065827Not stocked
seal kit diesel engine×1
191000003891Not stocked
oil pressure switch×1
201000002909Not stocked
starter motor×1
