1001 operating valve 1 Diagram

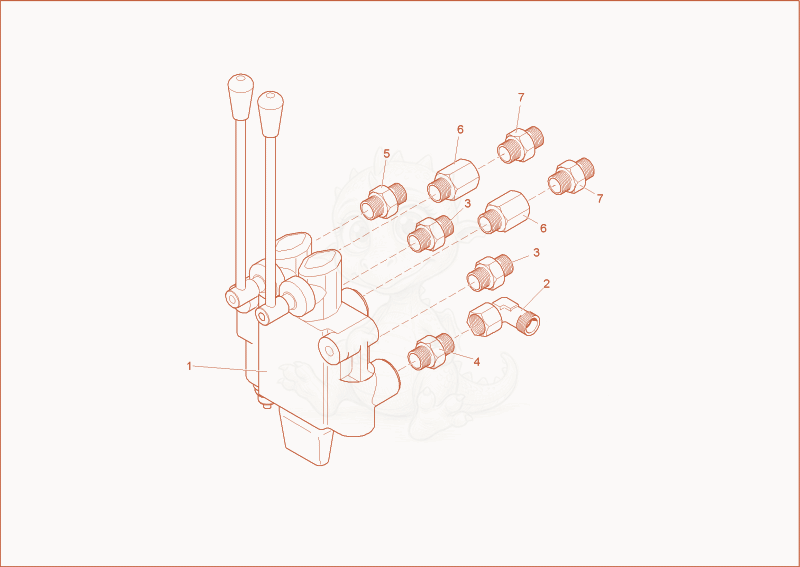

Exploded parts diagram of the operating valve 1 of a Wacker Neuson 1001, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000065027Not stocked
control valve×1
21000015512Not stocked
screw joint×1
31000015489Not stocked
screw joint×2
41000083023
$8.35
GE15LR3/8OROMDA3C - 1000083023×1
51000015492
$2.67
GE12LREDOMDA3C - 1000015492×1
61000015506Not stocked
screw joint×2
71000082963
$3.67
GE08LR1/4OROMDA3C - 1000082963×2
