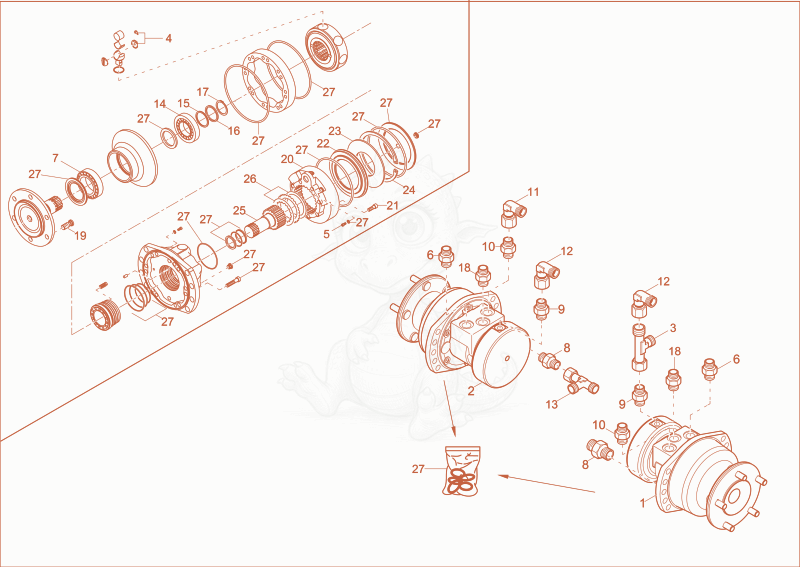

1001 TRAVELLING GEAR 2 Diagram

Exploded parts diagram of the TRAVELLING GEAR 2 of a Wacker Neuson 1001, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000065031
$3,818.13
HYDRAULIC MOTOR - 1000065031×1
21000065032
$3,163.81
HYDRAULIC MOTOR - 1000065032×1
31000015515Not stocked
screw joint×1
41000065050Not stocked
repairing set×1
51000065073
$0.36
SCREW - 1000065073×1
61000015549Not stocked
screw joint×1
71000179450
$176.78
Bearing - 1000179450×1
81000015491Not stocked
screw joint×2
91000015488Not stocked
screw joint×2
101000015494Not stocked
screw joint×2
111000015512Not stocked
screw joint×1
121000000542
$11.08
EW08LOMD - 1000000542×1
131000085089
$10.48
EL10LOMDA3C - 1000085089×1
141000179461
$206.75
Bearing - 1000179461×1
151000065061
$125.47
SET OF SPUDS - 1000065061×1
161000065062
$66.96
RING - 1000065062×1
171000065063Not stocked
lock ring×1
181000015497Not stocked
screw joint×2
191000179467
$60.34
Wheel bolt - 1000179467×5
201000065066Not stocked
brake housing×1
211000065068
$1.91
SCREW - 1000065068×8
221000065069Not stocked
brake pirton×1
231000065070
$131.87
brake disc - 1000065070×1
241000065071Not stocked
lock ring×1
251000065072
$316.89
SHAFT - 1000065072×1
261000065074Not stocked
brakedisc set×1
271000065075
$502.26
SEAL KIT HYDRAULIC MOTOR - 1000065075×1
