1601 displacement pump Diagram

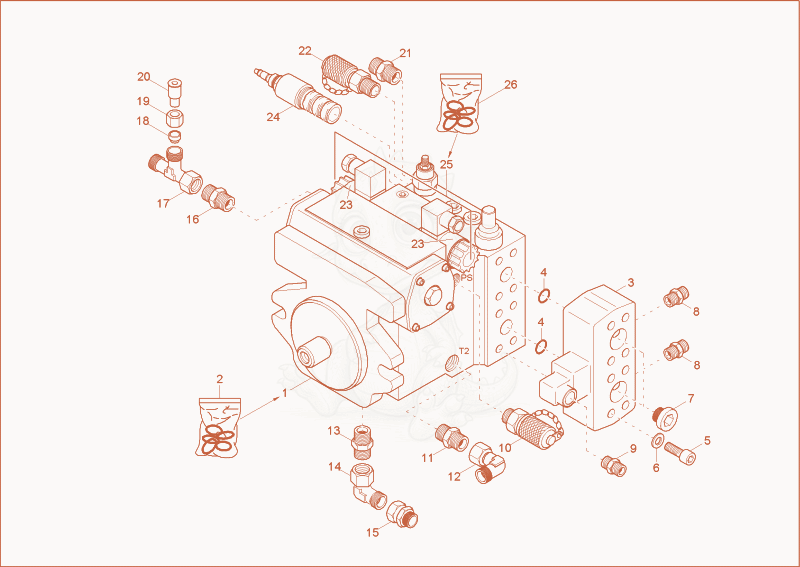

Exploded parts diagram of the displacement pump of a Wacker Neuson 1601, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000139655
$9,289.75
displacement pump - 1000139655×1
21000151947
$473.85
SEAL KIT - 1000151947×1
31000163362
$1,596.25
Washingvalve 1000163362×1
41000083620
$1.16
o-ring - 1000083620×2
51000085506
$1.16
screw - 1000085506×8
61000015438Not stocked
lock washer×8
71000117412Not stocked
screw joint×2
81000085092
$16.85
GE20SMEDOMDA3C - 1000085092×2
91000083057
$5.47
GE10LM16X1,5EDOMDA3C - 1000083057×1
101000083180
$37.65
EM3/M14X1,5 - 1000083180×1
111000085135
$22.62
GE10LM22X1,5EDOMDA3C - 1000085135×1
121000015510Not stocked
screw joint×1
131000085099
$10.84
GE28LMEDOMDA3C - 1000085099×1
141000085091
$31.25
EW28LOMDA3C - 1000085091×1
151000085042
$14.70
RED28/22LOMDA3C - 1000085042×1
161000085101
$9.72
GE15LM22X1,5EDOMDA3C - 1000085101×1
171000015539Not stocked
screw joint×1
181000019585
$2.87
DPR15LX - 1000019585×1
191000019577Not stocked
union nut×1
201000065024Not stocked
adapter×1
211000085090
$2.13
GE08LMEDOMDA3C - 1000085090×1
221000083178
$18.04
EM3/M12X1,5 - 1000083178×1
231000089490
$134.99
SOLENOID - 1000089490×2
241000111185
$2,237.05
CONTROL CARTRIDGE - 1000111185×1
251000124682
$3,342.87
drive valve - 1000124682×1
261000160344
$321.05
SEAL KIT - 1000160344×1
