1601 skip Diagram

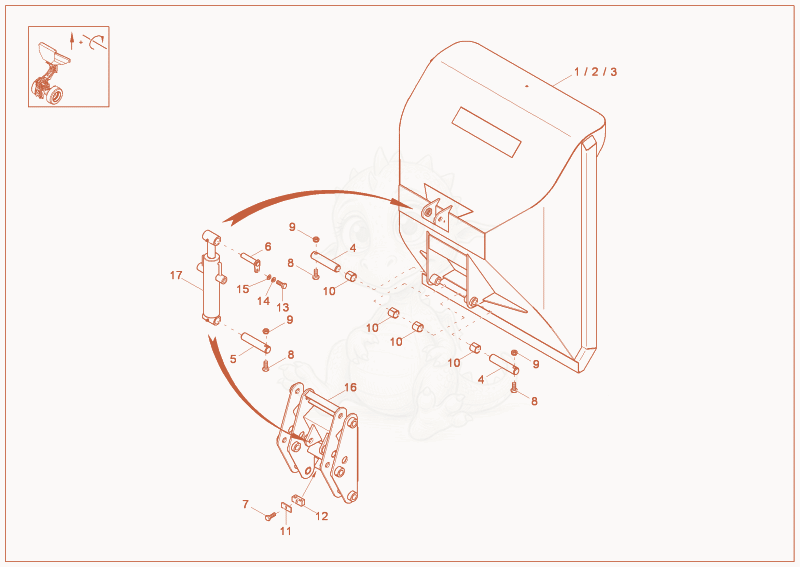

Exploded parts diagram of the skip of a Wacker Neuson 1601, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000151145
$7,105.20
Skip 1000151145×1
21000151144
$7,105.20
Skip 1000151144×1
31000183201
$4,880.86
Skip 1000183201×1
41000065135
$15.73
PIN - 1000065135×2
51000065136
$16.23
pin - 1000065136×1
61000065192Not stocked
pin tiltram×1
71000082240
$1.58
cheese head screw - 1000082240×1
81000085317
$0.97
hex screw M8x55-8.8 A2C-DIN931 - 1000085317×3
91000015416
$0.71
DIN985-M8-8-A2C - 1000015416×3
101000083234
$2.26
DX BUSHING - 1000083234×4
111000022379Not stocked
cover plate×1
121000083285
$1.23
clamp Body - 1000083285×1
131000013008Not stocked
hex screw×1
141000015437Not stocked
lock washer×1
151000015448Not stocked
washer×1
161000064966
$1,430.90
Bucketconsole 1000064966×1
171000372004Not stocked
tilt ram×1
