1601 REAR PART CHASSIS Diagram

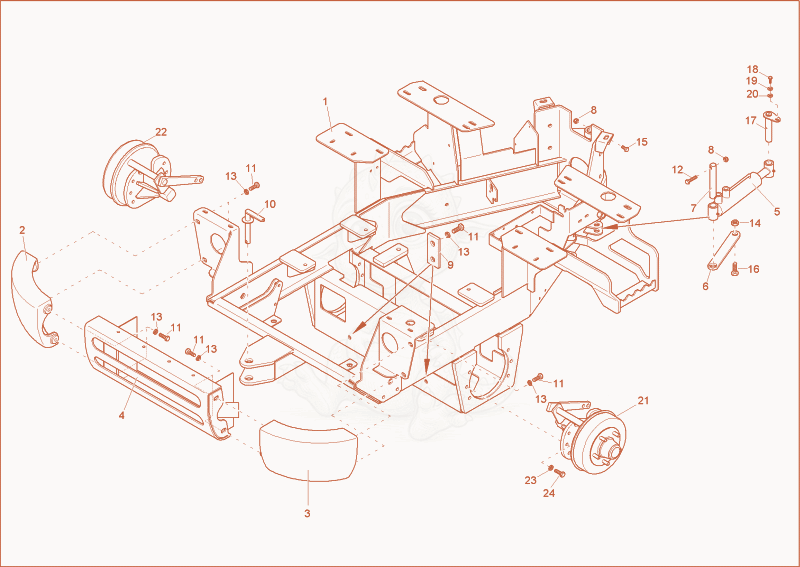

Exploded parts diagram of the REAR PART CHASSIS of a Wacker Neuson 1601, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000144311Not stocked
rear frame×1
21000064946Not stocked
cast iron edge×1
31000064947
$769.88
Castironedge 1000064947×1
41000064958Not stocked
rear plate×1
51000065020Not stocked
steering cylinder×1
61000065145Not stocked
buckle support×1
71000079047Not stocked
steering ram pin×1
81000015416
$0.71
DIN985-M8-8-A2C - 1000015416×4
91000065148Not stocked
brake venting×2
101000065150Not stocked
towing pin×1
111000015381Not stocked
hex screw×10
121000018447Not stocked
hex screw×1
131000082638
$0.73
washer 13 -DIN134 - 1000082638×10
141000020788Not stocked
hexagon nut×1
151000085317
$0.97
hex screw M8x55-8.8 A2C-DIN931 - 1000085317×1
161000047713Not stocked
hex screw×1
171000079056
$66.42
steeringram pin - 1000079056×1
181000013008Not stocked
hex screw×1
191000015437Not stocked
lock washer×1
201000015448Not stocked
washer×1
211000143482
$593.80
WHEEL HUB - 1000143482×1
221000143475
$580.77
WHEEL HUB - 1000143475×1
231000015450Not stocked
northlock disc×12
241000085404
$0.93
hex screw - 1000085404×12
