Dumper 5001_obsolete

5001 CYLINDER HEAD, VALVE COVER Diagram

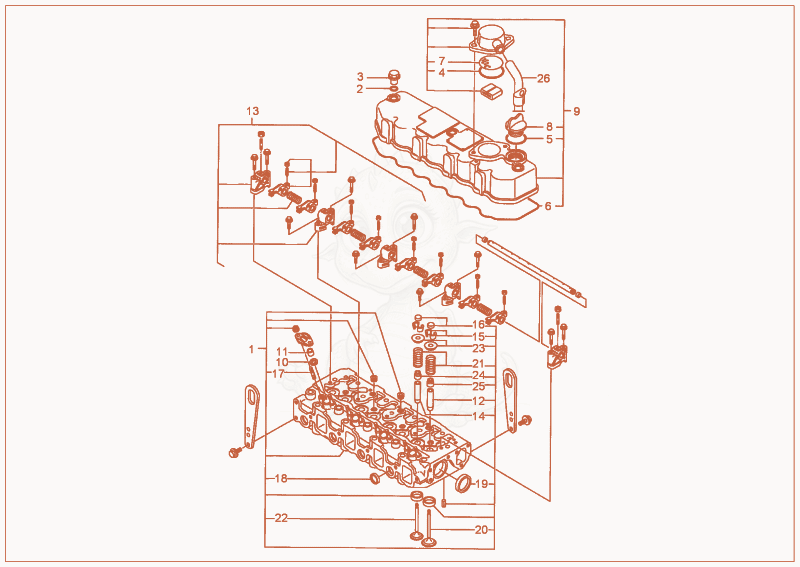

Exploded parts diagram of the CYLINDER HEAD, VALVE COVER of a Wacker Neuson 5001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000237232Not stocked
    cylinder head×1
  • 21000003894
    $0.29
    O-RING - 1000003894×3
  • 31000035818
    $7.95
    headnut - 1000035818×3
  • 41000035812
    $2.78
    Seal - 1000035812×1
  • 51000035757Not stocked
    seal ring×1
  • 61000005138Not stocked
    valve cover seal×1
  • 71000102747
    $3.55
    Screen - 1000102747×1
  • 81000002921Not stocked
    oil filler cap×1
  • 91000102746
    $736.69
    Cylinderheadcover 1000102746×1
  • 101000004679Not stocked
    seal ring×4
  • 111000107508
    $12.22
    PROTECTION - 1000107508×4
  • 121000107512
    $35.55
    valve - 1000107512×4
  • 131000102745
    $722.22
    bearing support - 1000102745×1
  • 141000075709
    $31.80
    valve - 1000075709×4
  • 151000191553
    $17.78
    CLAMP - 1000191553×8
  • 161000107520
    $6.12
    VALVE CAP - 1000107520×8
  • 171000148690
    $2.30
    stud bolt - 1000148690×8
  • 181000035831Not stocked
    plug×4
  • 191000012355
    $6.39
    PLUG - 1000012355×2
  • 201000035835Not stocked
    intake valve×4
  • 211000107515
    $10.78
    SPRING - 1000107515×8
  • 221000035839
    $39.68
    VALVE - 1000035839×4
  • 231000107517
    $22.65
    WASHER - 1000107517×8
  • 241000035847Not stocked
    valve shaft seal×4
  • 251000107513
    $6.91
    VALVE SHAFT SEAL - 1000107513×4
  • 261000085199
    $10.73
    venting hose - 1000085199×1
