Dumper 5001_obsolete

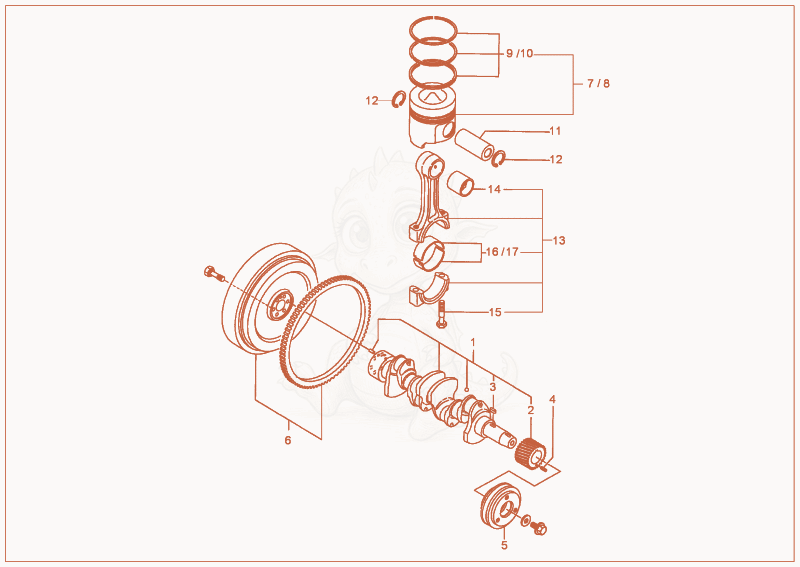

5001 crankshaft, piston Diagram

Exploded parts diagram of the crankshaft, piston of a Wacker Neuson 5001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000237276Not stocked
    crank shaft×1
  • 21000146120Not stocked
    gear×1
  • 31000107537
    $2.10
    fitting key - 1000107537×1
  • 41000107633Not stocked
    cylinder pin×1
  • 51000071937
    $283.70
    BELT PULLEY - 1000071937×1
  • 61000143714Not stocked
    flywheel×1
  • 71000181475Not stocked
    piston×4
  • 81000234393Not stocked
    SET OF BACKUP RINGS×4
  • 91000181476Not stocked
    SET OF BACKUP RINGS×4
  • 101000237277Not stocked
    SET OF BACKUP RINGS×4
  • 111000107730
    $28.61
    PIN - 1000107730×4
  • 121000107728
    $1.96
    lock ING - 1000107728×8
  • 131000085162
    $413.88
    connecting rod - 1000085162×4
  • 141000107731
    $17.48
    BUSHING - 1000107731×4
  • 151000035777Not stocked
    conn.rod screw×8
  • 161000107732
    $44.98
    CONN.ROD BEARING - 1000107732×4
  • 171000099236
    $30.07
    CONN.ROD BEARING - 1000099236×4
