Dumper 5001_obsolete

5001 RELAY BOX Diagram

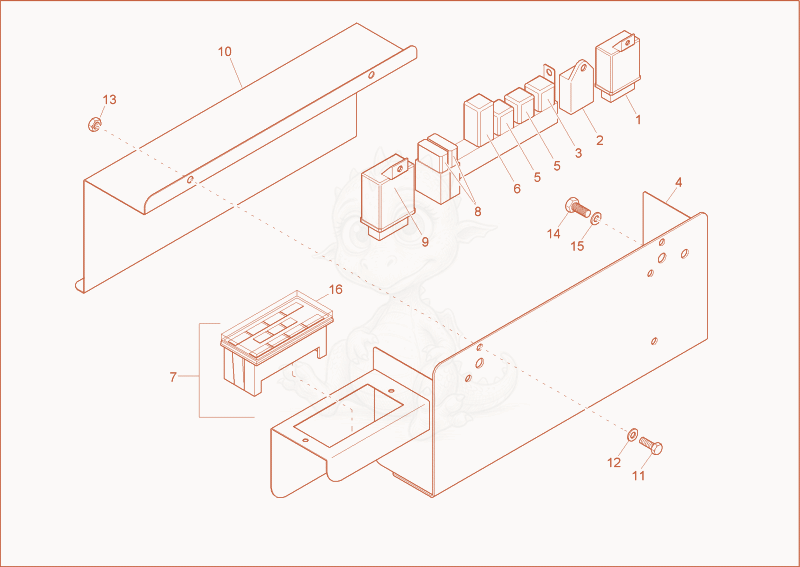

Exploded parts diagram of the RELAY BOX of a Wacker Neuson 5001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000069105Not stocked
    start relay×1
  • 21000012334Not stocked
    time relay×1
  • 31000081794
    $49.74
    RELAY - 1000081794×1
  • 41000075040Not stocked
    relay case×1
  • 51000001541Not stocked
    relay×2
  • 61000001866Not stocked
    step relay×1
  • 71000001534Not stocked
    fuse box×1
  • 81000015298
    $3.25
    FUSE - 1000015298×2
  • 91000075057Not stocked
    diode box×1
  • 101000075041Not stocked
    cover relay box×1
  • 111000085382
    $0.70
    HEX SCREW - 1000085382×3
  • 121000015444Not stocked
    spring washer×3
  • 131000015405Not stocked
    hexagon nut×3
  • 141000019136Not stocked
    hex screw×2
  • 151000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×2
  • 161000099373
    $35.35
    COVER FUSE BOX - 1000099373×1
