Neuson 5002RD
5002RD Parts Diagrams
134 factory assemblies. Open one to see the drawing, every part number on it and what we charge for it.
undercarriage

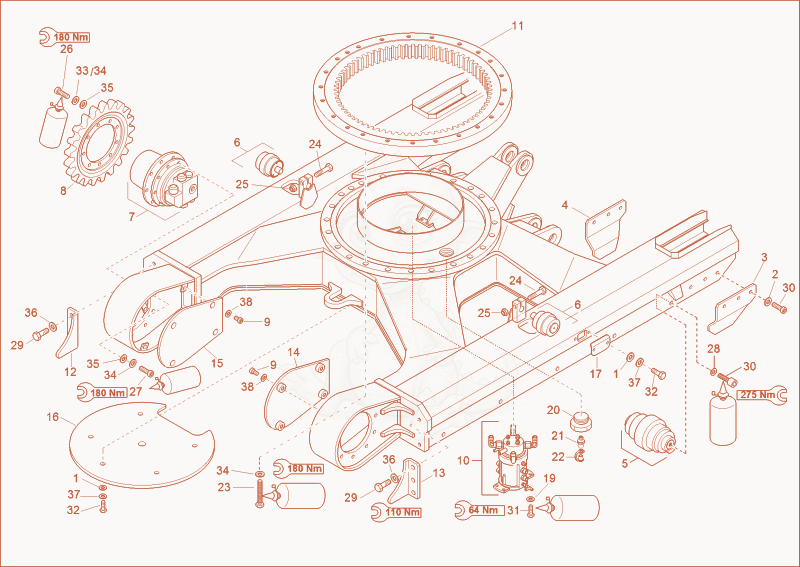

TRACKLAYING GEAR (OPTION STEEL CHAIN)
TRACK
support roller

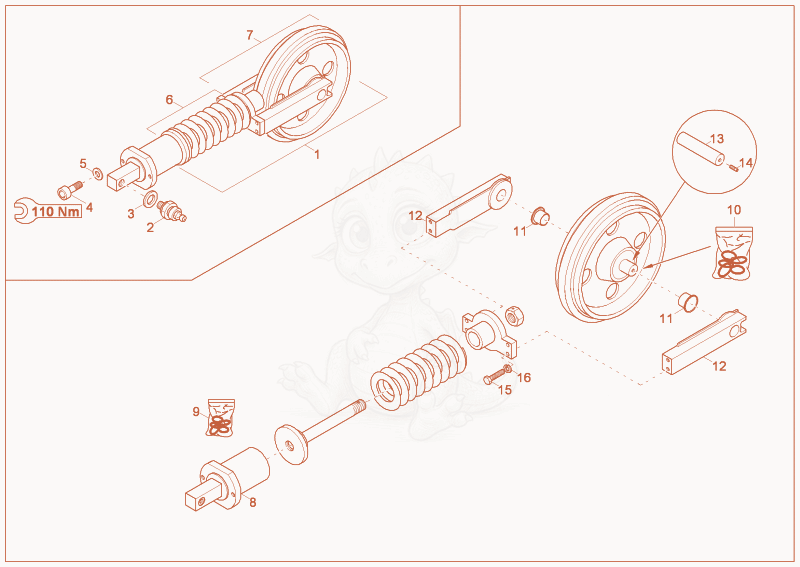

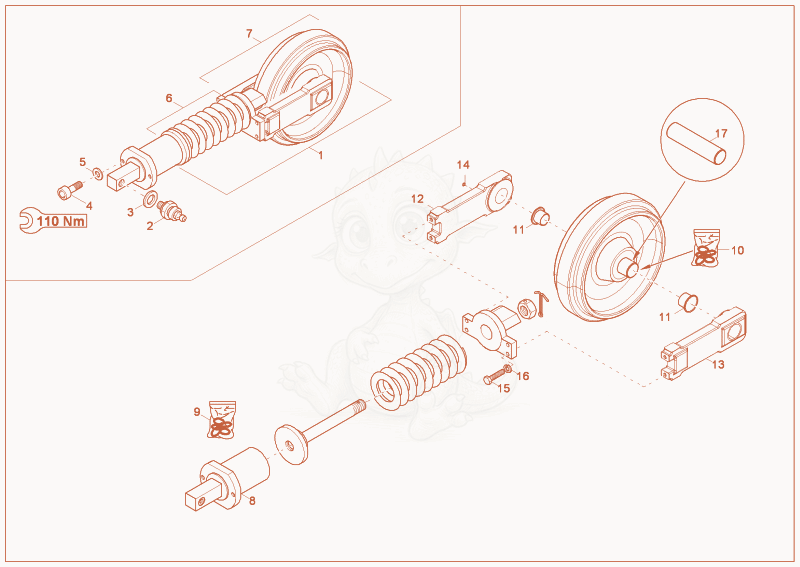

track tensioner complete
track tensioner complete
track tensioner complete
TRACK TENSIONER (OPTION STEEL CHAIN)
guide roller
guide roller
dozer blade

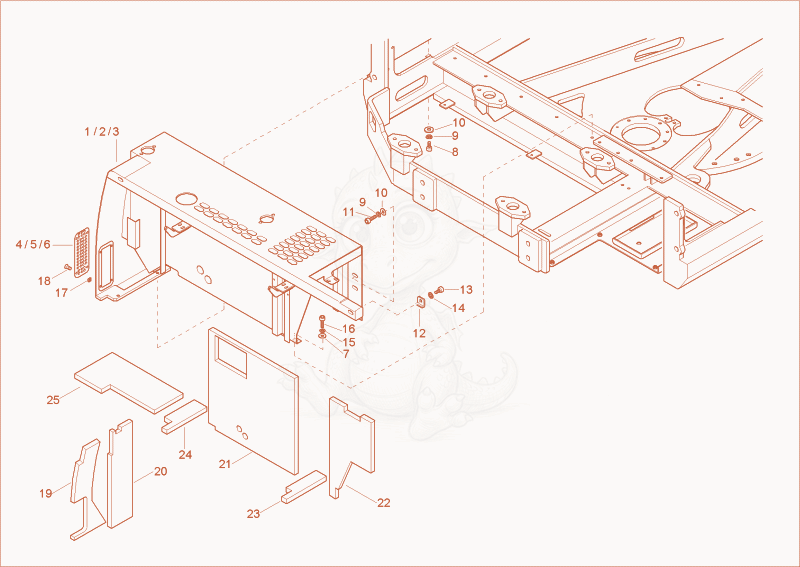

chassis
chassis cover
lubrication
rear plate

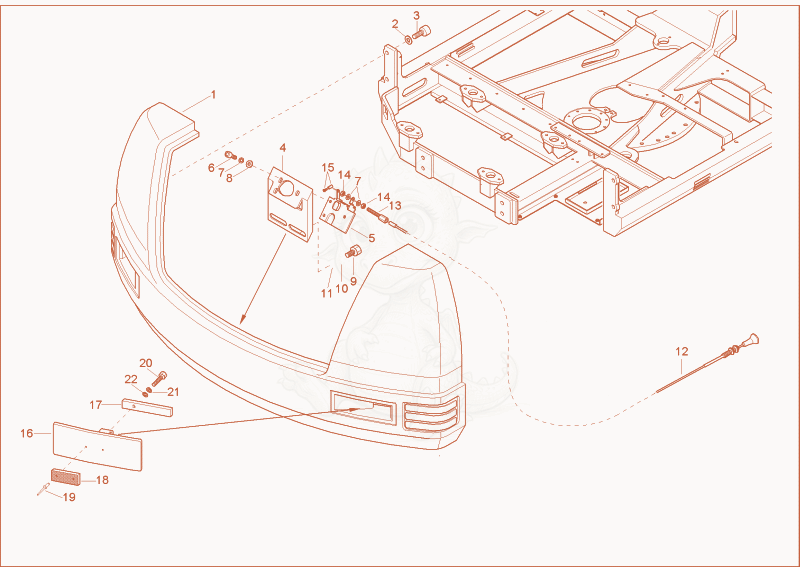

bumper

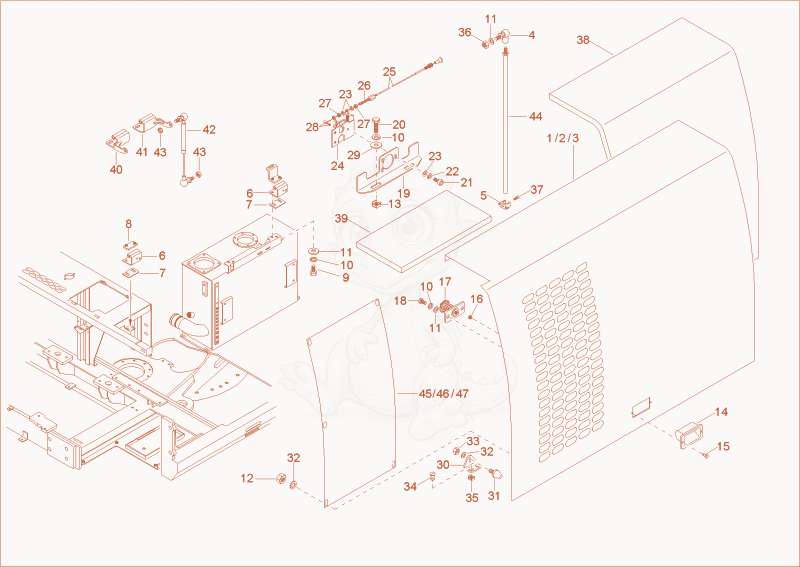

engine hood
valve cover
hose cover
tank cover

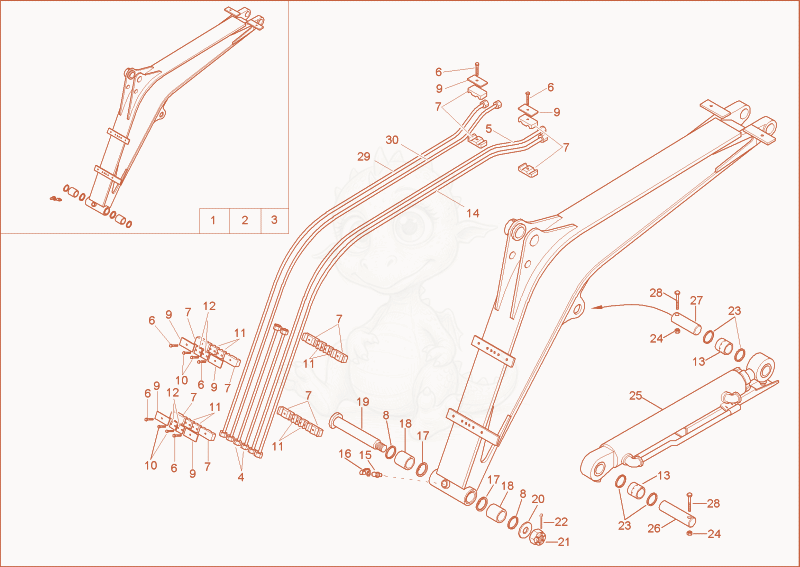

lift arm
dipperstick
CONNECTING LINK

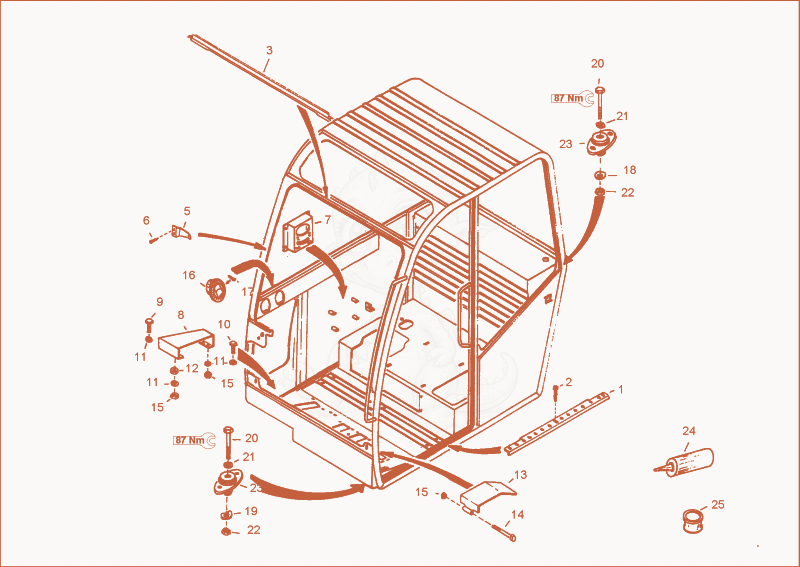

CABIN MOUNTING
CABIN FRAME 1
CABIN FRAME 1A
CABIN FRAME 2
CABIN FRAME 2A
CABIN FRAME 3
CABIN FRAME 3A
CABLING
front window
CABIN WINDOWS
slide window
door
coating
heating
drivers seat
Air cushioned seat (Option)
diesel engine
Engine bedding
cylinder head
cylinder block
cylinder block
seal crankshaft
oil sump
CAMSHAFT
crankshaft, piston
lub oil system
cooling system
fuel injection equipment
fuel tank
fuel system
DIESEL TANK FILLING PUMP (OPTION)
DIESEL TANK FILLING PUMP (OPTION)

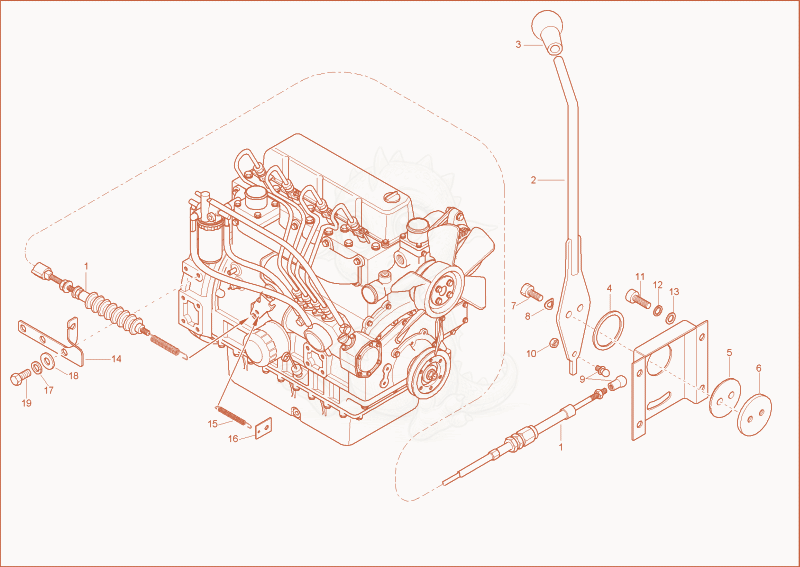

speed actuating
water cooler

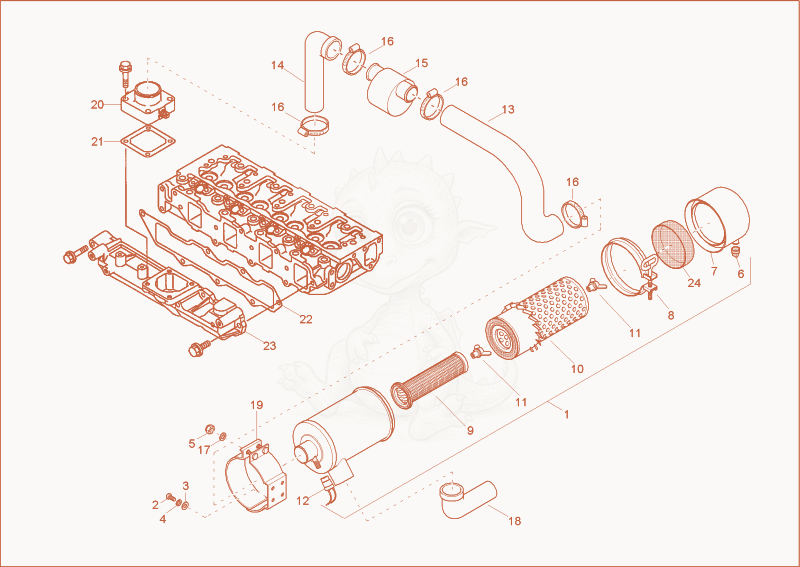

air cleaner

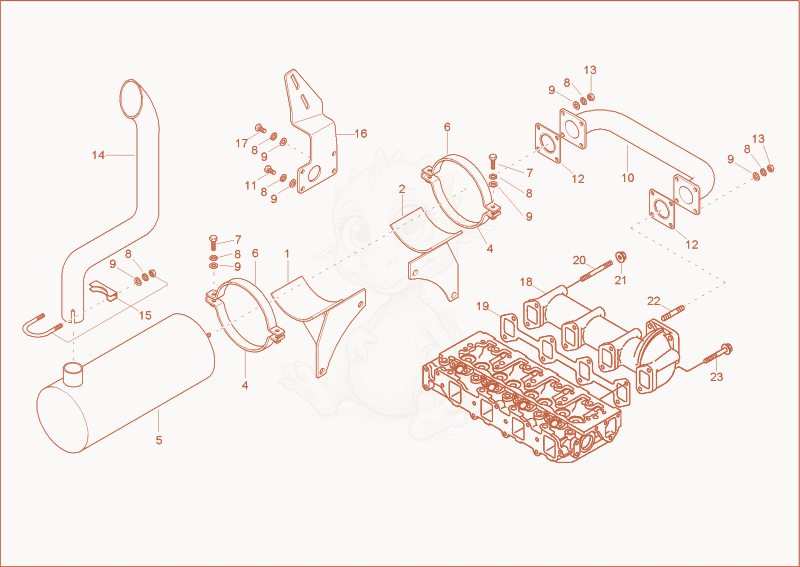

exhaust
HYDRAULIC PUMP DRIVE

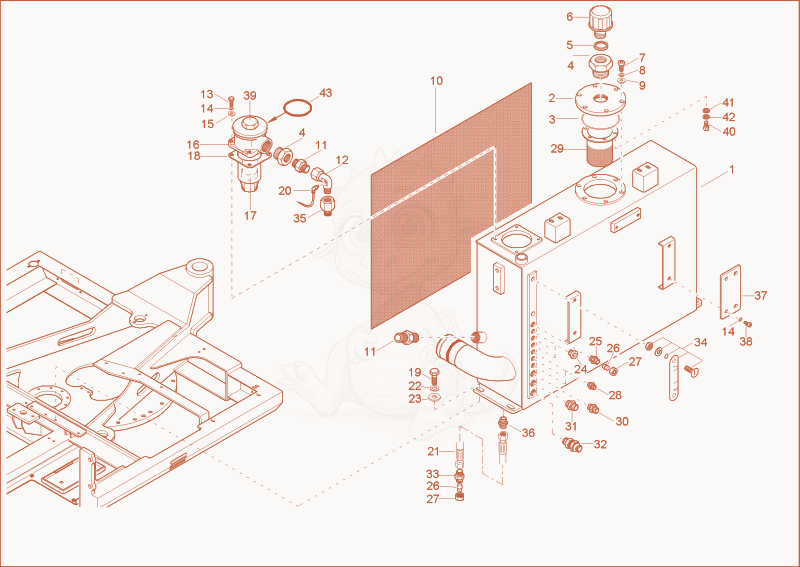

hydraulic tank
oil cooler
drive unit
turning joint
turning joint

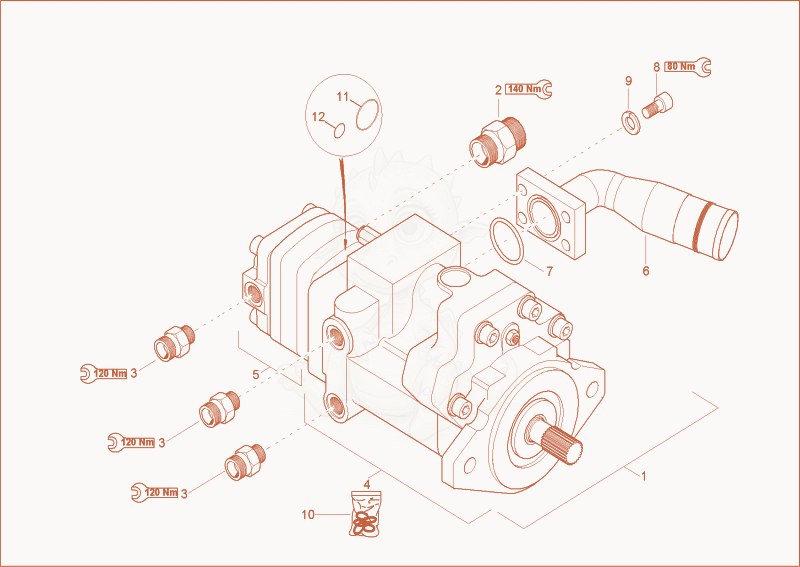

hydraulic pump
HYDRAULIK PUMP DISASSEMBLED

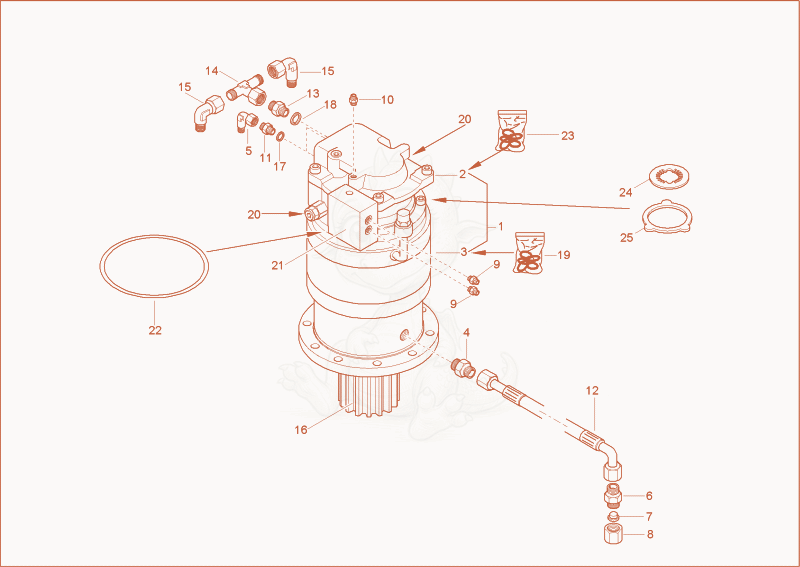

swivel drive
swivel drive
VALVE BLOCK 1
VALVE BLOCK 2

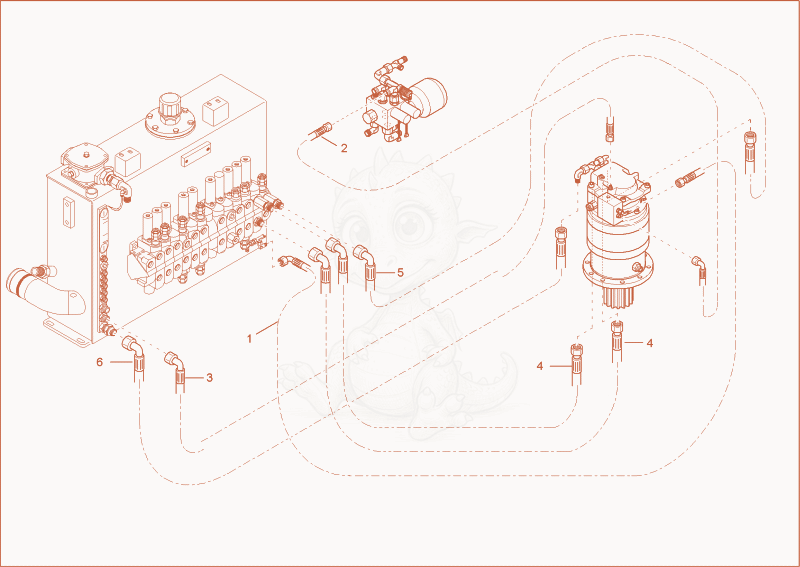

controloil unit
VALVE BLOCK
distributor block
change over valve
joystick
blade valve
driving valve
PILOT OPPERATED CHECK VALVES
SOLENOID VALVE (OPTION)
4/3 VALVE (OPTION)
8/2 VALVE (OPTION)

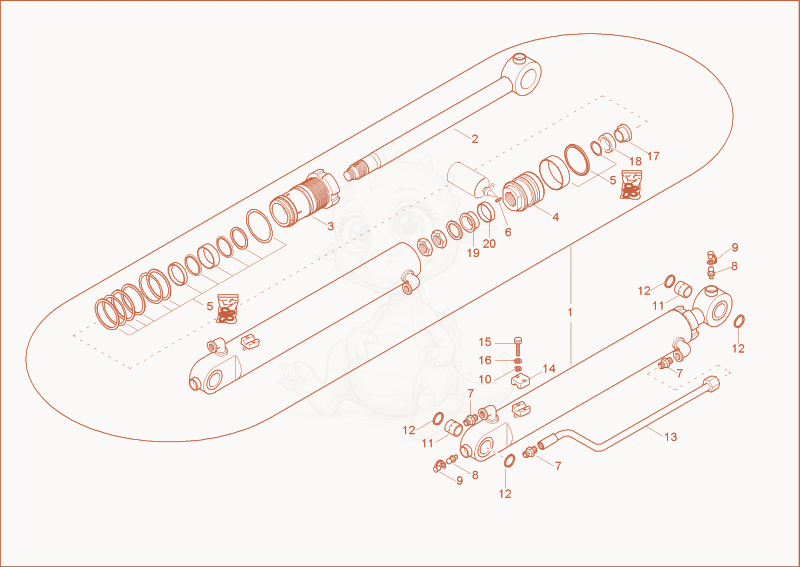

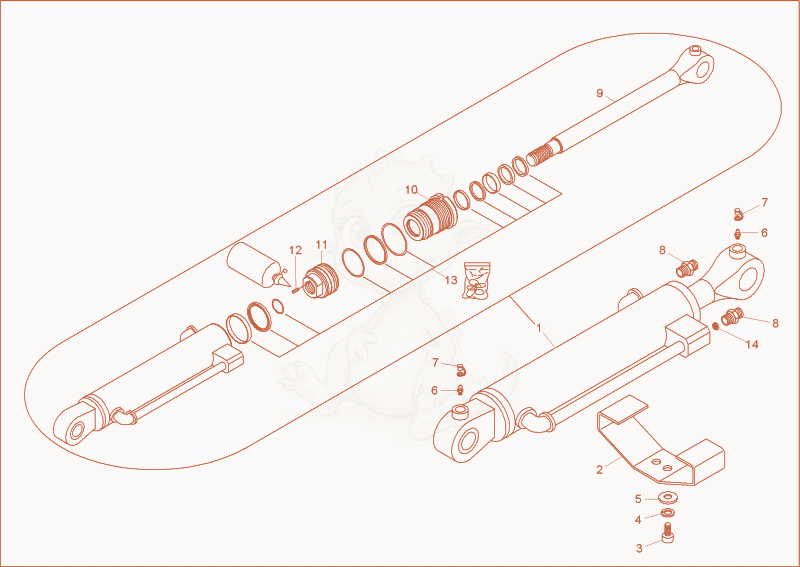

boom cylinder
boom cylinder
dipper arm cylinder
dipper arm cylinder

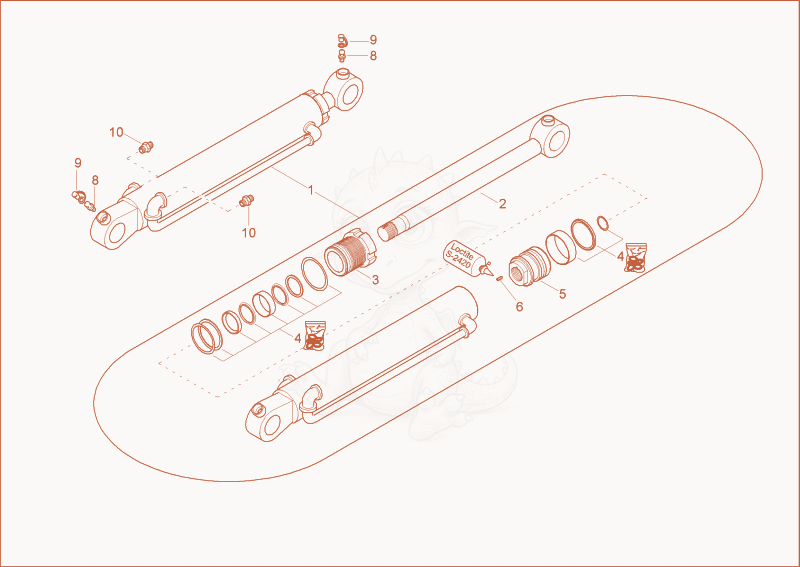

bucket cylinder
boom offset cylinder
blade cylinder
HYDRAULIC PUMP INSTALLATION

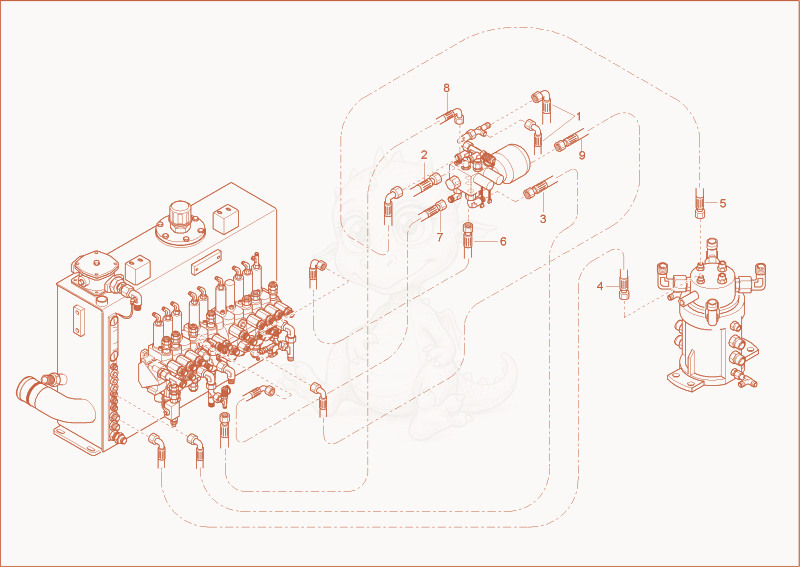

OIL COOLER INSTALLATION
TURNTABLE DRIVE UNIT INSTALLATION
TURNTABLE DRIVE UNIT INSTALLATION

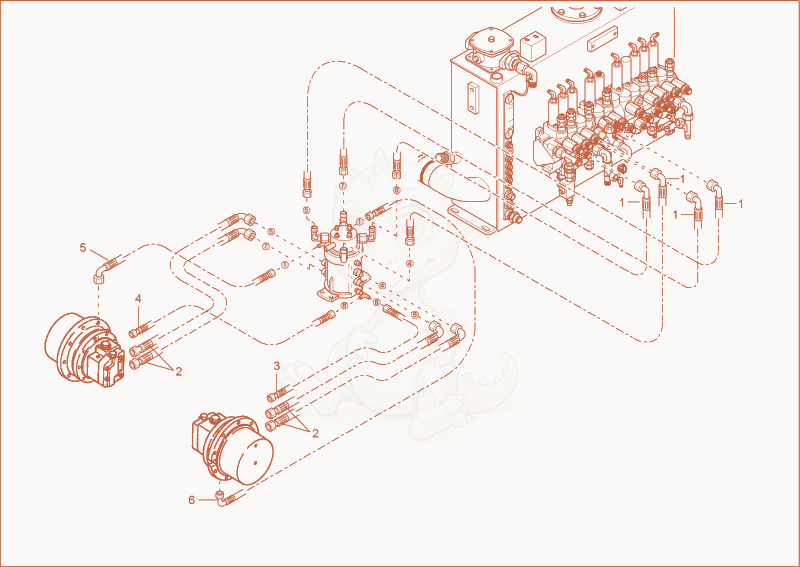

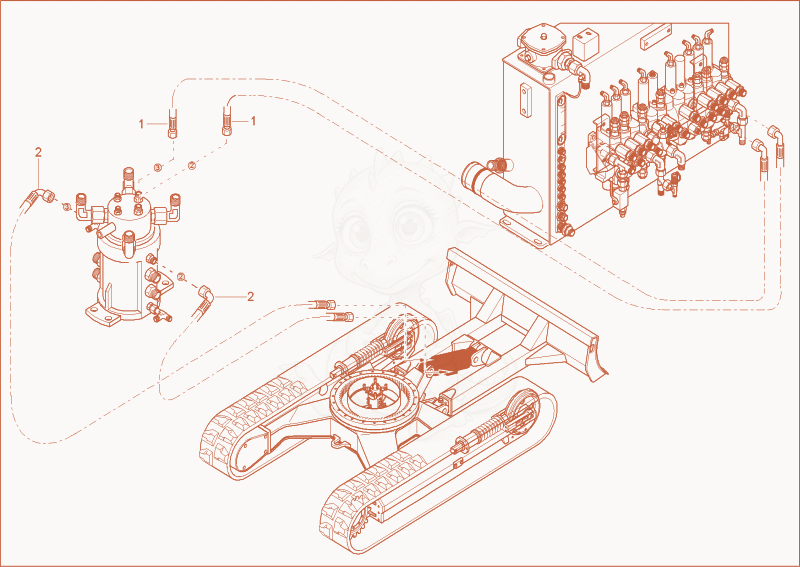

TRAVELLING GEAR INSTALLATION
INSTALLATION VALVE
INST. PILOT OIL SUPPLY UNIT

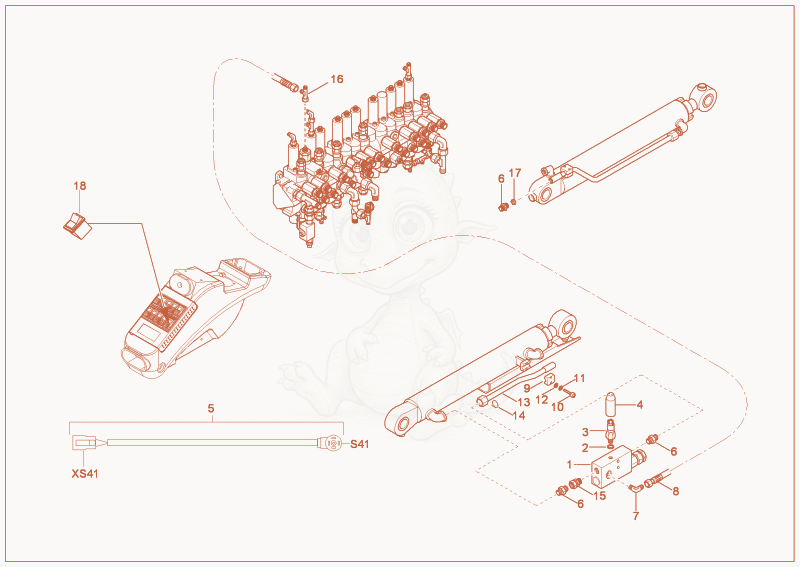

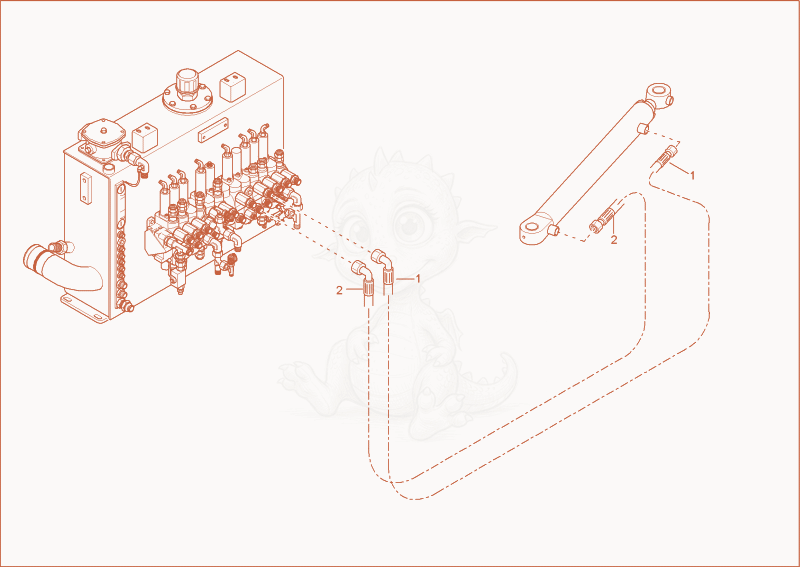

BOOM OFFSET CYLINDER INSTALLATION
DOZER BLADE CYLINDER INSTALLATION
ARMSYSTEM INSTALLATION
GRAB EQUIPMENT (OPTION)
GRAB EQUIPMENT BALL VALVE (OPTION)
HAND LEVERS INSTALLATION
INST. HAND LEVERS (OPTION)

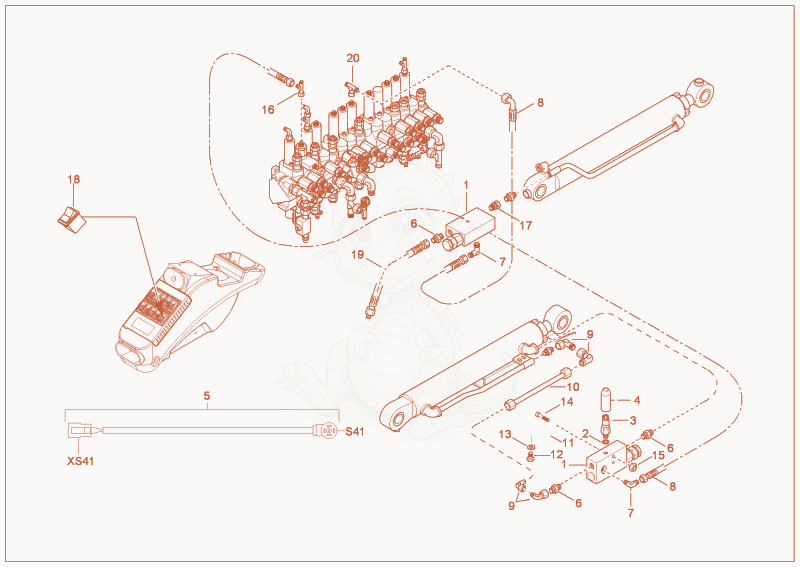

INSTALLATION PILOT OPPERATED CHECK VALVE

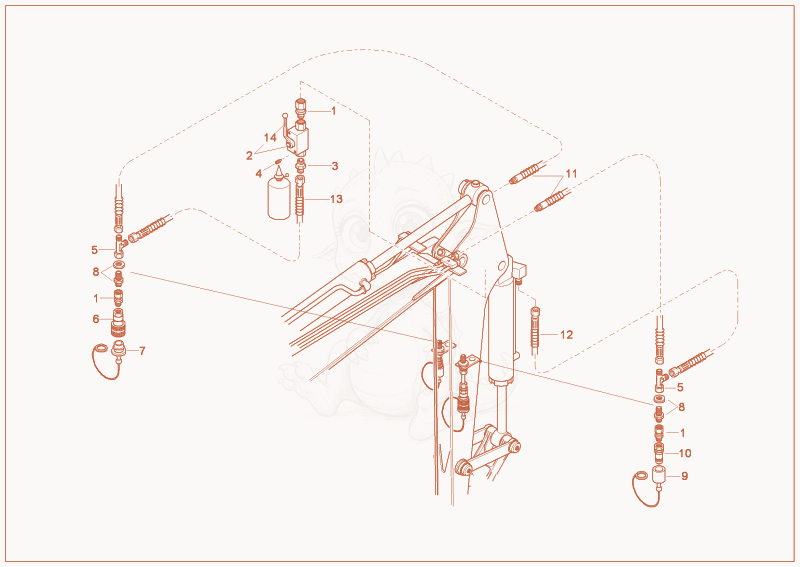

ELECTRICAL AUXILIARY FUNCTION (OPTION)
stalling load warning g
stalling load warning g
overload warning f
overload warning f
WIRE HARNESS 1
WIRE HARNESS 2
WIRE HARNESS 3
relay case
INSTALLATION RELAIS BOX

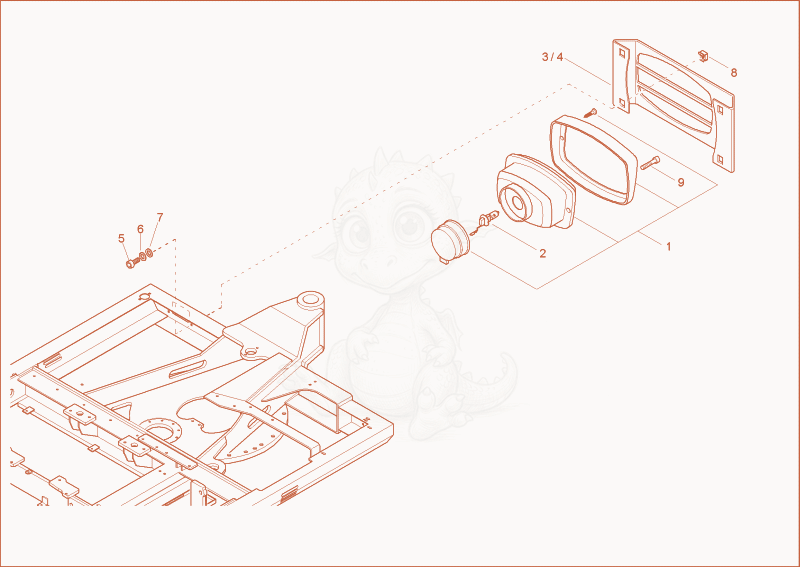

CHASSIS HEADLIGHT
HEADLIGHTS

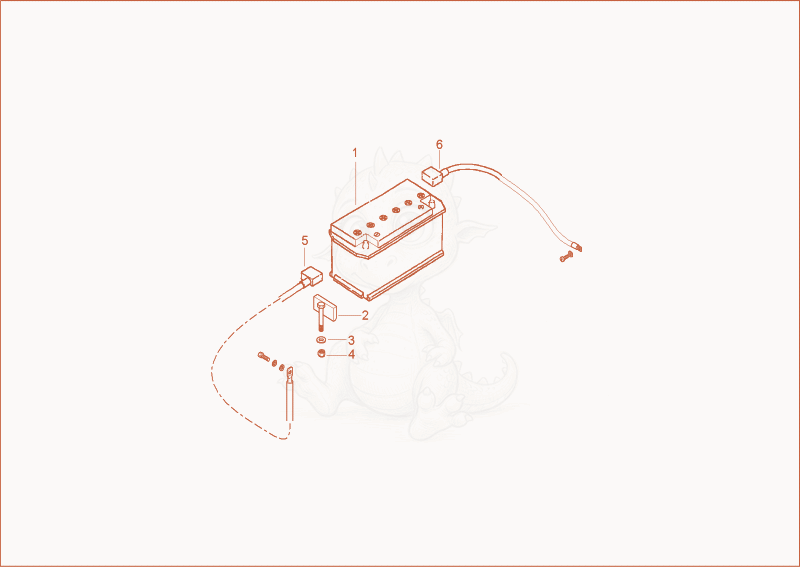

battery
horn
tools

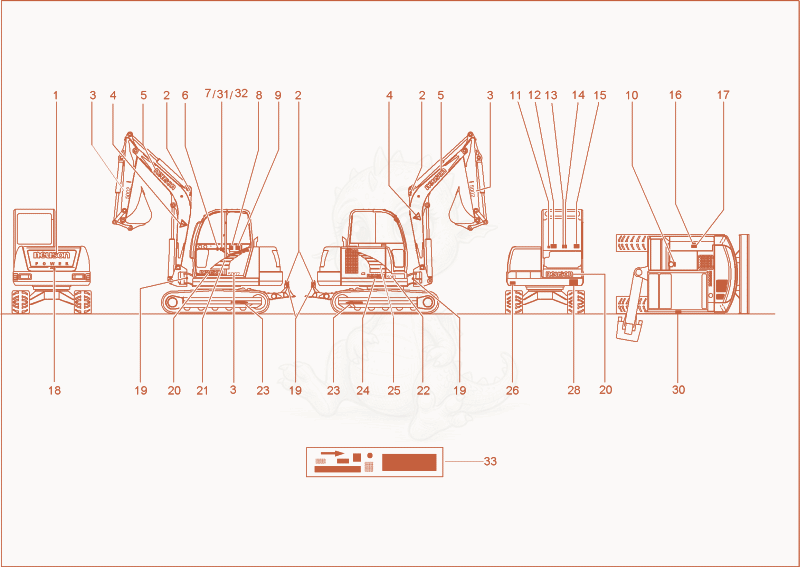

sticker
QUICK-HITCH COUPLER
bucket
bucket QHS
ditching bucket
ditching bucket QHS
tilting bucket
BUCKET OFFSET (DIPPER STICK LONG)
tilting bucket QHS
BUCKET OFFSET (DIPPER STICK LONG)
swivel bucket cylinder
swivel bucket cylinder
QHS console
overview accessory kits
service kit
