Neuson 5002RD

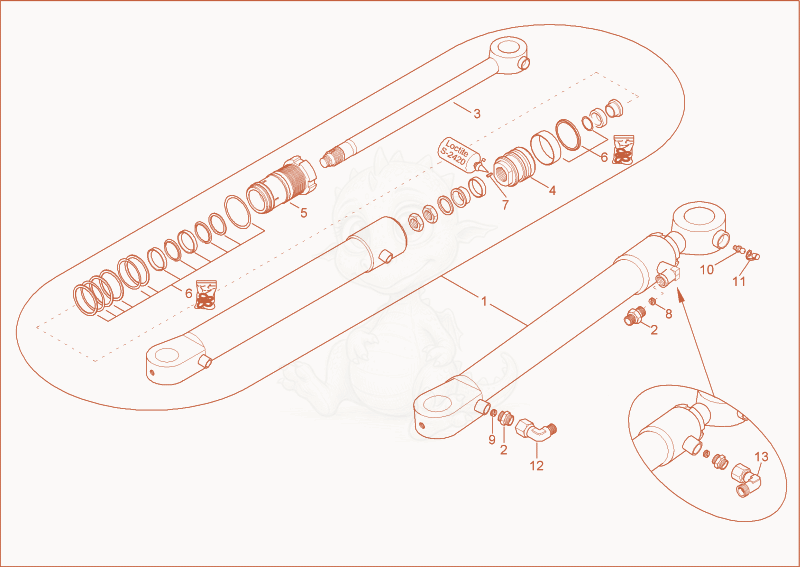

5002RD boom offset cylinder Diagram

Exploded parts diagram of the boom offset cylinder of a Wacker Neuson 5002RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000186495
    $1,854.81
    Boomoffsetcylinderez53 1000186495×1
  • 21000015493Not stocked
    screw joint×2
  • 31000074371
    $328.13
    Pistonrod 1000074371×1
  • 41000012633
    $89.36
    PISTON - 1000012633×1
  • 51000074381
    $169.16
    Guidebushing 1000074381×1
  • 61000074520
    $329.70
    cylinder seal kit - 1000074520×1
  • 71000015374Not stocked
    thread pin×1
  • 81000073795Not stocked
    throttle×1
  • 91000019595Not stocked
    throttle×1
  • 101000015476Not stocked
    grease nipple×1
  • 111000015480Not stocked
    cap grease nipple×1
  • 121000000573Not stocked
    screw joint×1
  • 131000000573Not stocked
    screw joint×1
