Neuson 5002RD

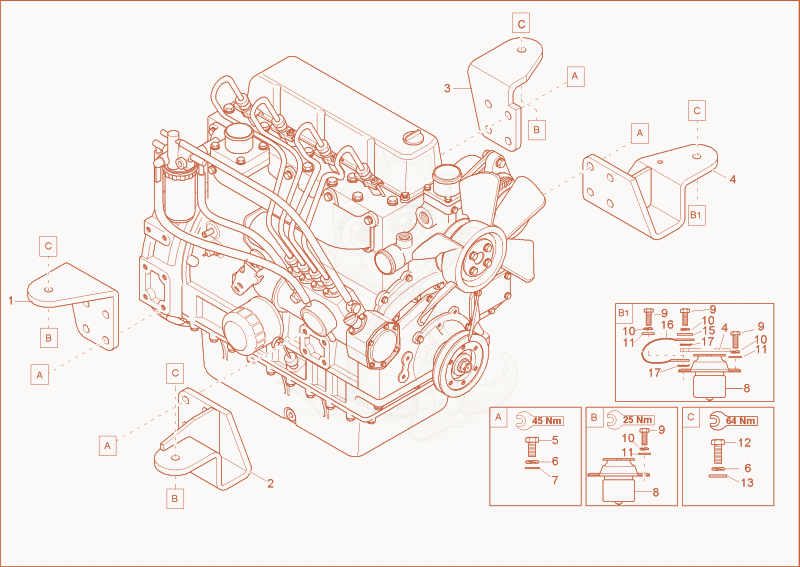

5002RD Engine bedding Diagram

Exploded parts diagram of the Engine bedding of a Wacker Neuson 5002RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000094234
    $17.78
    MOUNTING BRACKET - 1000094234×1
  • 21000020025Not stocked
    mounting bracket×1
  • 31000020027Not stocked
    mounting bracket×1
  • 41000020026Not stocked
    mounting bracket×1
  • 51000085468
    $0.42
    cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×16
  • 61000015438Not stocked
    lock washer×20
  • 71000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×16
  • 81000004321
    $44.81
    hydro.bearing - 1000004321×4
  • 91000013008Not stocked
    hex screw×8
  • 101000015437Not stocked
    lock washer×8
  • 111000015431Not stocked
    washer×7
  • 121000015367Not stocked
    hex screw×4
  • 131000015434Not stocked
    washer×4
  • 151000013027Not stocked
    washer×1
  • 161000069009Not stocked
    earth strap×1
  • 171000095355
    $0.10
    washer A8,4 A2C - 1000095355×2
