Neuson 5002RD

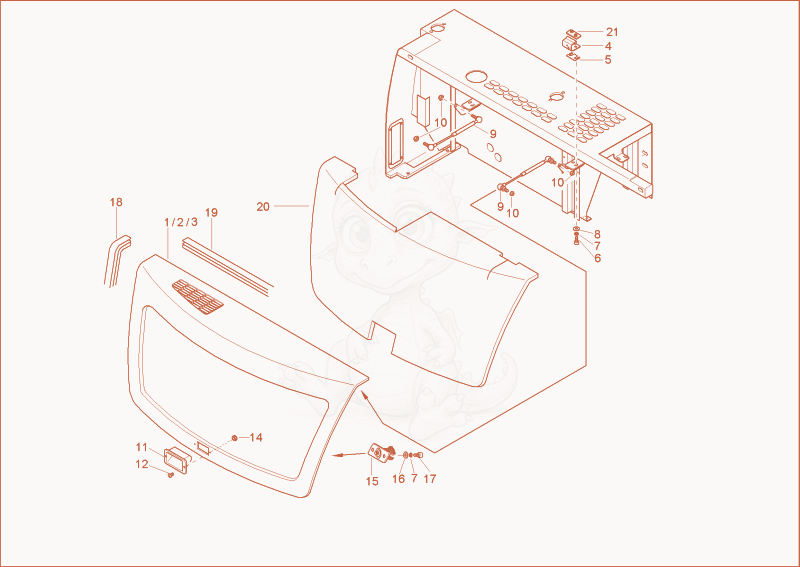

5002RD engine hood Diagram

Exploded parts diagram of the engine hood of a Wacker Neuson 5002RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000072450Not stocked
    engine hood×1
  • 21000072451Not stocked
    engine hood×1
  • 31000072452Not stocked
    engine hood×1
  • 41000012313Not stocked
    valve cover hinge×2
  • 51000071501Not stocked
    plate×1
  • 61000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×4
  • 71000015437Not stocked
    lock washer×6
  • 81000015431Not stocked
    washer×4
  • 91000094094Not stocked
    gas strut×2
  • 101000085581
    $1.51
    HEXAGON NUT - 1000085581×4
  • 111000012844Not stocked
    tray handle×1
  • 121000082389
    $0.85
    COUNTERSUNK SCREW - 1000082389×2
  • 141000085580
    $0.72
    hexagon nut - 1000085580×2
  • 151000012843Not stocked
    locking upper part×1
  • 161000015431Not stocked
    washer×2
  • 171000019136Not stocked
    hex screw×2
  • 181000098197
    $18.72
    RUBBER PROFILE - 1000098197×2.65
  • 191000098198
    $19.56
    RUBBER PROFILE - 1000098198×1.3
  • 201000072584Not stocked
    bonnet insulating mat×1
  • 211000012314Not stocked
    hinge plate×2
