APT4S Pump w/Skid

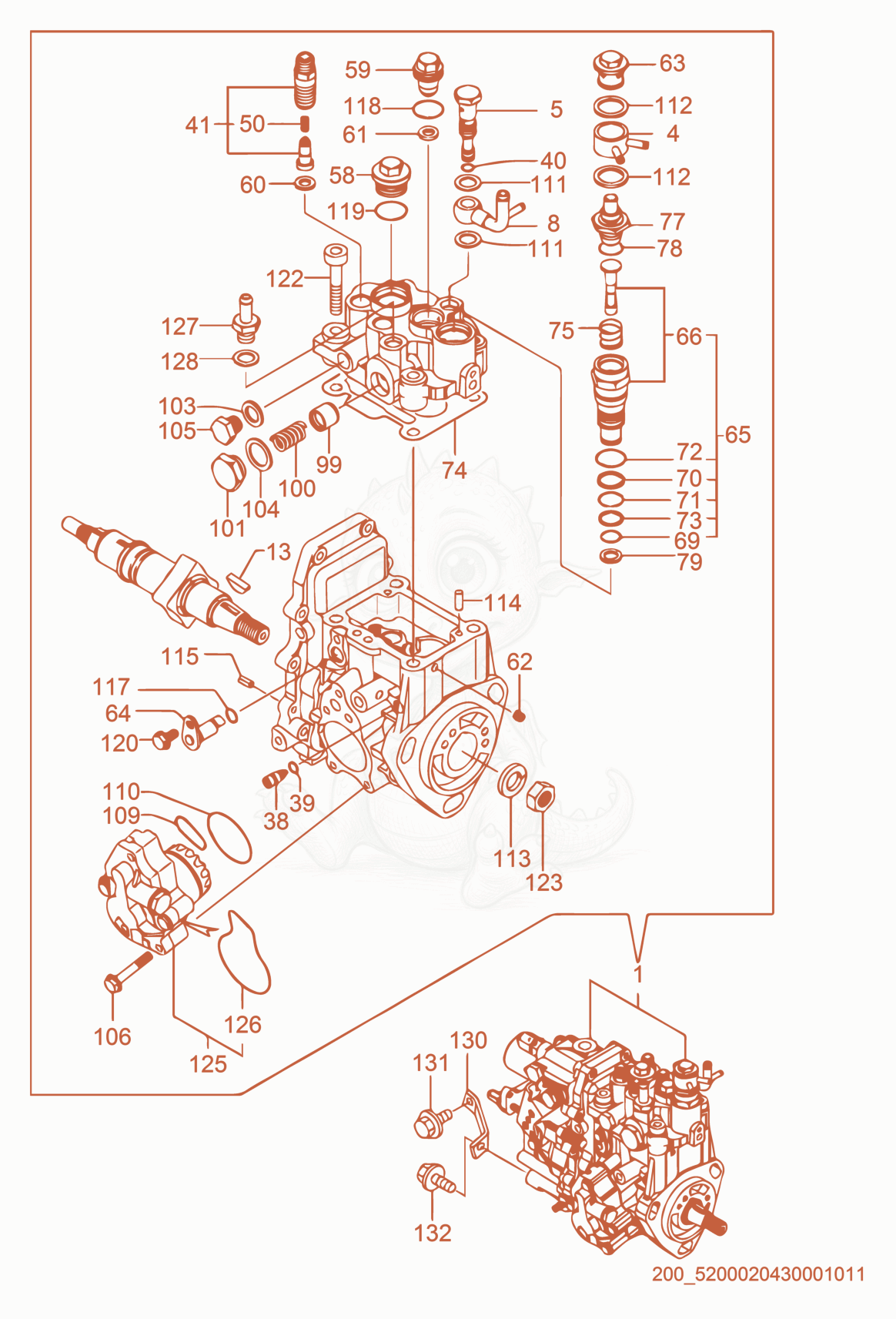

APT4S Fuel Pump Diagram
- 15200020131Not stockedInjection pump×1
- 45200020132Not stockedJoint×1
- 55200020133Not stockedJoint×1
- 65200020134Not stockedJoint×1
- 135200020136Not stockedStopper×1
- 385200020136Not stockedStopper×1
- 395200020137Not stockedO-Ring×1
- 405200020137Not stockedO-Ring×1
- 415200020138Not stockedValve assembly×1
- 505200020139Not stockedSpring×4
- 585200020140Not stockedPlug×1
- 595200020141Not stockedPlug×1
- 605200020142Not stockedGasket×4
- 615200020142Not stockedGasket×1
- 625200020144Not stockedPlug×1
- 635200020145Not stockedPlug×1
- 645200020146Not stockedLever×1
- 655200020147Not stockedTimer Set×1
- 665200020148Not stockedTimer module×1
- 695200020149Not stockedO-Ring×1
- 705200020150Not stockedCollar ring×1
- 715200020151Not stockedO-Ring×1
- 725200020152Not stockedO-Ring×1
- 735200020153Not stockedCollar ring×1
- 745200020143Not stockedGasket×1
- 755200020154Not stockedSpring×1
- 775200020155Not stockedElement×1
- 785200020156Not stockedO-Ring×1
- 795200020157Not stockedGasket×1
- 995200020158Not stockedPiston×1
- 1005200020159Not stockedSpring×1
- 1035200020161Not stockedWasher×1
- 1045200020162Not stockedWasher×1
- PLUG - 5000085565×1
- 1065200020164Not stockedBolt×4
- 1095200020165Not stockedO-Ring×1
- 1105200020166Not stockedO-Ring×1
- 1115200020161Not stockedWasher×2
- 1125200020162Not stockedWasher×2
- 1135200020015Not stockedSpring washer×1
- 1145200020168Not stockedPin×2
- 1155200020169Not stockedPin×2
- 1175200020170Not stockedO-Ring×1
- 1185200020171Not stockedO-Ring×1
- 1195200020152Not stockedO-Ring×1
- 1205200020173Not stockedBolt×1
- 1225200020174Not stockedBolt×4
- 1235200020016Not stockedLock nut×1
- 1255200020177Not stockedFuel pump cpl.×1
- 1265200020178Not stockedO-Ring×1
- 1275200020179Not stockedJoint×1
- 1285200020161Not stockedWasher×1
- 1305200020181Not stockedBracket×1
- 1315000073666Not stockedScrew×1
- BOLT M8X20,PLATED - 5000153980×1
