APT4S Pump w/Skid

APT4S Starter Diagram

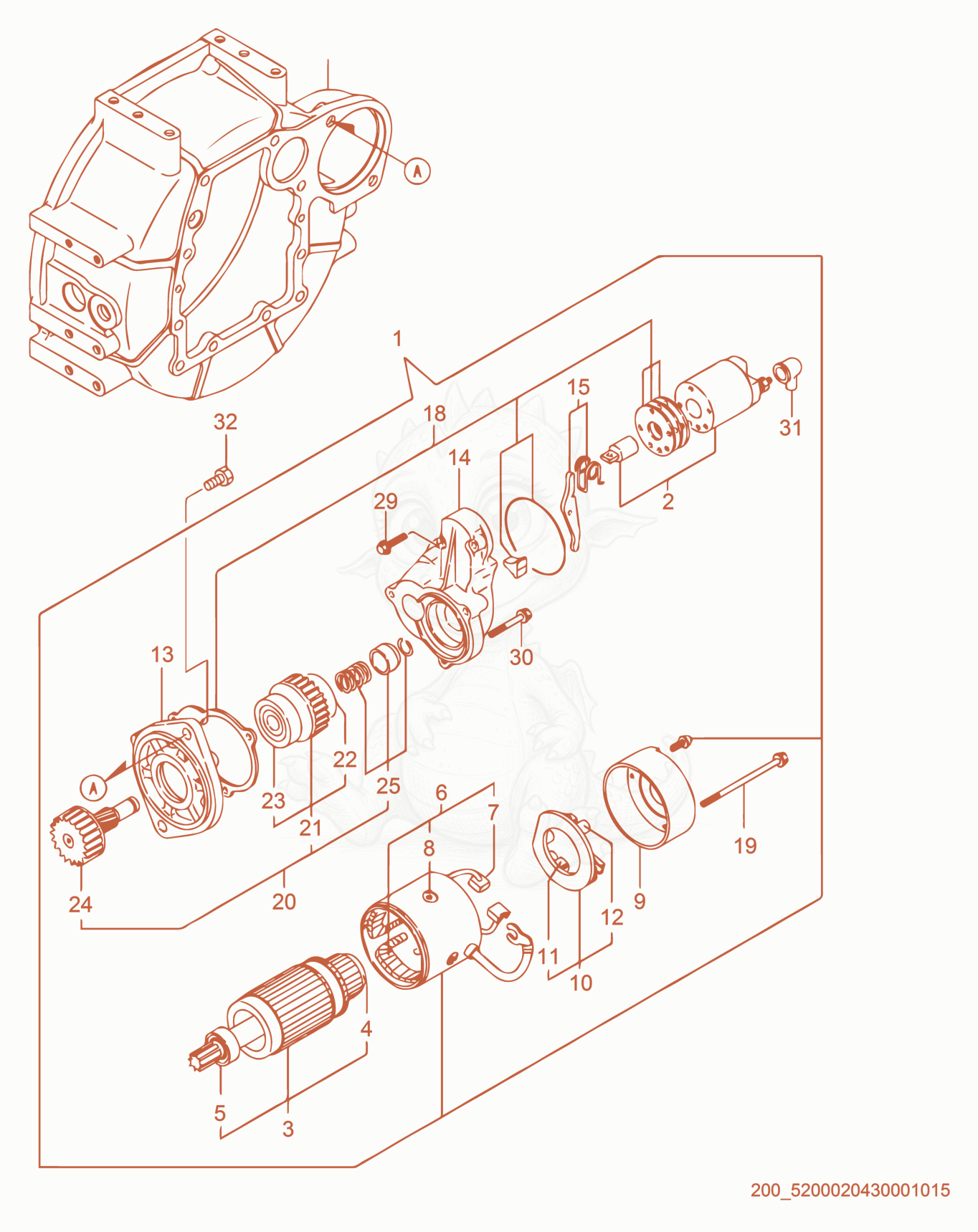

Exploded parts diagram of the Starter of a Wacker Neuson APT4S, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15200020233Not stocked
    Starter×1
  • 25200020234Not stocked
    Switch cpl.×1
  • 35200020235Not stocked
    Armature×1
  • 45200020236Not stocked
    Ball bearing×1
  • 55200020237Not stocked
    Ball bearing×1
  • 65200020238Not stocked
    Coil cpl.×1
  • 75200020239Not stocked
    Brush×2
  • 85200020240Not stocked
    Screw×4
  • 95200020241Not stocked
    Cover×1
  • 105200020242Not stocked
    Brush holder cpl.×1
  • 115200020239Not stocked
    Brush×2
  • 125200020243Not stocked
    Brush×4
  • 135200020244Not stocked
    Gear case×1
  • 145200020245Not stocked
    Starter housing×1
  • 155200020246Not stocked
    Lever cpl.×1
  • 185200020247Not stocked
    Dust Cover Kit×1
  • 195200020248Not stocked
    Bolt×2
  • 205200020249Not stocked
    Pinion cpl.×1
  • 215200020251Not stocked
    Clutch cpl.×1
  • 225200020252Not stocked
    Ball bearing×1
  • 235200020253Not stocked
    Ball bearing×1
  • 245200020254Not stocked
    Shaft×1
  • 255200020255Not stocked
    Pinion stopper set×1
  • 295200020256Not stocked
    Bolt×2
  • 305200020114Not stocked
    Bolt×3
  • 315200020258Not stocked
    Cover×1
  • 325200020259Not stocked
    Bolt×2
