APT4S Pump w/Skid

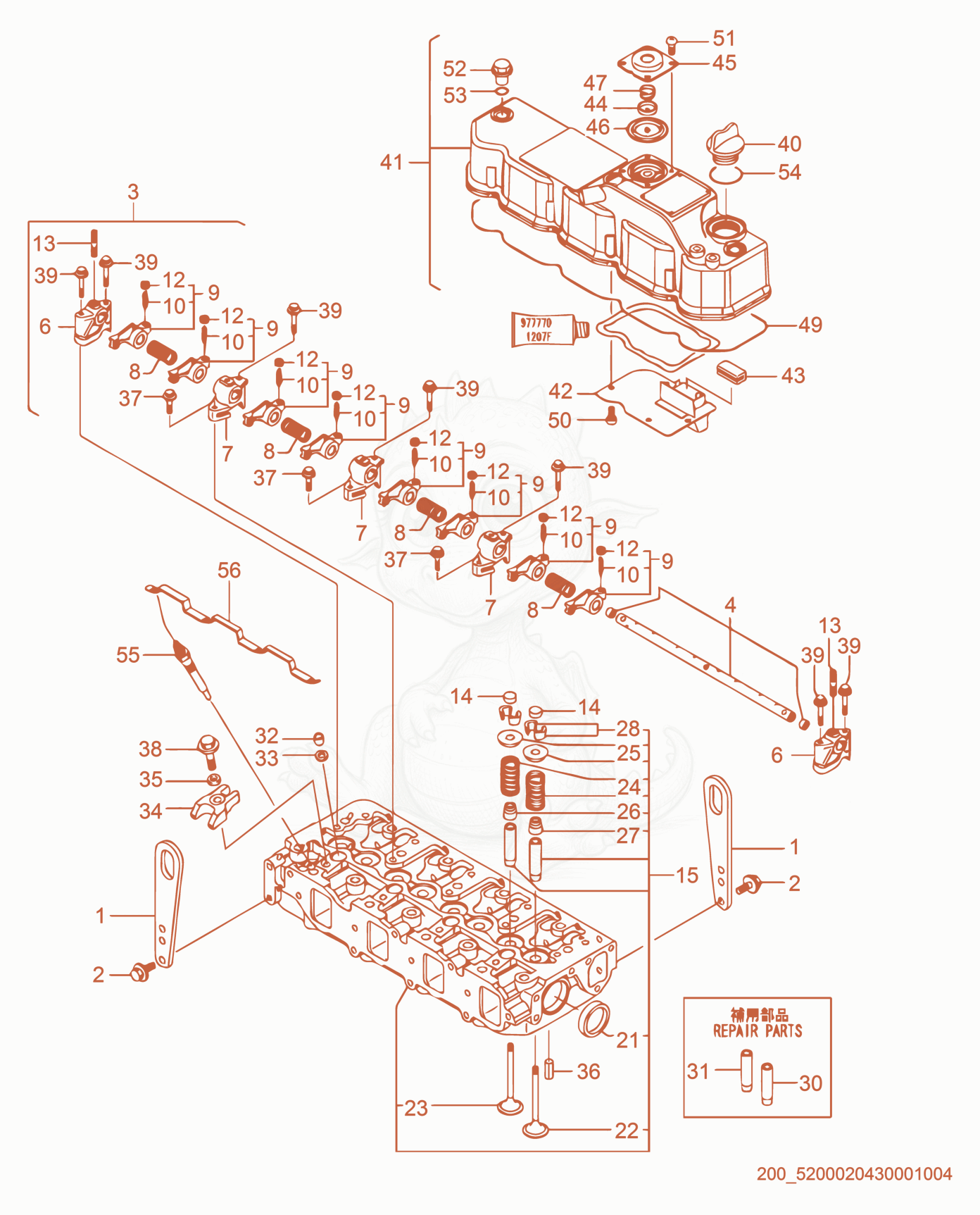

APT4S Cylinder Head/Cover Diagram
- 15200019884Not stockedBracket×2
- 35200019885Not stockedShaft cpl.×1
- 45200019886Not stockedRocker arm shaft×1
- 65200019887Not stockedRocker arm support×2
- 75200019888Not stockedRocker arm support×3
- 85200019889Not stockedSpring×4
- 95200019890Not stockedRocker arm×8
- 105200019891Not stockedAdjustment screw×8
- 125200019892Not stockedNut×8
- 135200019893Not stockedStud×3
- 145200019894Not stockedCap×8
- 155200019895Not stockedCylinder head cpl.×1
- 215200019896Not stockedPlug×2
- 225200019897Not stockedIntake valve×4
- 235200019898Not stockedExhaust valve×4
- 245200019899Not stockedValve spring×8
- 255200019900Not stockedRetainer×8
- 265200019901Not stockedSeal×4
- 275200019902Not stockedSeal×4
- 285200019903Not stockedCotter pin×8
- 305200019904Not stockedGuide×4
- 315200019905Not stockedGuide×4
- 325200019906Not stockedGuard×4
- 335200019907Not stockedBase×4
- 345200019908Not stockedNozzle retainer×4
- 355200019909Not stockedWasher×4
- 365200019910Not stockedPin×2
- 375200019878Not stockedHexagonal flange head screw×3
- SCREW M8 X 35,HEX.FLANGE - 5000085522×4
- 395200019883Not stockedHexagonal flange head screw×7
- 405200019854Not stockedCover×1
- 415200019913Not stockedCylinder head cover cpl.×1
- 425200019914Not stockedPlate×1
- 435200019915Not stockedBaffle×1
- 445200019916Not stockedPlate×1
- 455200019917Not stockedCover×1
- 465200019918Not stockedDiaphragm×1
- 475200019919Not stockedSpring×1
- 495200019920Not stockedCylinder head gasket×1
- 505200019921Not stockedHexagonal head cap screw×4
- 515200019921Not stockedHexagonal head cap screw×4
- 525200019922Not stockedKnob×3
- 535200019982Not stockedO-Ring×3
- 545200019861Not stockedO-Ring×1
- 555200019984Not stockedGlow plug×4
- 565200019985Not stockedConnector bracket×1
