BPU3050 REVERSIBLE VIBROPLATE

BPU3050 Fan-Starter Diagram

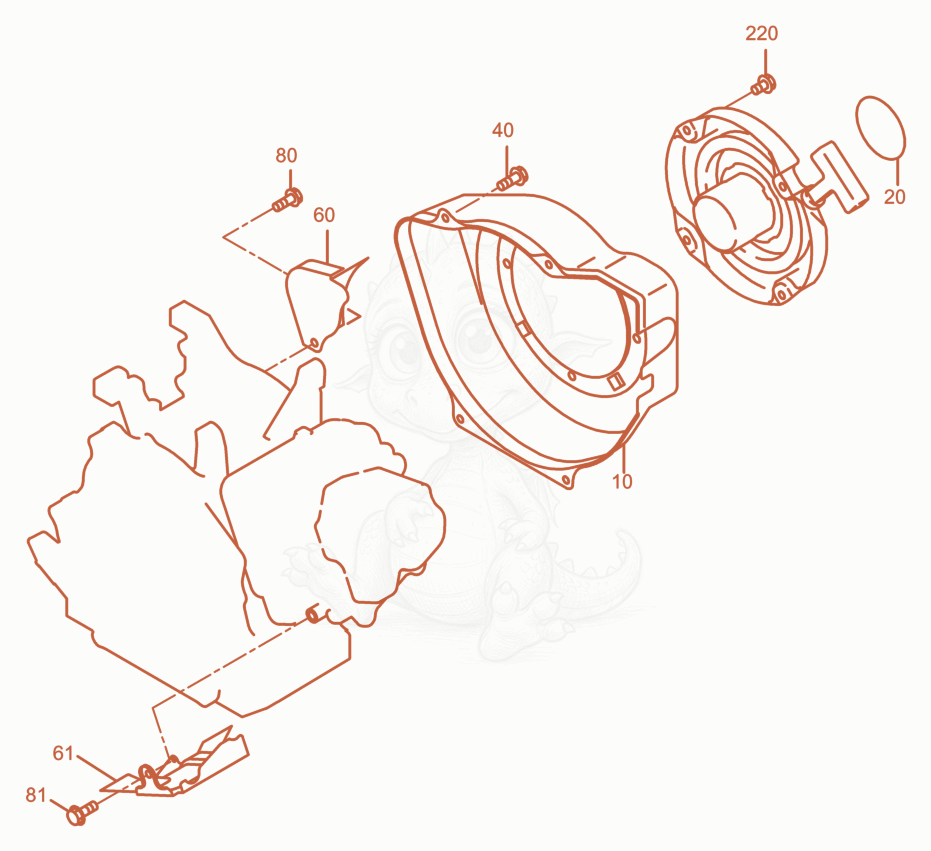

Exploded parts diagram of the Fan-Starter of a Wacker Neuson BPU3050, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105000156598
    $196.26
    HOUSING-BLOWER - 5000156598×1
  • 205000156599
    $6.88
    LABEL-WACKER - 5000156599×1
  • 405000053648
    $2.65
    SCREW M6 X 14,HEX.FLANGE - 5000053648×4
  • 605000156600
    $26.60
    BAFFLE-HOUSING,BLOWER - 5000156600×1
  • 615000156601
    $51.84
    BAFFLE-CYLINDER - 5000156601×1
  • 805000156602
    $0.51
    bolt - 5000156602×1
  • 815000053612Not stocked
    Screw×1
  • 2205000156645
    $2.46
    BOLT-FLANGE - 5000156645×4
