BPU3050 REVERSIBLE VIBROPLATE

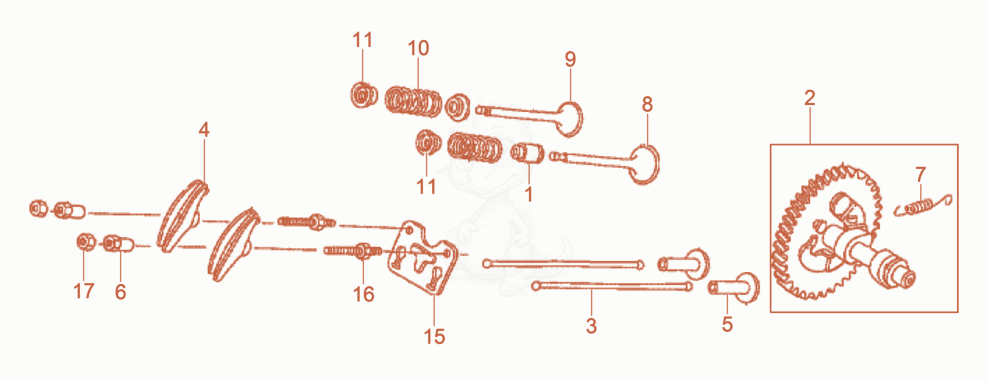

BPU3050 Camshaft Diagram
- SEAL-VALVE STEM - 5000151750×1
- Camshaft cpl. - 5100000378×1
- push rod - 5000217480×2
- ROCKER ARM-VALVE - 5000074675×2
- valve tappet - 5000074678×2
- PIVOT-ROCKER ARM - 5000070985×2
- SPRING-WEIGHT RETURN - 5000151028×1
- Valve-Intake - 5100000381×1
- Valve-Exhaust - 5100000383×1
- Spring - 5000217481×2
- Holder-spring - 5200000495×2
- SEAT-VALVE SPRING - 5000074659×1
- Plate - 5200000543×1
- STUD-ROCKER ARM PIVOT - 5000072778×2
- NUT 1/4-28,PIVOT ADJUSTMENT - 5000070984×2
