BPU3050 REVERSIBLE VIBROPLATE

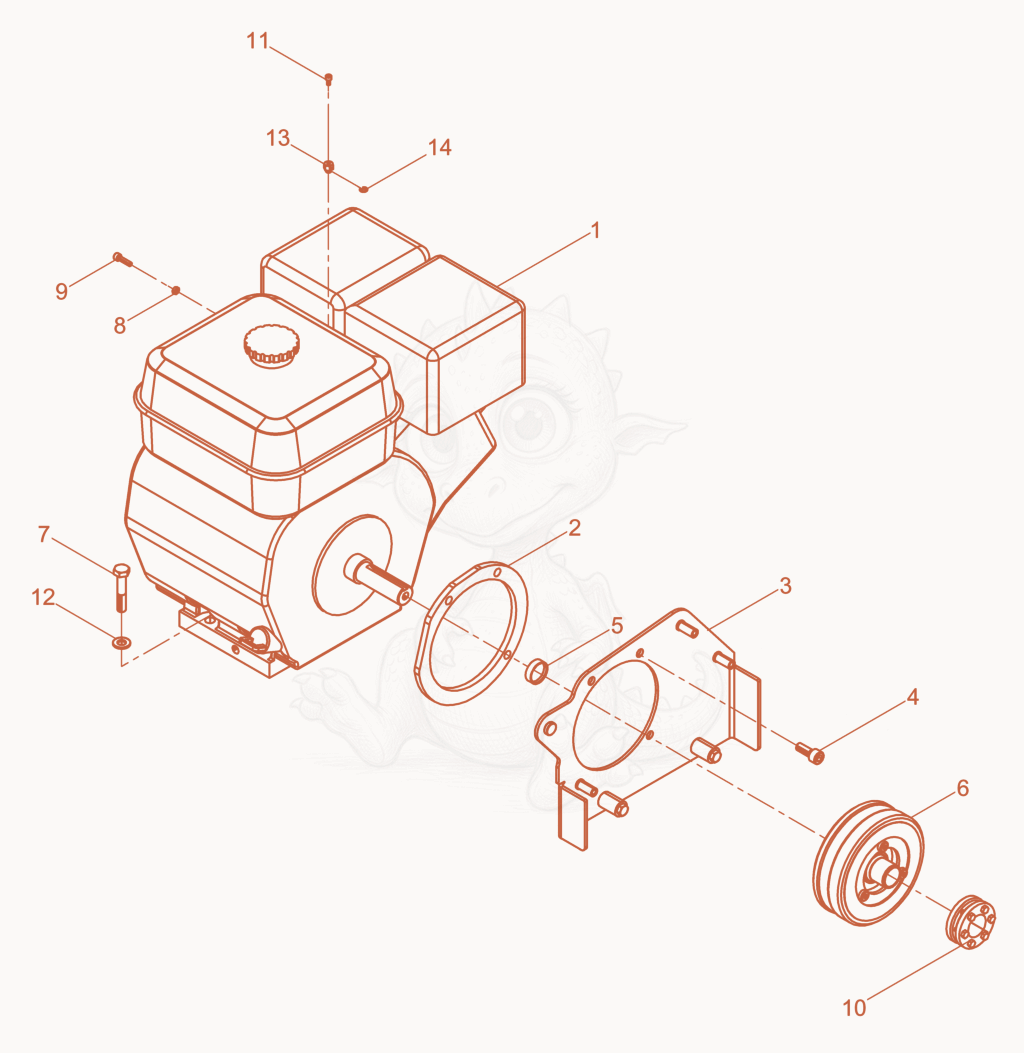

BPU3050 Engine complete Diagram

Exploded parts diagram of the Engine complete of a Wacker Neuson BPU3050, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000203529
    $2,128.73
    Engine Wm270, 9Hp, Bpu 5000203529×1
  • 15000220592
    $2,911.23
    Engine-Gas, BPU3050/3545 - 5000220592×1
  • 25000125940
    $47.00
    RING-BPU3050 - 5000125940×1
  • 35000220179
    $231.53
    PLATE-FIXING - 5000220179×1
  • 45000125943
    $4.25
    SCREW-BPU3050 - 5000125943×3
  • 55000125948
    $4.64
    RING-BPU3050 - 5000125948×1
  • 65000126185
    $838.81
    CLUTCH-CENTRIFUGAL,BPU3050 - 5000126185×1
  • 75000011437Not stocked
    Hexagonal head cap screw×4
  • 85000010879
    $0.03
    NUT-HEX,M5 8,ISO4032 - 5000010879×1
  • 95000017908
    $0.18
    SCREW M5 X 20 SOC.HD. - 5000017908×1
  • 105000108633
    $114.17
    ELEMENT-TIGHTENING - 5000108633×1
  • 115000011573
    $0.22
    SCREW M4 X 8 SOC.HD. - 5000011573×1
  • 125000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×4
  • 135000201961Not stocked
    Clamping piece×1
  • 145000201962Not stocked
    Lock washer×1
