BPU3545A-VIBROPLATE

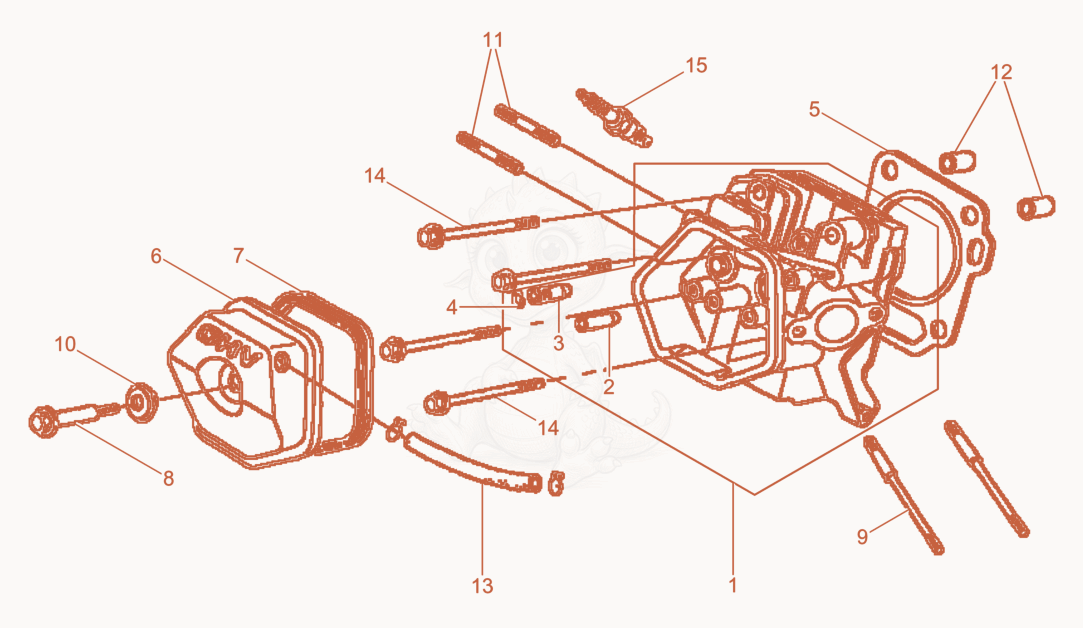

BPU3545AUS Cylinder head Diagram

Exploded parts diagram of the Cylinder head of a Wacker Neuson BPU3545AUS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000217467
    $147.19
    CYLINDER HEAD - 5000217467×1
  • 25000110602
    $28.47
    GUIDE-VALVE,INTAKE - 5000110602×1
  • 35000074648
    $26.35
    GUIDE-EXHAUST VALVE - 5000074648×1
  • 45000074660
    $2.85
    RET.RING 11.9MM,FORM C - 5000074660×1
  • 55000217468
    $26.28
    GASKET-CYLINDER HEAD - 5000217468×1
  • 65000089273
    $77.37
    COVER-CYLINDER HEAD - 5000089273×1
  • 75000074645
    $15.43
    GASKET-CYLINDER HEAD COVER - 5000074645×1
  • 85000074655
    $8.04
    BOLT-CYL.HEAD COVER RETAINER - 5000074655×1
  • 95000074651
    $10.66
    STUD M8 X 127 - 5000074651×2
  • 105000074657
    $7.71
    WASHER - 5000074657×1
  • 115000217497Not stocked
    Stud bolt×2
  • 125000074652
    $3.70
    PIN 12 X 20,DOWEL - 5000074652×2
  • 135000074646Not stocked
    Hose piece×1
  • 145000074647
    $4.94
    SCREW M10 X 80,HEX.FLANGED - 5000074647×4
  • 155000150914
    $3.67
    SPARK PLUG-(BPR6ES)NKS X-5000203788 - 5000150914×1
