BPU3545A-VIBROPLATE

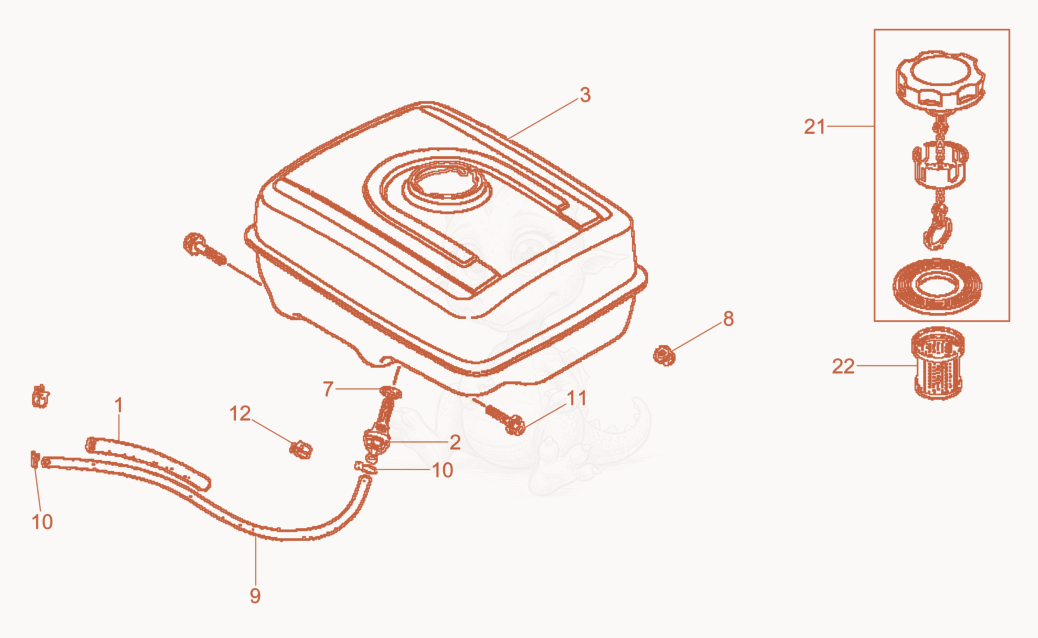

BPU3545AUS Fuel Tank Diagram

Exploded parts diagram of the Fuel Tank of a Wacker Neuson BPU3545AUS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000081764
    $6.03
    hose cover - 5000081764×1
  • 25000071083
    $14.92
    FILTER-FUEL,INTANK - 5000071083×1
  • 35000217488Not stocked
    Fuel tank cpl.×1
  • 75000208616Not stocked
    O-Ring×1
  • 85000074738
    $1.45
    NUT M8,HEX.FLANGE - 5000074738×2
  • 95000217496
    $27.21
    HOSE-FUEL - 5000217496×1
  • 115000074751
    $2.70
    SCREW M8 X 25,HEX.FLANGED - 5000074751×2
  • 125000208617
    $3.39
    CLAMP-TUBE - 5000208617×2
  • 215000213409Not stocked
    Flywheel×1
  • 225000217453
    $13.78
    FILTER-FUEL - 5000217453×1
