BPU3545A-VIBROPLATE

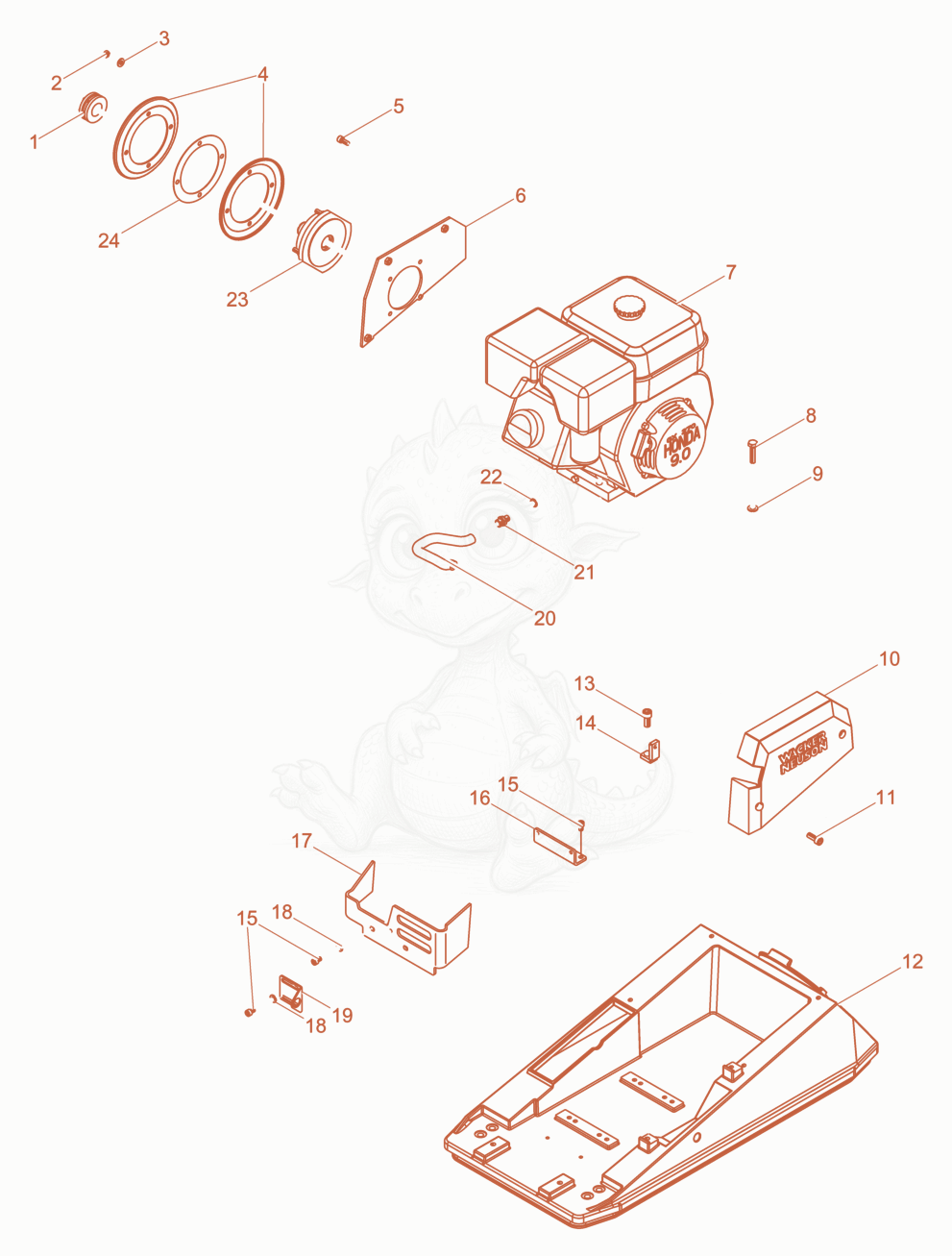

BPU3545AUS Upper Mass Diagram
- ELEMENT-TIGHTENING - 5000108633×1
- NUT M8 8,HEX - 5000010882×4
- WASHER-LOCK B8 - 5000033198×4
- PULLEY-V BELT,HALF - 5000109333×2
- SCREW 5/16-24 X 3/4,SOC.HD. - 5000064252×4
- Plate - 5000220151×1
- Engine-Gas, BPU3050/3545 - 5000220592×1
- SCREW M10 X 45 HX.HD. - 5000011436×4
- WASHER B10.5 FLAT - 5000010621×4
- COVER-LEFT - 5000108621×1
- SCREW M10 X 25 SOC.HD. - 5000011535×2
- CONSOLE-UPPER MASS,BPU3545A - 5000202014×1
- SCREW M12 X 40 SOC.HD. - 5000011527×2
- Angle - 5000108623×2
- SCREW M8X12 SOC.HD - 5000013574×5
- Angle - 5000109391×1
- Plate - 5000109384×1
- WASHER-FLAT,M8,ZINC - 5000010622×3
- DRAIN-COMPLETE,OIL - 5000097896×1
- COUPLING-HOSE - 5000125152×1
- FITTING - 5000125155×1
- SEAL-RING 12 X 18 - 5000013444×1
- CLUTCH-CENTRIFUGAL - 5000201039×1
- WASHER-DISTANCE - 5000109332×4
