BPU3545A-VIBROPLATE

BPU3545AUS Cylinder housing Diagram

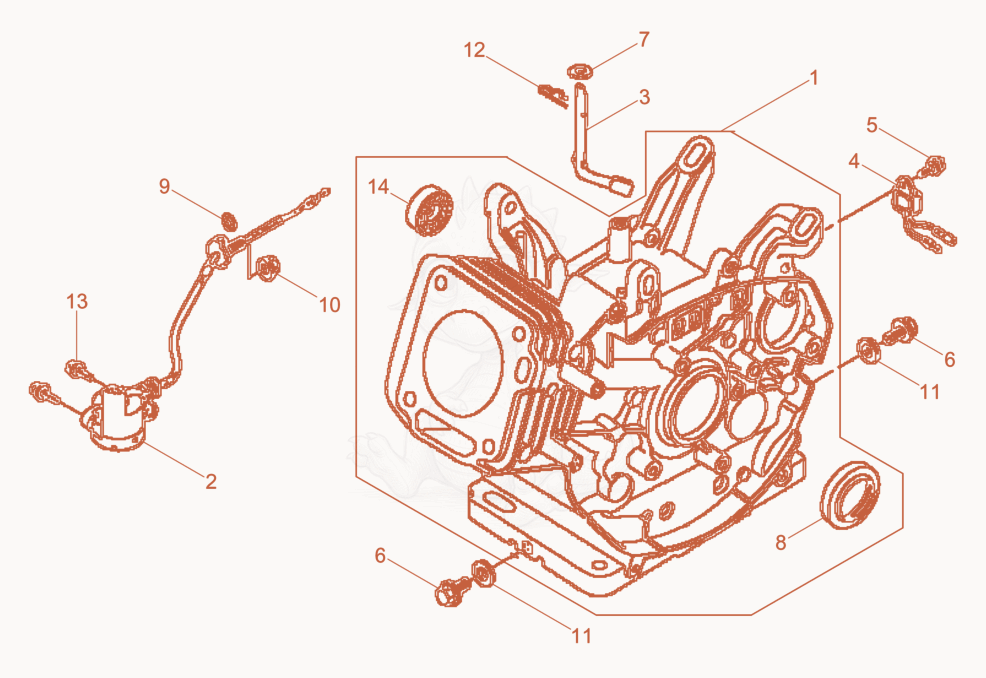

Exploded parts diagram of the Cylinder housing of a Wacker Neuson BPU3545AUS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000217466
    $1,135.68
    Crankcase - 5000217466×1
  • 25000217492
    $81.85
    Switch oil safety - 5000217492×1
  • 35000074641
    $14.98
    Shaft - 5000074641×1
  • 45000125834
    $59.60
    FILTER-ELECTRONIC (X-5100005313) - 5000125834×1
  • 55000053990
    $2.33
    SCREW M6 X 12,HX.FLANGE HD. - 5000053990×1
  • 65000115949Not stocked
    Drain screw×2
  • 75000074656
    $2.66
    Washer - 5000074656×1
  • 85000217495
    $16.17
    SEAL-ROTARY SHAFT 25 X 41 X 6 - 5000217495×1
  • 95000208616Not stocked
    O-Ring×1
  • 105000072332
    $4.18
    NUT M10,HEX.FLANGE - 5000072332×1
  • 115000053994
    $1.84
    SEAL-RING 12MM - 5000053994×2
  • 125000110110
    $1.84
    PIN-COTTER 10MM - 5000110110×1
  • 135000072333
    $2.43
    SCREW M6 X 12,HX.FLANGE - 5000072333×2
  • 145000074640
    $22.77
    BEARING-RADIAL BALL,6202 - 5000074640×1
