Drive Unit D3.5GD2

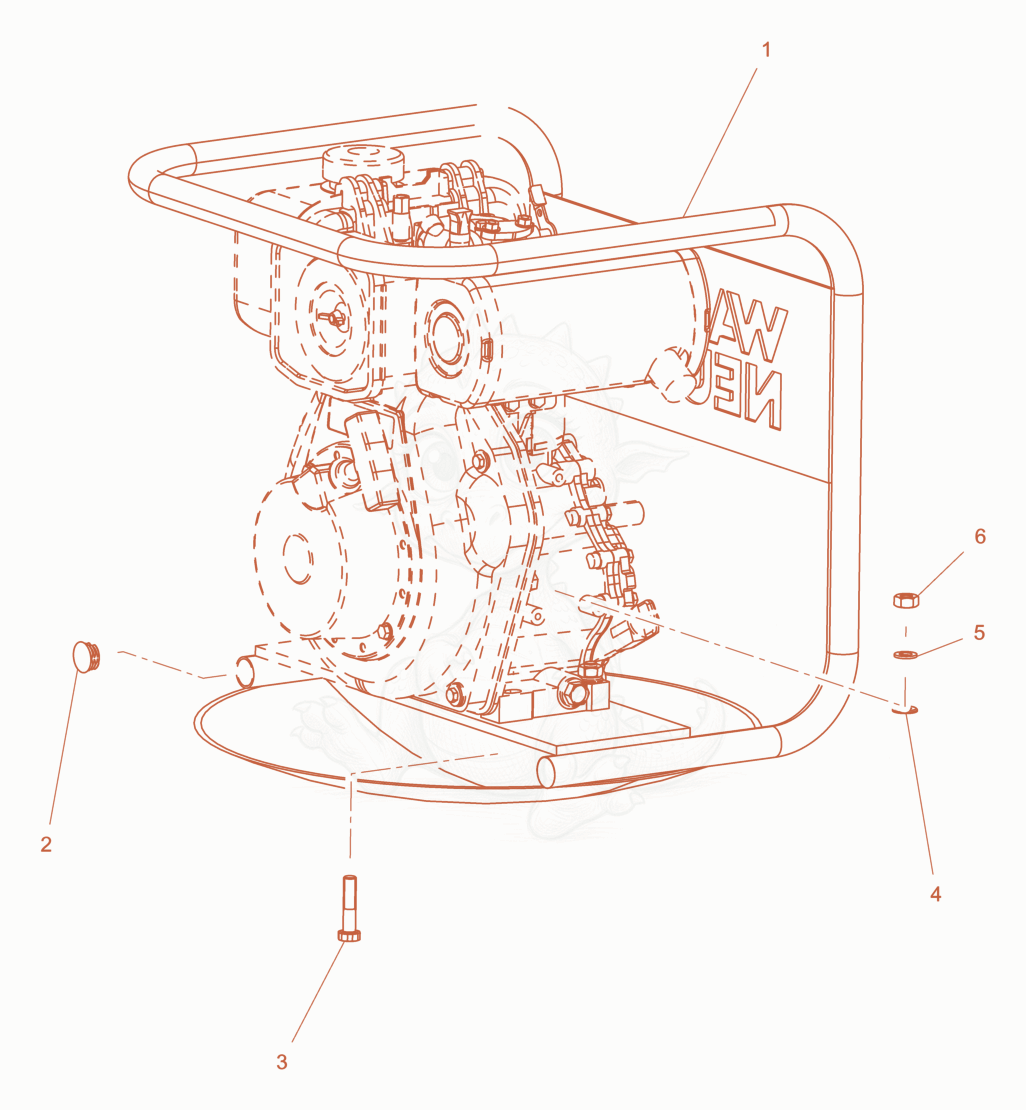

D3.5GD2 Frame for D3.5Y Diagram

Exploded parts diagram of the Frame for D3.5Y of a Wacker Neuson D3.5GD2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000402373Not stocked
    Frame weldment×1
  • 25002900102
    $1.06
    PLUG - 5002900102×2
  • 35000011319
    $0.52
    SCREW M10 X 45 HX.HD - 5000011319×4
  • 45000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×4
  • 55000010644
    $0.04
    WASHER-LOCK B10 - 5000010644×4
  • 65000010883
    $0.29
    NUT M10 8,HEX - 5000010883×4
