Drive Unit D3.5GD2

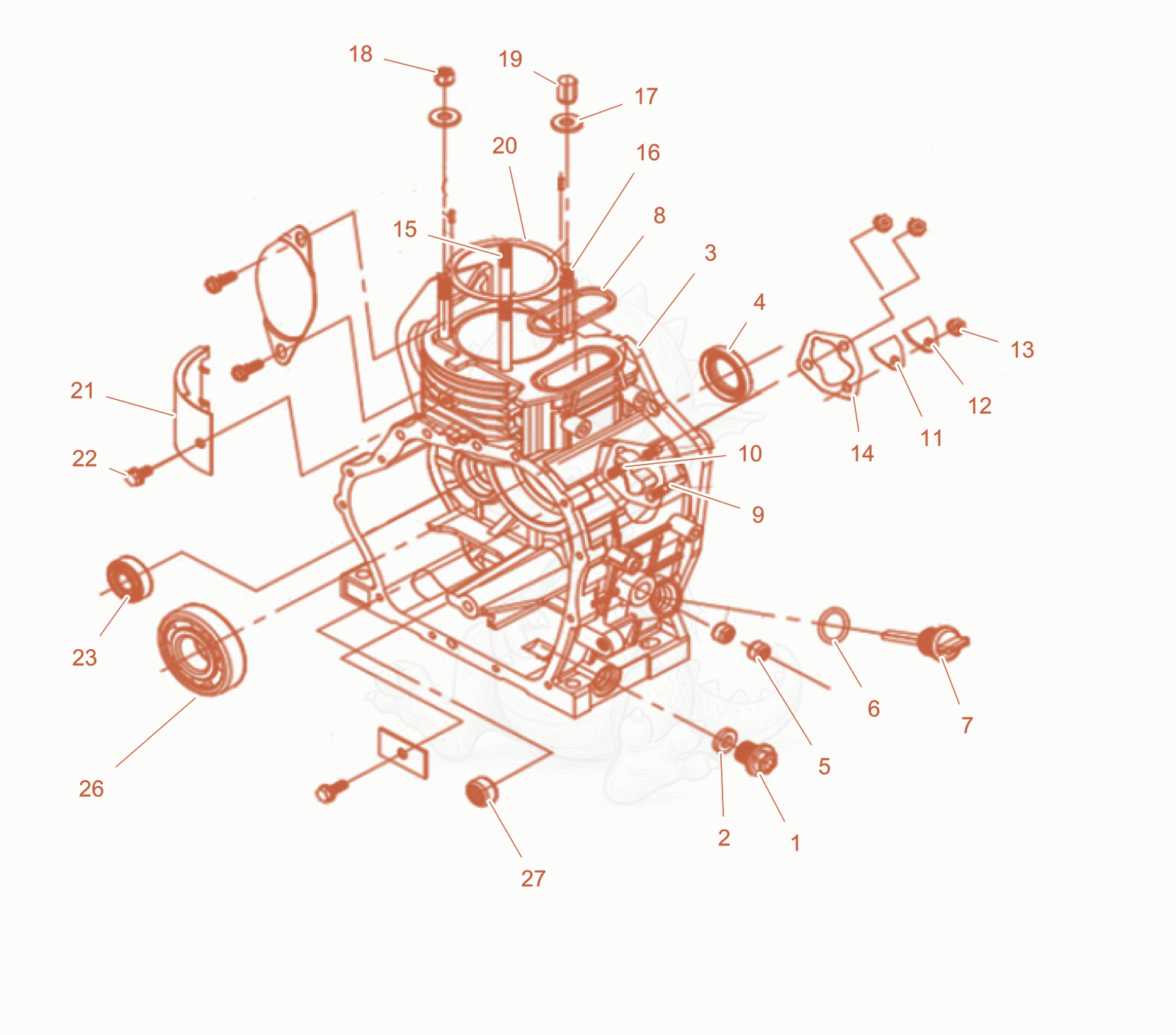

D3.5GD2 Crankcase Assy Diagram
- 15100084393Not stockedSealing plug screw×1
- 25100084392Not stockedFlat washer×1
- 35100085938Not stockedCrankcase body×1
- 45100085904Not stockedOil seal×1
- 55100085903Not stockedBearing×2
- 65100085937Not stockedSeal ring×1
- 75100085902Not stockedOil rule×1
- 85100085901Not stockedSeal ring×1
- 95100085900Not stockedStud×1
- 105100085899Not stockedStud×2
- 115100085898Not stockedFuel Pump Seal×1
- 125100085897Not stockedFuel Pump Cover×1
- HEXAGON NUT WITH FLANGE - 5000408515×3
- 145100084438Not stockedFuel Pump Gasket(0.2)×1
- 145100084437Not stockedFuel Pump Gasket(0.3)×1
- 145100084436Not stockedFuel Pump Gasket(0.4)×1
- 155100085912Not stockedStud×2
- 165100085911Not stockedStud×2
- 175100085910Not stockedFlat washer×4
- 185100085909Not stockedCylinder end nut×2
- 195100085908Not stockedCylinder end nut×2
- 205100085905Not stockedGasket for cylinder head (0.6)×1
- 205100085906Not stockedGasket for cylinder head (0.4)×1
- 205100085907Not stockedGasket for cylinder head×1
- 215100085920Not stockedAir deflector×1
- Hexagon bolt with flange - 5000408443×1
- Bearing - 5000408575×1
- 265100085919Not stockedLocation pin×2
- 275100085918Not stockedBearing×1
