Drive Unit D3.5GD2

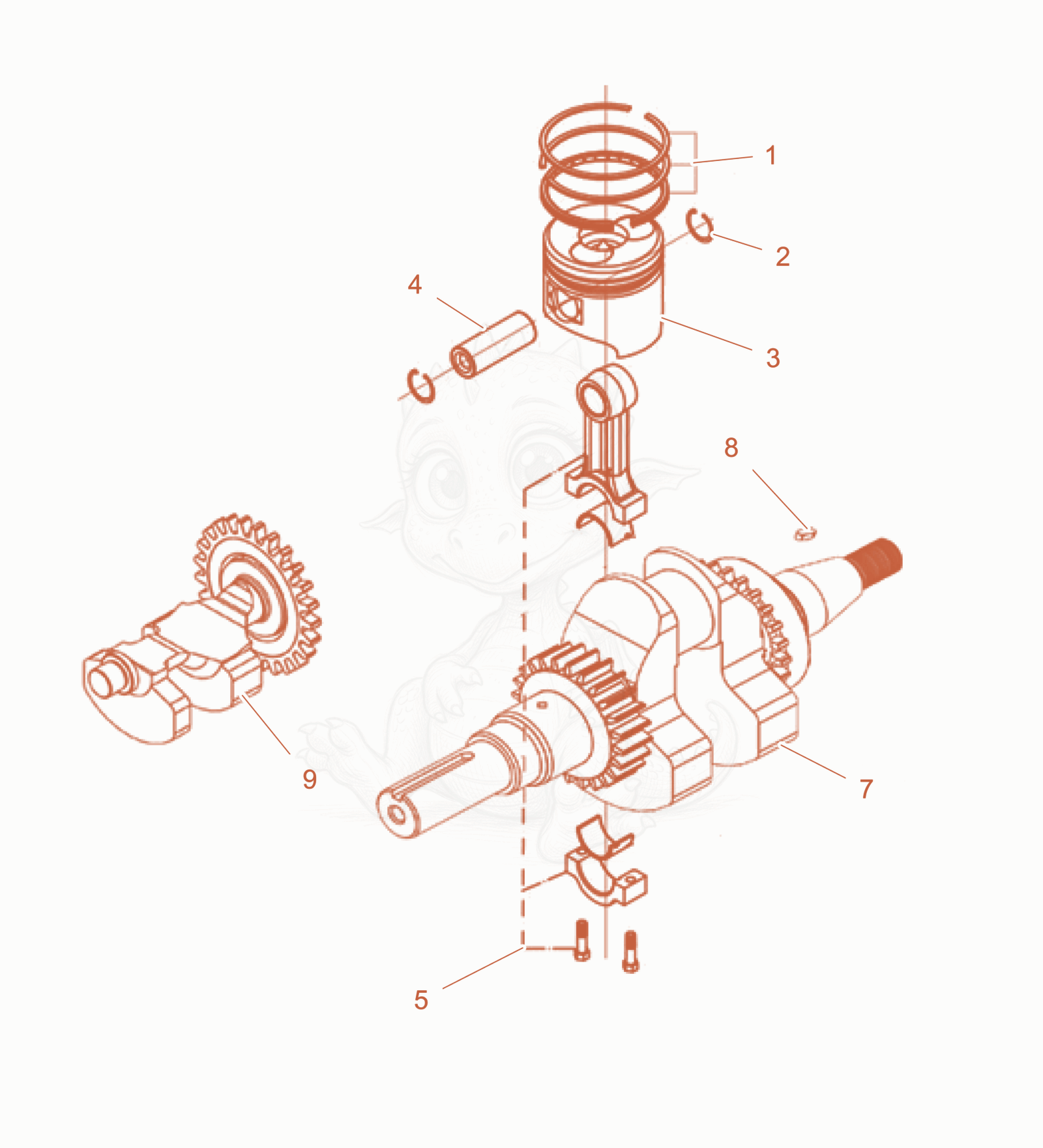

D3.5GD2 Connecting rods and Crankshaft Diagram

Exploded parts diagram of the Connecting rods and Crankshaft of a Wacker Neuson D3.5GD2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100085941Not stocked
    Piston ring combination×1
  • 25100085940Not stocked
    Circlip×2
  • 35100085976Not stocked
    Piston×1
  • 45100085975Not stocked
    Piston pin×1
  • 55100085974Not stocked
    Connecting rod×1
  • 75100085973Not stocked
    crankshaft×1
  • 85100085972Not stocked
    Key×1
  • 95100085971Not stocked
    Balancing shaft×1
