DPU100-70Le Reversible Vibratory Plate

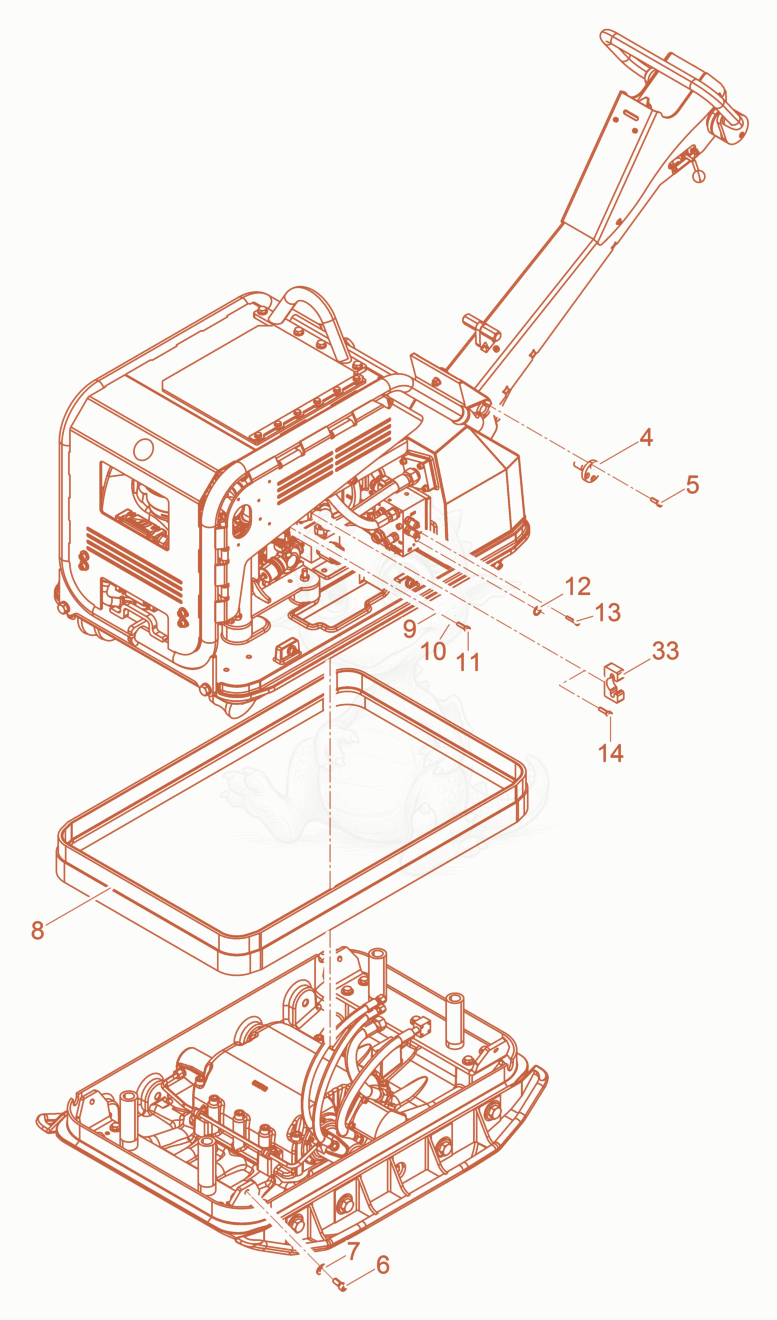

DPU100-70LES Vibration Plate Diagram

Exploded parts diagram of the Vibration Plate of a Wacker Neuson DPU100-70LES, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 45000220420
    $141.75
    Axle - 5000220420×1
  • 55000043393Not stocked
    Cheese head screw×8
  • 65000011530Not stocked
    Cheese head screw×4
  • 75000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×4
  • 85000129780
    $1,115.86
    GUARD-RUBBER SKIRT - 5000129780×1
  • 95000128746
    $2.96
    BUSHING - 5000128746×15
  • 105000010374
    $0.22
    WASHER B8.4 FLAT - 5000010374×15
  • 115000011541
    $1.06
    SCREW M8 X 30 SOC.HD. - 5000011541×15
  • 125000019132
    $0.62
    O-RING 20 X 2.5-70 SH - 5000019132×1
  • 135000011548
    $0.31
    SCREW M6 X 35 SOC.HD. - 5000011548×4
  • 145000017908
    $0.18
    SCREW M5 X 20 SOC.HD. - 5000017908×2
  • 155000220305
    $1,053.97
    Cable harness - 5000220305×1
  • 245000038489
    $0.21
    CABLE-TIE 4.0 X 130MM,NO MOUNT - 5000038489×9
  • 255000047388
    $0.18
    CABLE-TIE 7.6X356MM,NO MNT,BLK - 5000047388×4
  • 335000220555
    $12.46
    Plate - 5000220555×1
