DPU100-70Le Reversible Vibratory Plate

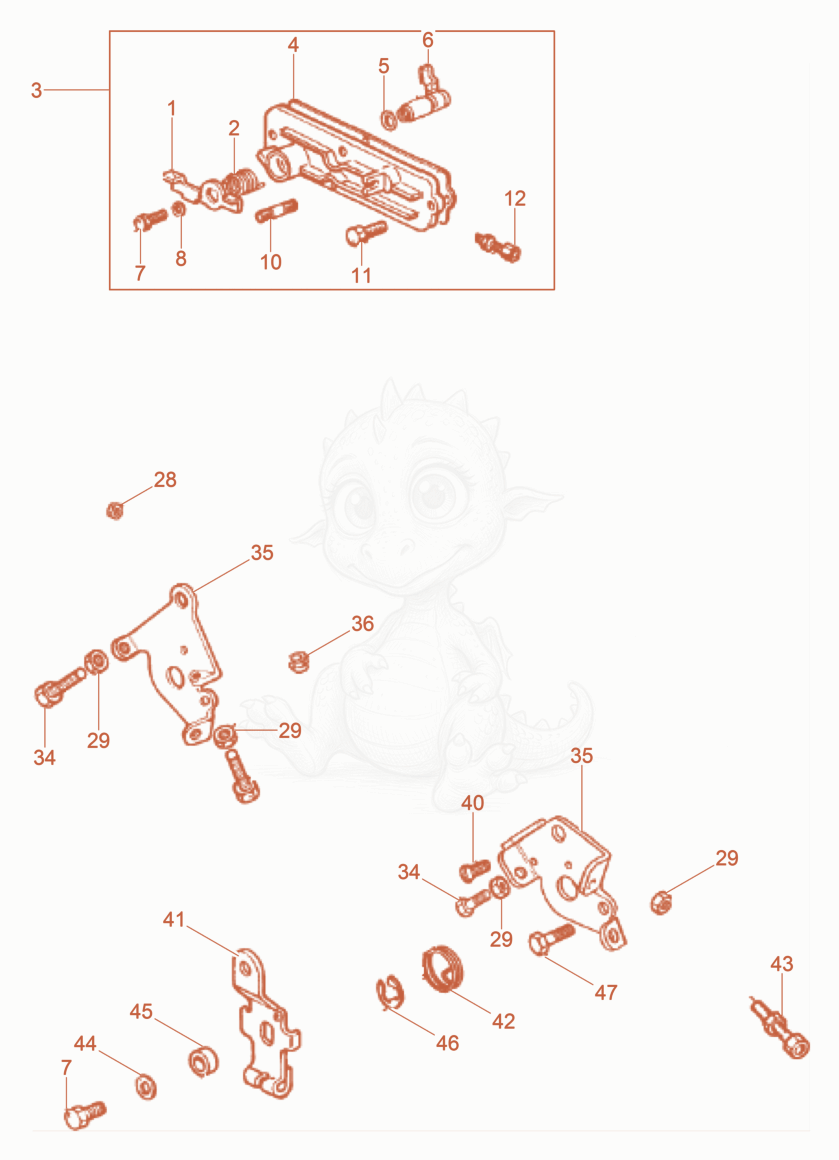

DPU100-70LES Throttle Control Diagram
- Lever - 5000209034×1
- SPRING-TORSION - 5000209035×1
- COVER-GOVERNOR COMPLETE - 5000209039×1
- Gasket - 5100009319×1
- O-ring - 5000128972×1
- LEVER COMPLETE - 5000209037×1
- SCREW M6 X 10 - 5000084131×1
- washer - 5000159348×1
- BOLT-THREADED M6 - 5000209042×1
- SCREW-HEX,M6 X 20 - 5000209041×3
- SCREW-SET - 5000209040×1
- NUT-HEX M6 H.6 - 5000208903×3
- nut - 5000159272×1
- NUT-HEX - 5000215493×1
- Threaded pin - 5000226313×2
- Regulating plate - 5000226289×1
- nut - 5000217806×1
- Screw - 5000206234×1
- LEVER-THROTTLE - 5000209047×1
- SPRING-TORSION - 5000209046×1
- SCREW-SET - 5000209045×1
- Washer - 5000209049×1
- BUSHING,12 - 5000209048×1
- WASHER,D8 - 5000209043×1
- SCREW-HEX,M6 X 1 X 14 - 5000209008×1
