DPU100-70Le Reversible Vibratory Plate

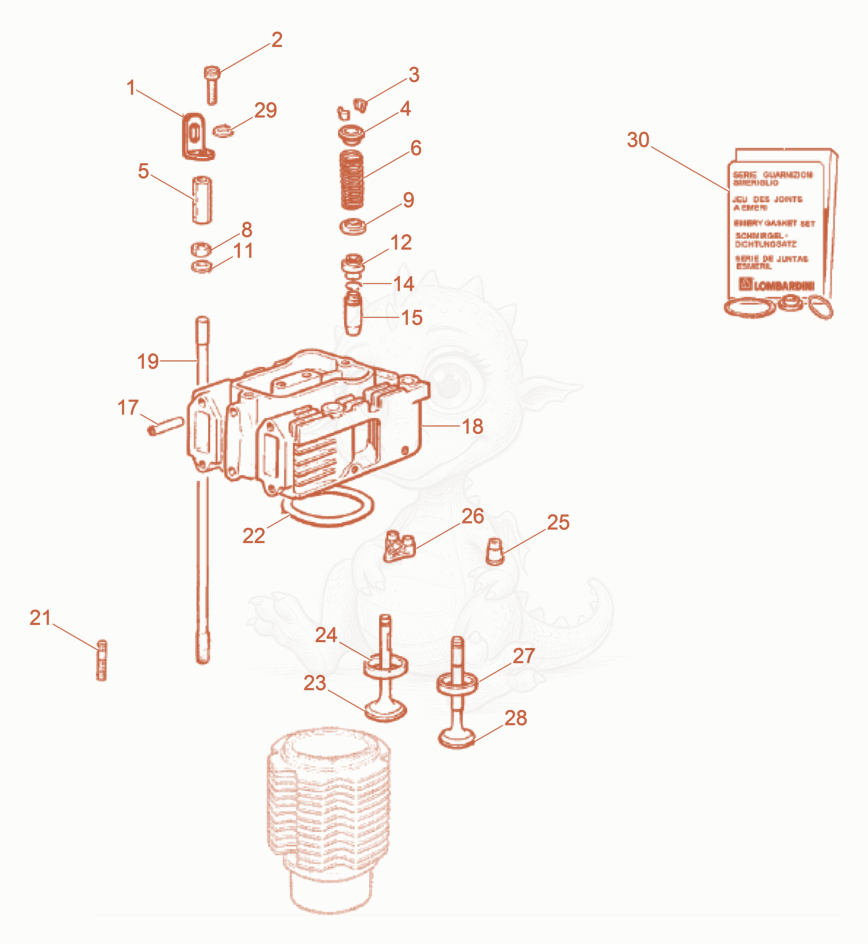

DPU100-70LES Cylinder head Diagram
- EYE-LIFTING - 5000208950×2
- SCREW-HEX M10X1.25X20 - 5000208934×1
- CLAMP - 5000208920×8
- Cup - 5000226291×4
- Nut - 5000226276×3
- SPRING PRESSURE - 5000208922×4
- NUT-HEX M10X1.25 H10 - 5000208935×4
- SPRING PLATE - 5000208923×4
- Cup - 5000226290×4
- WASHER 10.5 X 22 - 5000208933×8
- SEAL-GUIDE - 5000159297×4
- RING-RETAINING - 5000208924×4
- VALVE-GUIDE - 5000208925×2
- Pipe - 5100008839×1
- Cylinder head - 5000226308×2
- 195000208949Not stockedNecked down Bolt×8
- SCREW M8 X 47 - 5000203343×2
- GASKET-CYL HEAD 0.95 - 5000208946×1
- GASKET-CYL HEAD 0.65 - 5000208940×1
- GASKET-CYL HEAD 0.70 - 5000208941×1
- GASKET-CYL HEAD 0.75 - 5000208942×1
- GASKET-CYL HEAD 0.80 - 5000208943×1
- GASKET-CYL HEAD 0.85 - 5000208944×1
- GASKET-CYL HEAD 0.90 - 5000208945×1
- GASKET-CYL HEAD 1.00 - 5000208947×1
- GASKET-CYL HEAD 1.05 - 5000208948×1
- VALVE-INTAKE - 5000208930×2
- VALVE-INTAKE SEAT - 5000208931×1
- Cap - 5000208917×4
- Cap - 5000208916×2
- VALVE-EXHAUST SEAT +0.5 - 5000208928×1
- VALVE-EXHAUST - 5000208927×2
- Washer - 5000082294×1
- 305000226314Not stockedSet-gasket cylinder head×1
