Vibratory Plate DPU 3050Hw US Army

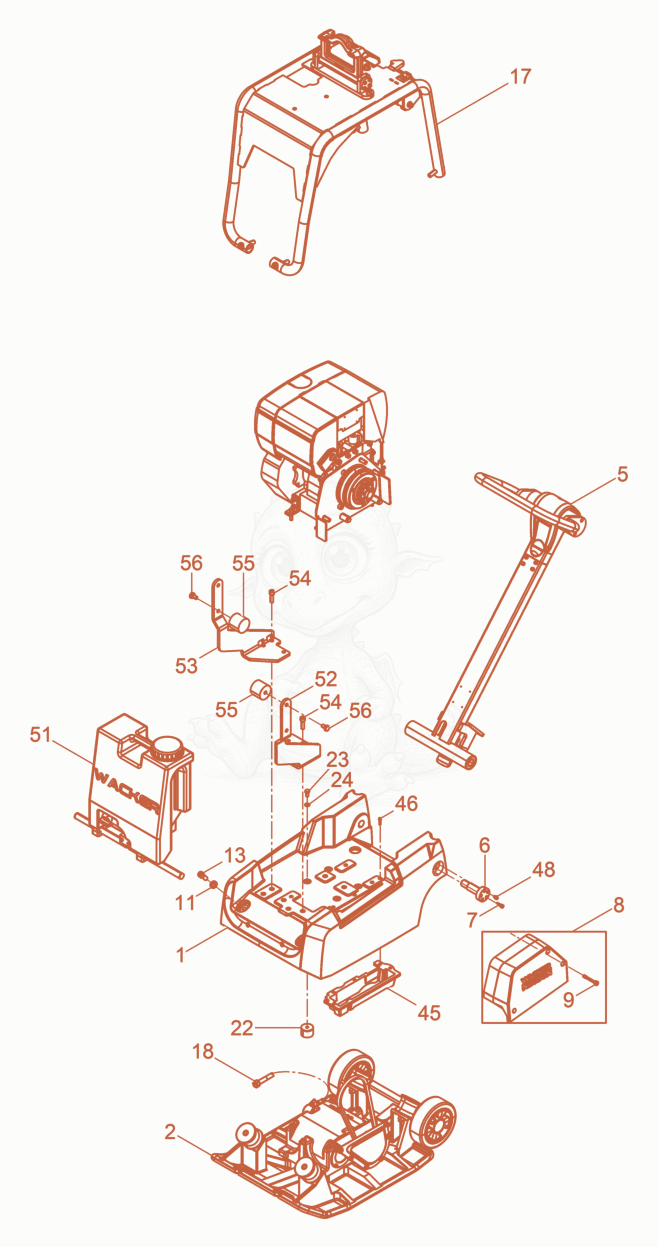

DPU3050HWUSARMY Vibration Plate Diagram
- Upper Mass 5100010011×1
- Baseplate cpl. - 5100010164×1
- Center Pole cpl. - 5100010163×1
- axle - 5000204120×2
- SCREW M6 X 20 SOC.HD. - 5000011551×8
- Belt guard x-5100050071 - 5100002781×1
- SCREW-THIN SHANK END - 5000216659×3
- WASHER B13 FLAT - 5000010620×4
- SCREW M12 X 30 SOC.HD - 5000011529×4
- HOSE-HYDRAULIC - 5000125357×1
- SHOCKMOUNT - 5000201017×4
- SCREW M8 X 18 HX.HD. - 5000013551×4
- WASHER-FLAT,M8,ZINC - 5000010622×4
- GUARD-STONE - 5000201876×1
- SCREW-M5 X 252, - 5000108180×6
- SCREW M6 X 8 SOC.HD. - 5000014425×2
- Watertank Cpl. 5000104044×1
- Clamp left - 5100009871×1
- Clamp right - 5100009872×1
- SCREW M10 X 35 SOC.HD. - 5000011533×6
- Stop Buffer - 5000105969×4
- SCREW M10 X 18,HEX - 5000032175×4
