Vibratory Plate DPU 3050Hw US Army

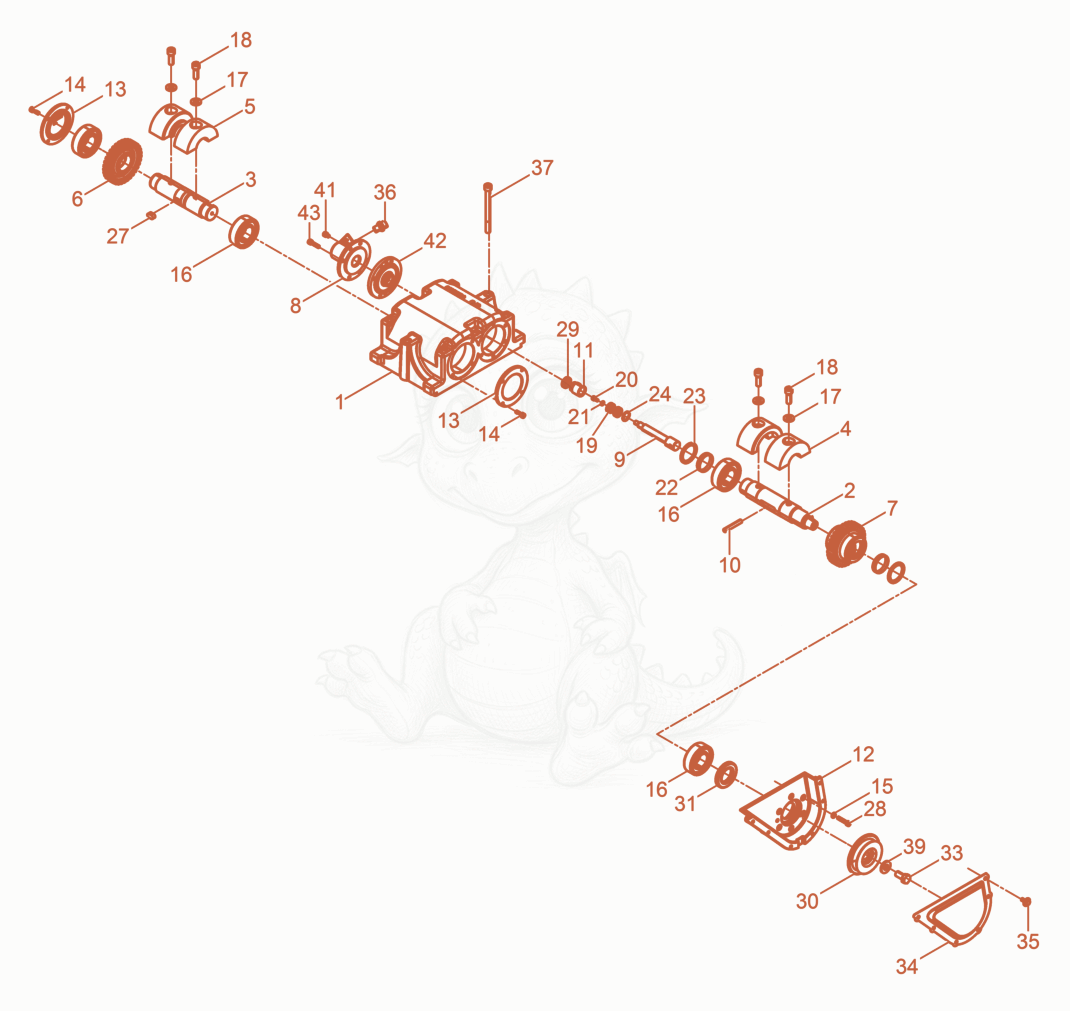

DPU3050HWUSARMY Exciter cpl. Diagram
- Exciter housing - 5100010015×1
- Shaft - 5000220064×1
- Shaft - 5000220065×1
- Eccentric weight - 5000220246×2
- Eccentric weight II - 5000220248×2
- GEAR - 5000047057×1
- Adjusting sleeve - 5100001454×1
- Cylinder cover - 5100010013×1
- Bolt - 5000220071×1
- Pin - 5000220073×1
- Piston - 5000220355×1
- Belt guard - 5100010016×1
- Cover - 5100010014×2
- SCREW M6 X 18 SOC.HD. - 5000011552×8
- WASHER B6.4 FLAT - 5000010624×6
- BEARING-CYLINDER ROLLER - 5000105139×4
- WASHER-LOCK 10 - 5000033988×4
- Screw-Cheese Head,10 x 30,Gr10.9 - 5000220074×4
- BEARING-RADIAL BALL,608 - 5002006596×2
- SCREW M5 X 10 SOC.HD. - 5000024617×1
- WASHER B5.3 FLAT - 5000010625×1
- Bushing - 5000220072×2
- Washer - 5000220075×2
- RET.RING-INT 22MMX1MM, - 5002004979×1
- KEY A10 X 8 X 18 - 5000014844×1
- SCREW M6 X 30 SOC.HD. - 5000011549×6
- SEAL-LIP - 5000220356×1
- V-Belt Pulley - 5000125371×1
- SEAL-ROTARY SHAFT - 5000126167×1
- SCREW-VENT - 5000126179×1
- cover - 5000125360×1
- Screw M6 x 16 - 5100009501×6
- FITTING-PIPE L10R - 5000046461×1
- SCREW M10 X 120 10.9 - 5000094073×8
- WASHER-LOCK A12 - 5000031565×1
- SCREW M6 X 8 SOC.HD. - 5000014425×2
- Cover - 5100010017×1
- SCREW M6 X 25 SOC.HD. - 5000011550×4
