Vibratory Plate DPU 3050Hw US Army

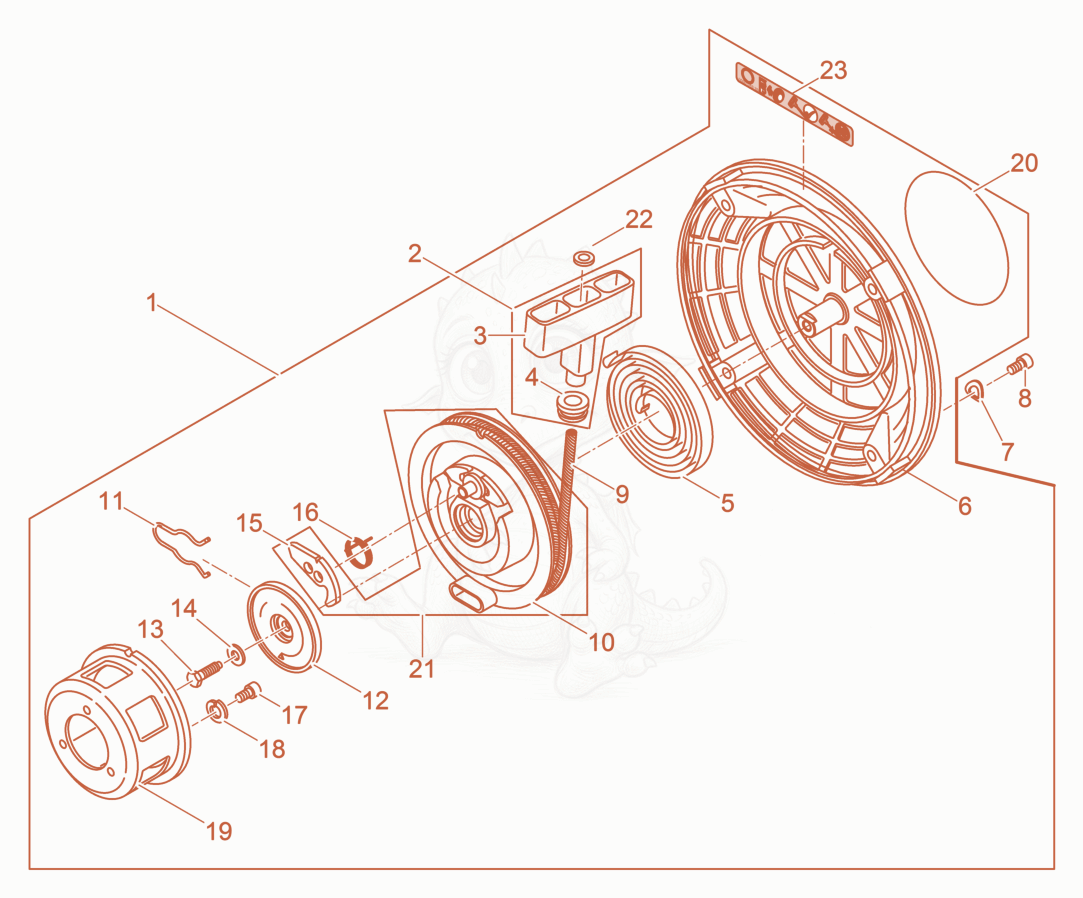

DPU3050HWUSARMY Rewind Starter Diagram
- STARTER ASSEMBLY - 5000205792×1
- HANDLE-STARTER,RECOIL - 5000108830×1
- GROMMET .390 ID,TAPERED,RUBBER - 5000058711×1
- SPRING-RETURN - 5000108827×1
- HOUSING-STARTER,RECOIL - 5000108826×1
- WASHER-SPRING, A6 - 5000151290×4
- SCREW-ALLEN M6X10 8.8 - 5000151448×4
- ROPE-STARTER,RECOIL - 5000205791×1
- SPRING-BRAKE - 5000108831×1
- DISC-BRAKE - 5000108834×1
- SCREW-HEX M6X18 8.8 A3C - 5000151452×1
- WASHER-SPRING - 5000207593×1
- RATCHET-STARTER,RECOIL - 5000108833×1
- SPRING-RETURN - 5000108832×1
- SCREW-ALLEN M6X10 8.8 - 5000151448×3
- WASHER-SPRING 6 A3C - 5000151456×3
- SLEEVE-DRIVING - 5000108835×1
- LABEL - 5000227678×1
- PULLEY-ROPE - 5000069666×1
- WASHER-5,3 PA6.6 - 5000129008×1
- Label - 5000215784×1
