V.Plate DPU 4045Ye

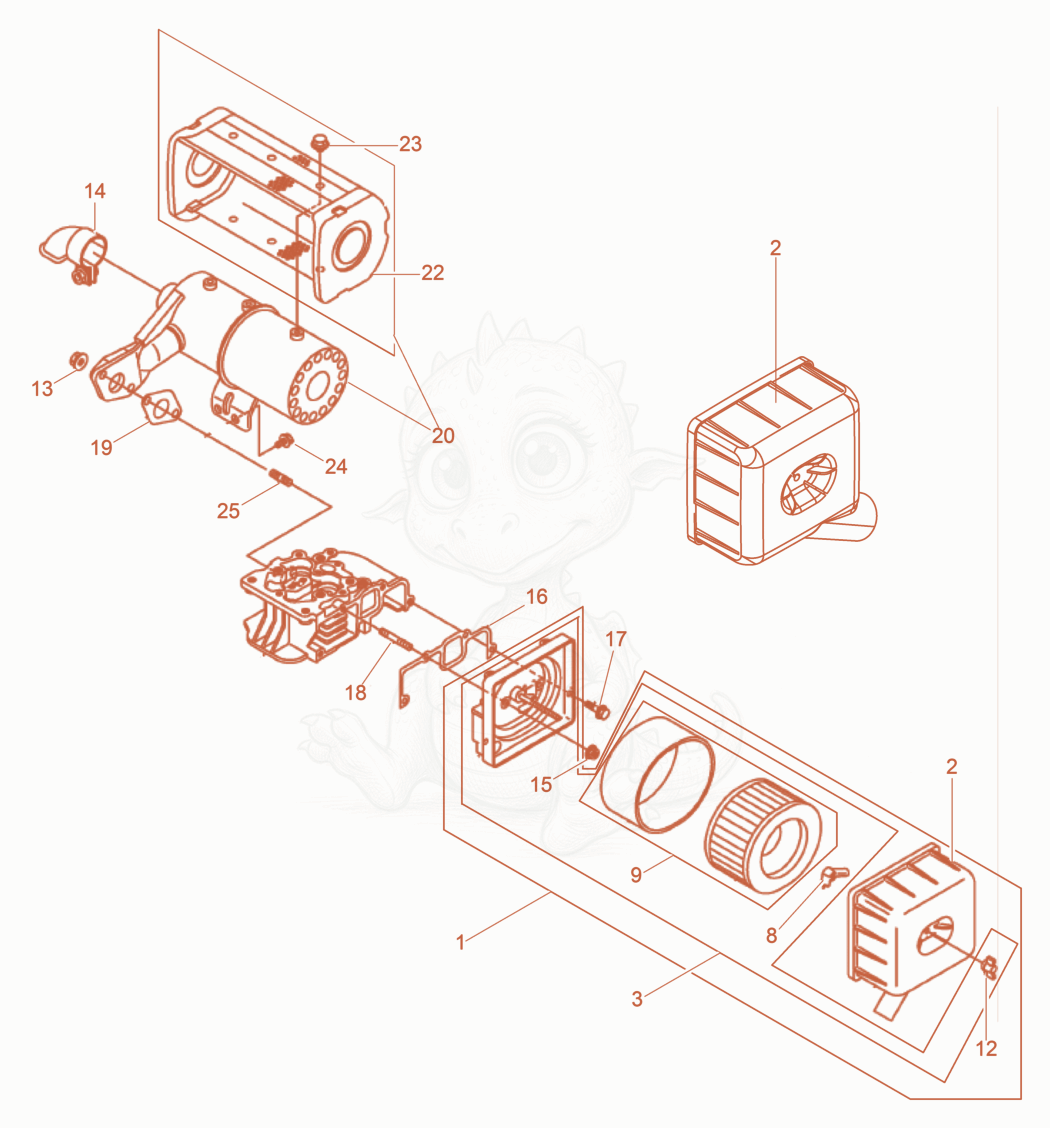

DPU4045YE Air Cleaner Diagram

Exploded parts diagram of the Air Cleaner of a Wacker Neuson DPU4045YE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000217886
    $660.95
    Air cleaner cpl. - 5000217886×1
  • 25000217892
    $43.42
    Cover - 5000217892Unknown×1
  • 25100022094Not stocked
    Air cleaner cover Australia×1
  • 35000217887
    $291.26
    Housing - 5000217887×1
  • 85000217853
    $7.48
    Wing nut - 5000217853×1
  • 95000217854
    $71.84
    Air filter element - 5000217854×1
  • 125000217855
    $8.66
    Wing nut - 5000217855×1
  • 135000073665
    $2.09
    NUT M8,FLANGE - 5000073665×2
  • 145000210502Not stocked
    Exhaustdeflector×1
  • 155000213232
    $1.28
    Nut - 5000213232×3
  • 165000217852
    $10.26
    Air cleaner gasket - 5000217852×1
  • 175000150361
    $2.09
    BOLT M6X20 - 5000150361×1
  • 185000217936
    $2.61
    Threaded bolt - 5000217936×3
  • 195000210617
    $5.61
    GASKET-MUFFLER - 5000210617×1
  • 205000056739
    $492.59
    MUFFLER-COMPLETE - 5000056739×1
  • 225000073663
    $91.00
    GUARD-MUFFLER COVER - 5000073663×1
  • 235000119905
    $2.07
    BOLT-M6 X 8 - 5000119905×6
  • 245000210533
    $2.07
    BOLT M6X14,PLATED - 5000210533×2
  • 255000073640
    $2.54
    STUD M8 X 18 - 5000073640×2
