V.Plate DPU 4045Ye

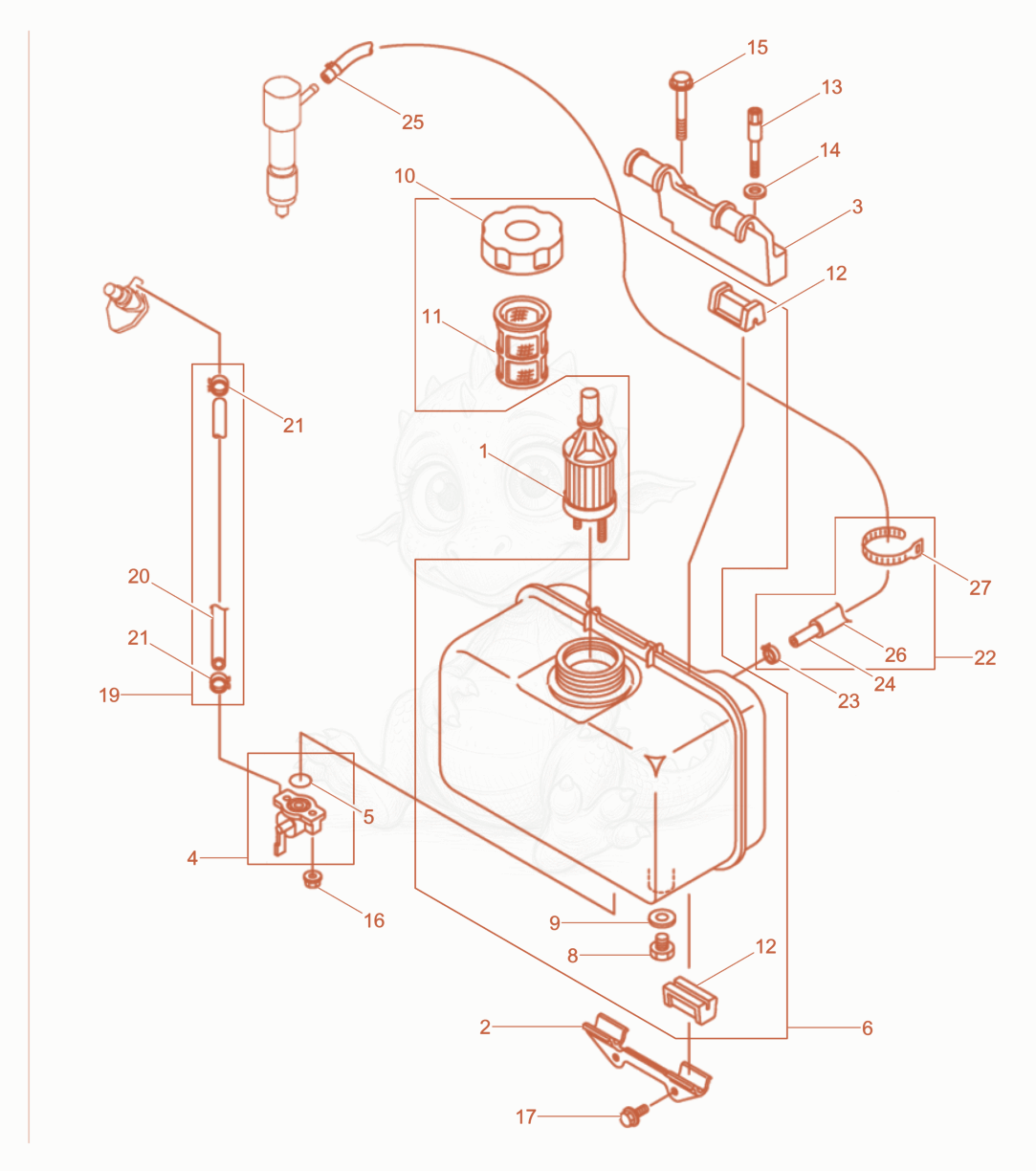

DPU4045YE Fuel Tank, Fuel Pipes Diagram
- Fuel Filter cpl. - 5100061538×1
- Bracket - 5000217876×1
- Fixing device - 5000217877×1
- Fuel cock cpl. - 5100059739×1
- o-ring - 5000153986×1
- Fuel Tank cpl. - 5100061540×1
- DRAIN PLUG - 5000213242×1
- GASKET - 5000119882×1
- CAP-ASSY,FUEL TANK - 5000213241×1
- Fuel filter - 5100059741×1
- Shockmount - 5100059743×4
- Bolt - 5000217878×1
- washer - 5000085567×1
- 155200019879Not stockedHexagonal flange head screw×1
- NUT-M6 - 5000119722×2
- SCREW M6 X 16,HX.FLANGE - 5000073659×2
- PIPE ASSY,FUEL OIL - 5000210560×1
- HOSE-FUEL OIL - 5000119891×1
- Clamp - 5000217931×2
- Pipe cpl. - 5100000750×1
- 235200020209Not stockedClip×1
- 245100061541Not stockedreturn pipe×1
- Clamp - 5100000762×1
- Flexible tube - 5000217927×1
- Clamp - 5000217929×1
