Vibroplate DPU5045

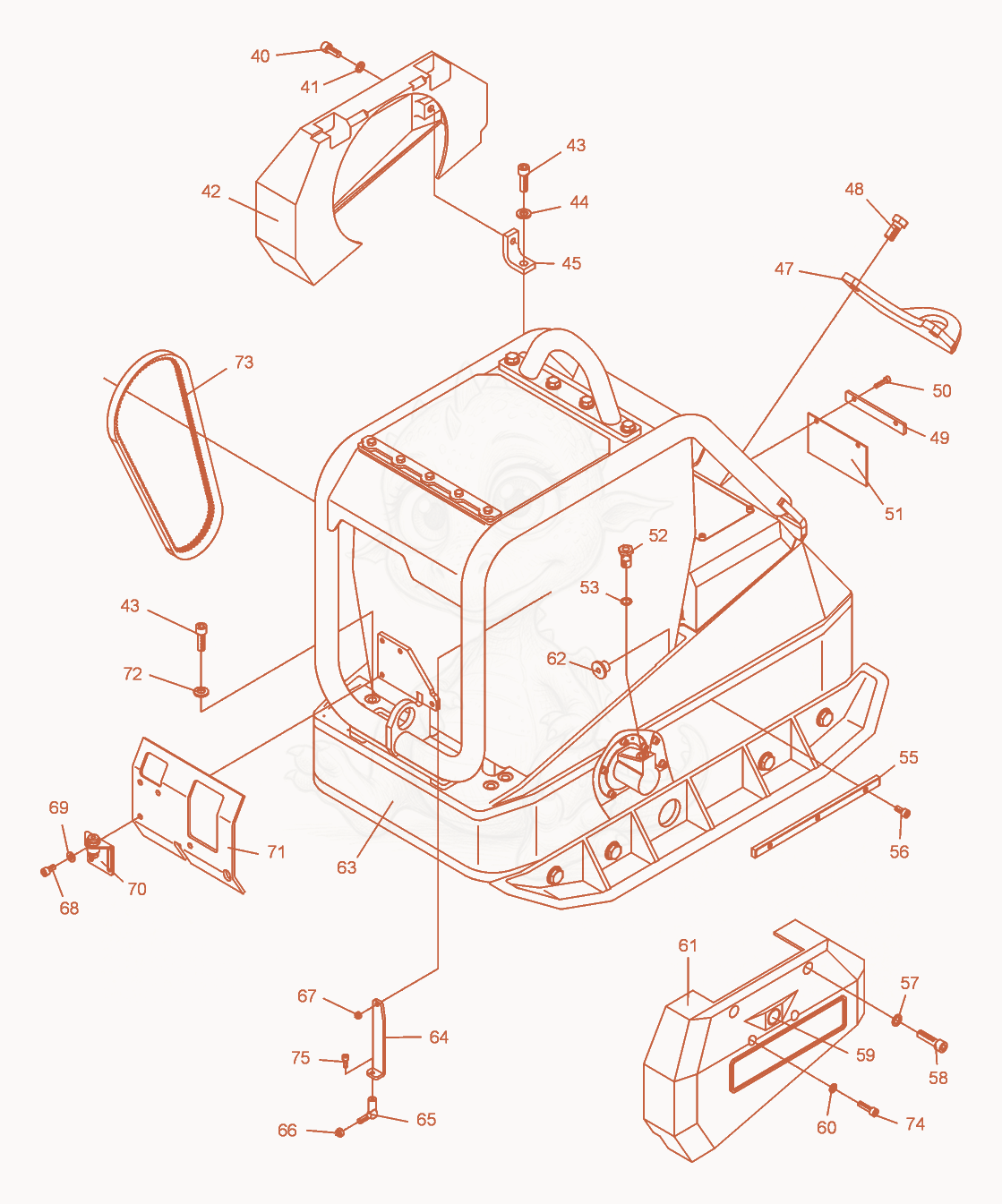

DPU5045H Vibratory Plate cpl. Diagram
- SCREW M10 X 25 SOC.HD. - 5000011535×2
- WASHER 10.5 - 5000010741×2
- BELTGUARD - 5000103384×1
- SCREW M12 X 35 SOC.HD. - 5000011528×10
- WASHER B13 FLAT - 5000010620×2
- BRACKET-MOUNT - 5000103472×2
- Plate - 5000048519×1
- SCREW M16 X 30 HX.HD. - 5000011523×2
- PLATE-STRIP - 5000039206×1
- SCREW M6 X 25 SOC.HD. - 5000011550×2
- COVER - 5000043478×1
- SCREW-HOLLOW 10-3 - 5000043201×1
- SEAL-RING 14 X 18 - 5000012624×2
- MOUNTING STRIP - 5000097110×2
- SCREW M8X18 SOC.HD. - 5000103962×6
- WASHER 13 - 5000010740×2
- SCREW M12 X 45 SOC.HD GR8.8 - 5000011526×2
- BUSHING - 5000103976×1
- 605000010742Not stockedWasher×2
- COVER-ENGINE - 5000103977×1
- BUSHING-GUIDE - 5000103880×2
- GUARD - 5000039145×1
- Lever - 5000103971×1
- BALL-JOINT AS13 - 5000038403×1
- NUT M8 8,HEX - 5000010882×1
- NUT-LOCK VM6 HEX - 5000021679×1
- SCREW M8 X 16 SOC.HD. - 5000011544×4
- WASHER-FLAT,M8,ZINC - 5000010622×4
- DRAIN-COMPLETE,OIL - 5000097896×1
- GUARD-PLATE - 5000103884×1
- WASHER-LOCK HS12,HIGH TENSION - 5000021465×8
- BELT-V BX39 - 5000058889×1
- SCREW M8 X 30 SOC.HD. - 5000011541×2
- SCREW M6 X 16 SOC.HD. - 5000011553×1
