Vibroplate DPU5045

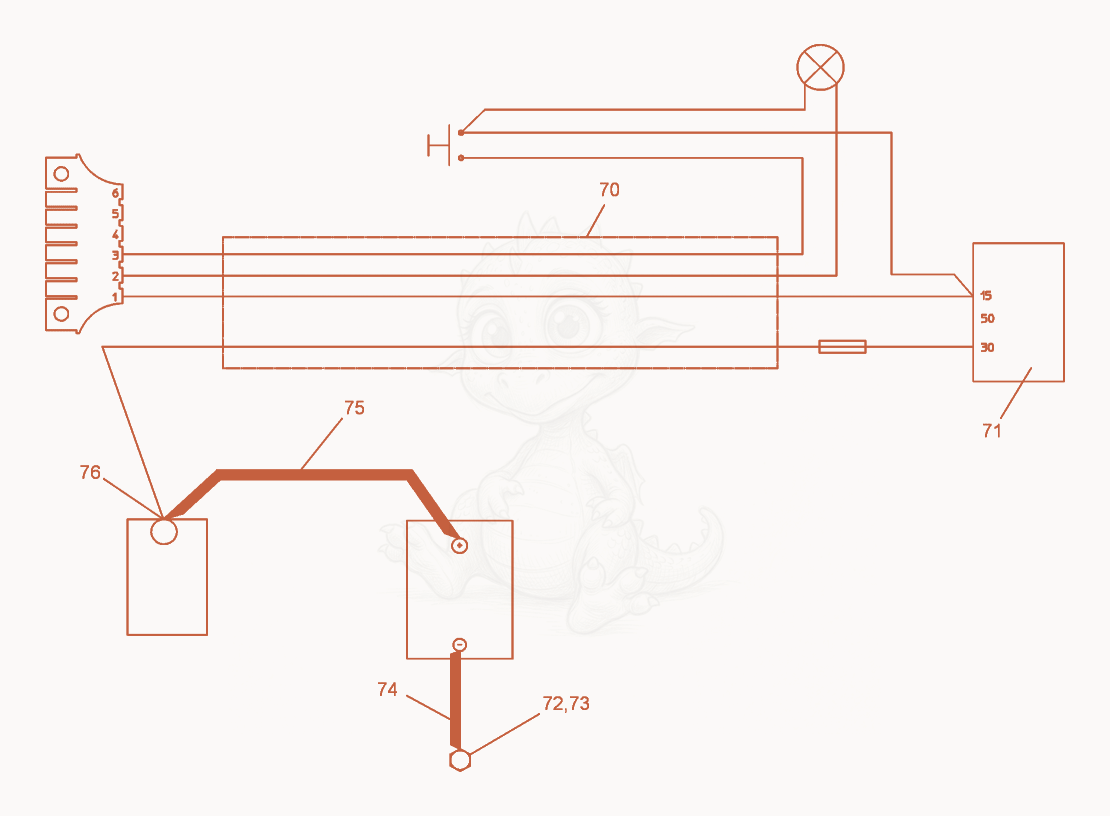

DPU5045H Upper Mass cpl. Diagram

Exploded parts diagram of the Upper Mass cpl. of a Wacker Neuson DPU5045H, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 705000106191
    $235.84
    WIRING HARNESS - 5000106191×1
  • 715000097292
    $8.18
    PLUG-ELECTRICAL (BOSCH) - 5000097292×1
  • 725000012361
    $0.23
    SCREW M8 X 16 HX.HD. - 5000012361×1
  • 735000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×1
  • 745000048761
    $62.34
    CABLE-BATTERY LEAD,GRND STRAP - 5000048761×1
  • 755000104084
    $147.84
    CABLE-BATTERY LEAD,POS - 5000104084×1
  • 765000058696
    $14.34
    COVER-STARTER PROTECTOR - 5000058696×1
