Vibroplate DPU5045

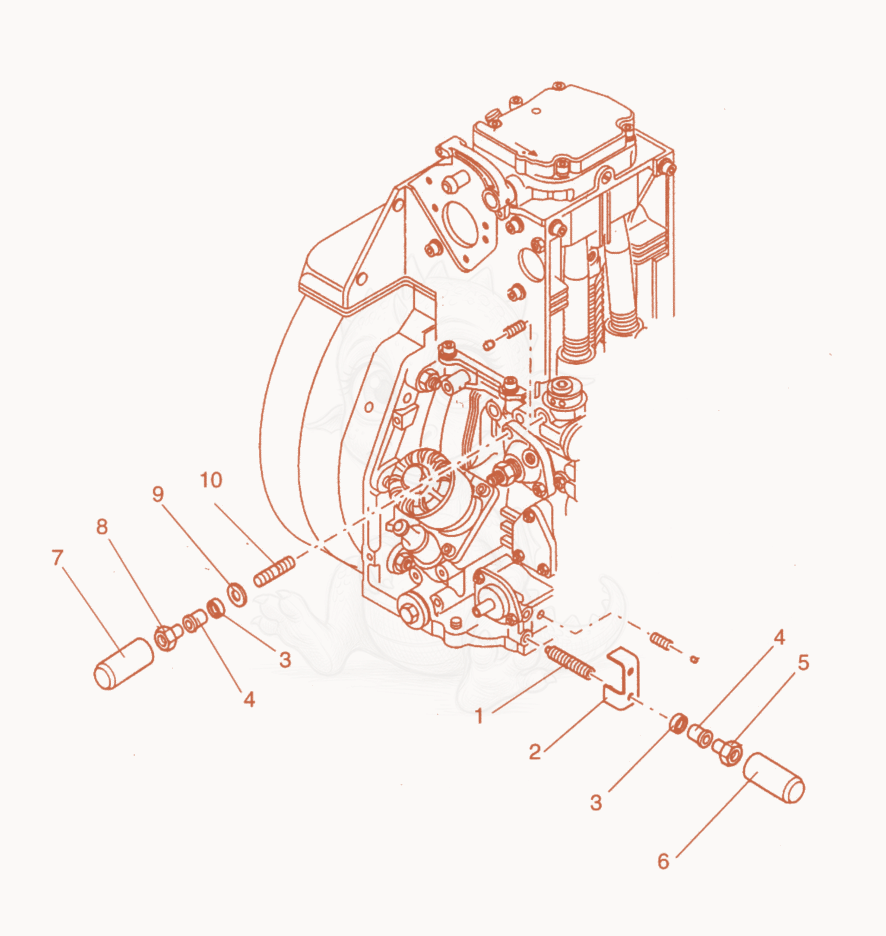

DPU5045H EPA Diagram
- PIN-THREADED - 5000126909×2
- angle - 5000126904×1
- washer - 5000126905×2
- BUSHING - 5000126906×2
- BUSHING-THREADED M6 - 5000126907×1
- cap - 5000126911×1
- cap - 5000126908×1
- BUSHING-THREADED M8 - 5000126910×1
- Washer - 5000107271×1
- STUD M8 X 35 - 5000010929×1
