DPU7060SC VIBROPLATE,DIESEL,SC

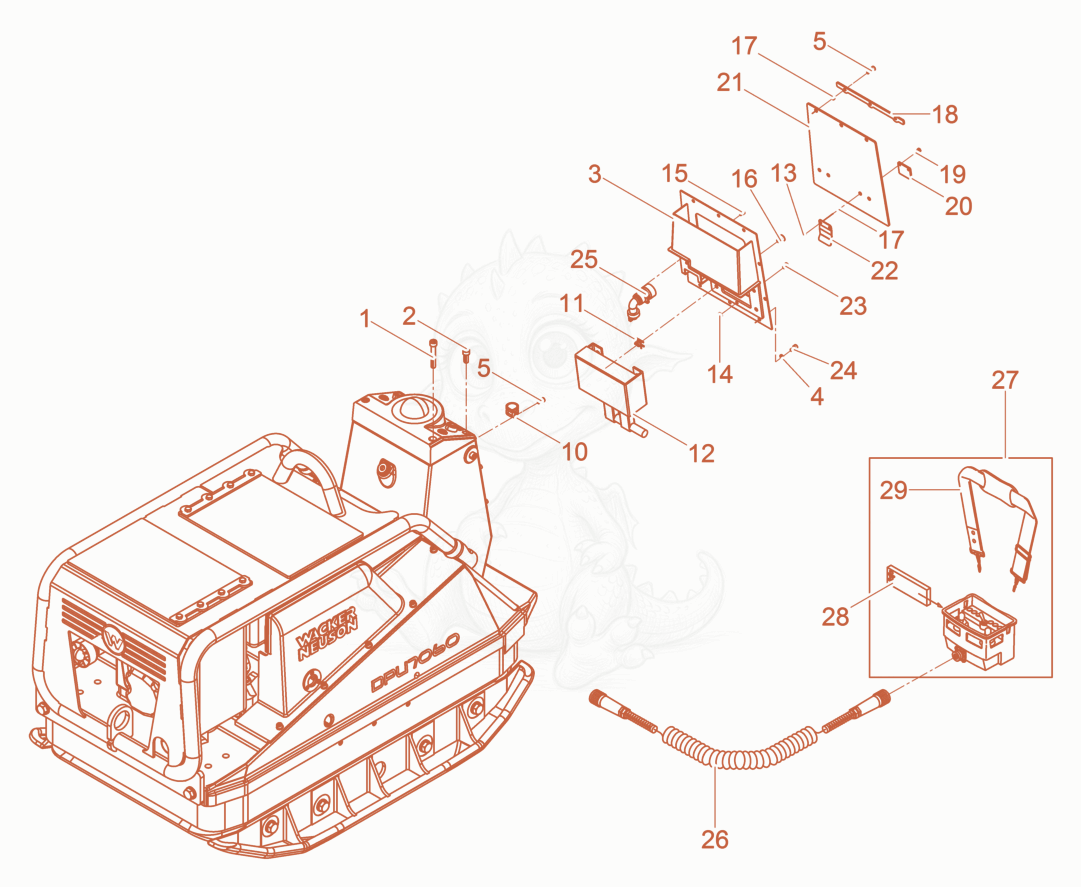

DPU7060SC Vibratory Plate cpl. Diagram
- SCREW M10 X 65 SOC.HD - 5000013565×2
- SCREW M10 X 25 SOC.HD. - 5000011535×2
- COVER-PANEL - 5000204830×1
- WASHER B6.4 FLAT - 5000010624×12
- SCREW M6 X 16 SOC.HD. - 5000011553×4
- CLAMP - 5000205206×2
- NUT-SPEED - 5000202586×4
- SENSOR-DECODER - 5000201548×1
- NUT-HEX,M5 8,ISO4032 - 5000010879×4
- NUT M6 8,HEX - 5000010880×1
- SCREW-SOCKET HEAD - 5000204550×3
- SCREW-COUNTERSUNK - 5000125201×4
- BUSHING - 5000202006×7
- SEAL-STRIP - 5000204828×1
- SCREW M5 X 12 HX.HD. - 5000011477×4
- SEAL-STRIP - 5000204805×2
- PLATE-COVER - 5000204829×1
- CLAMP-PANEL - 5000204833×2
- SCREW M6 X 12 FLAT HD. - 5000013479×1
- SCREW M6 X 12 SOC.HD. - 5000011554×11
- WIRE HARNESS - 5000205207×1
- CABLE-SPIRAL - 5000202588×1
- Transmitter Complete 5000202020×1
- Battery - 5100000799×1
- Battery charger - 5000202022×1
- STRAP-NECK COMBI CONT - 5000114783×1
