DPU7060SC VIBROPLATE,DIESEL,SC

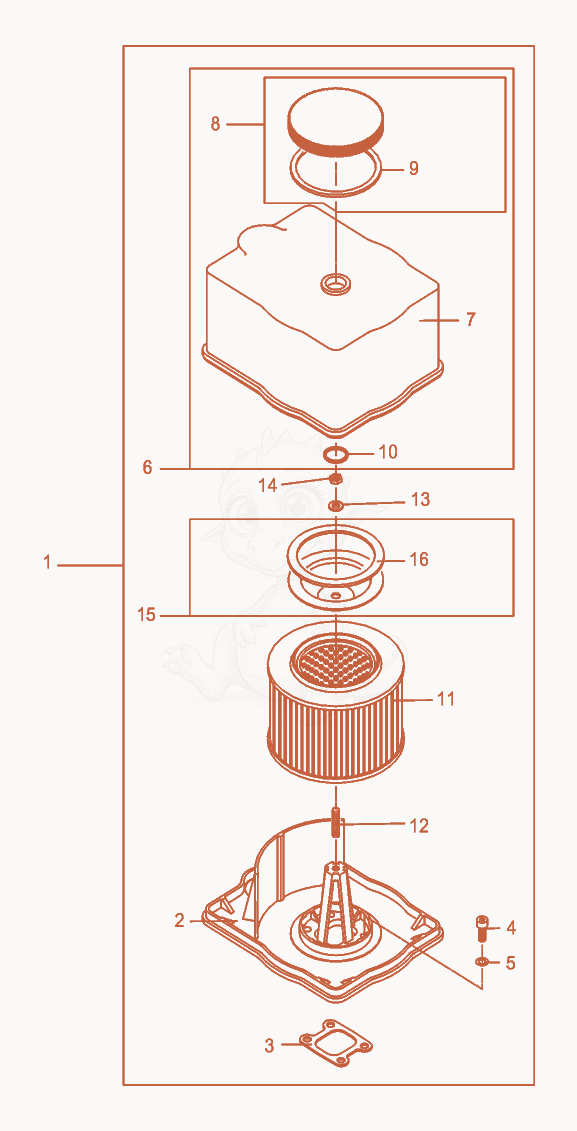

DPU7060SC Air Filter-dry cpl. Diagram
- CONNECTOR-AIR FILTER,DRY - 5000204782×1
- FLANGE-AIR FILTER - 5000204650×1
- seal - 5000204661×1
- SCREW M8X20,SOCKET HD - 5000204716×4
- WASHER-SPRING A8 - 5000204697×4
- COVER-AIR FILTER - 5000204777×1
- COVER-AIR CLEANER - 5000204649×1
- COVER-SCREW,COMPL. - 5000204776×1
- SEAL-RING - 5000204670×1
- WIRE A25 - 5000204759×1
- FILTER CARTRIDGE - 5000204505×1
- BOLT M8X25,THREADED STUD - 5000204733×1
- WASHER A8.4 - 5000204689×1
- NUT B M8,HEX - 5000204698×1
- HOLDER COMPL. - 5000204787×1
- SEAL-RING - 5000204672×1
