DS70H Vibratory Rammer, 13" Plastic Shoe EPA

DS70 Guide Handle cpl. Diagram

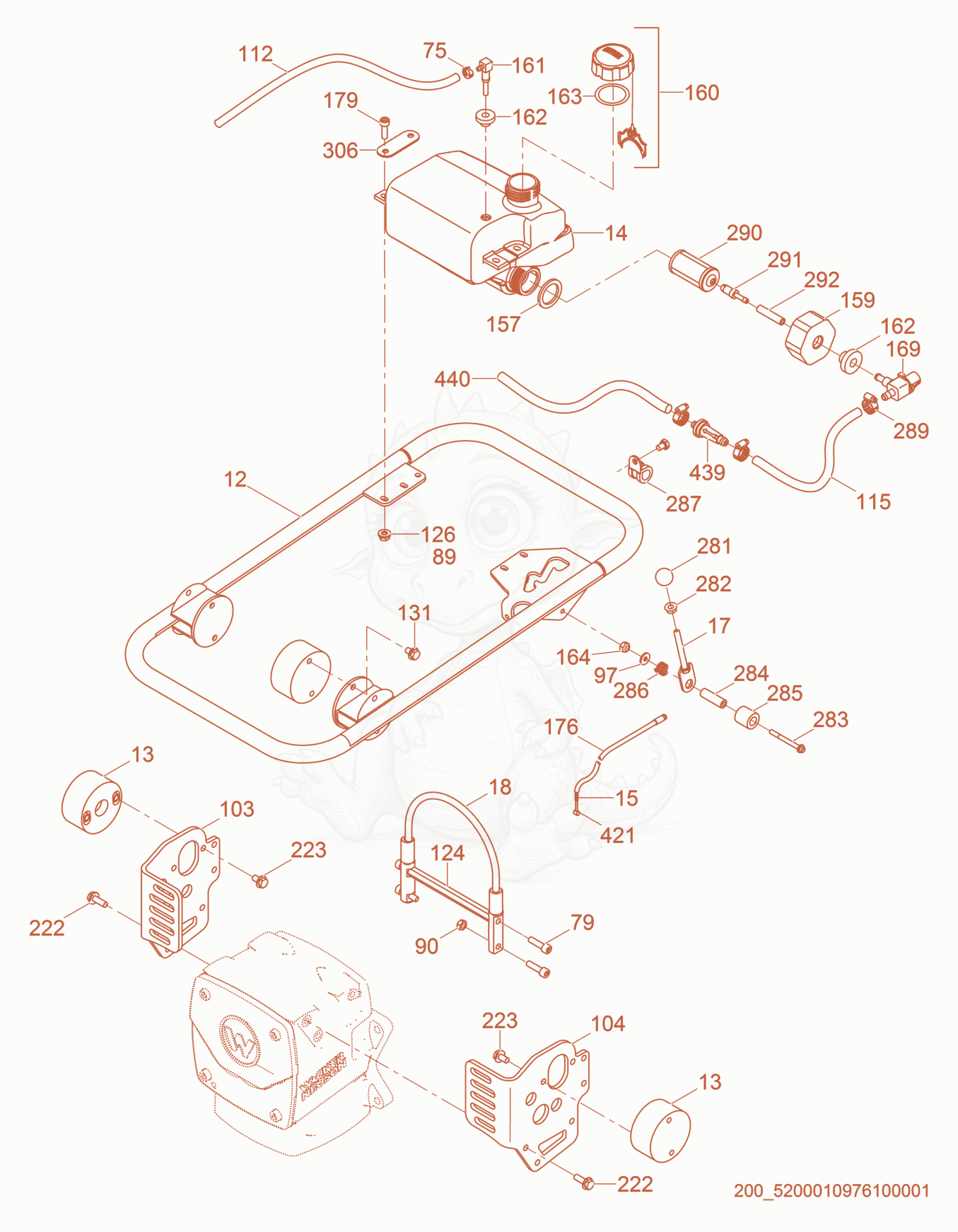

Exploded parts diagram of the Guide Handle cpl. of a Wacker Neuson DS70, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 125200009099
    $122.30
    GUIDE HANDLE-DIESEL P-5000112007 - 5200009099×1
  • 135000156979
    $97.14
    SHOCKMOUNT x-5100032053 - 5000156979×2
  • 145000179162
    $368.73
    TANK-FUEL,W/VENT HOLE - 5000179162×1
  • 155200017452Not stocked
    Inner cable×1
  • 175000192866
    $37.64
    CONTROL-THROTTLE X-5100032229 - 5000192866×1
  • 185000192868
    $60.35
    CABLE-CRANE LIFT X 5100032051 - 5000192868×1
  • 755000114073
    $0.23
    CLAMP-HOSE - 5000114073×1
  • 895000058381
    $0.13
    WASHER-LOCK 6 FST - 5000058381×4
  • 905000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×2
  • 975000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×1
  • 1035100015853
    $183.73
    Bracket-Shockmount,Right P-5000112007 - 5100015853×1
  • 1045100015850
    $83.35
    Bracket-Shockmount,Left P-5000112007 - 5100015850×1
  • 1125200023642Not stocked
    Fuel hose×1
  • 1155000111843
    $3.96
    HOSE-FUEL, 1/4 X 9 - 5000111843×1
  • 1245000156394
    $10.07
    brace - 5000156394×1
  • 1265000010880
    $0.03
    NUT M6 8,HEX - 5000010880×4
  • 1315000161246
    $0.33
    SCREW M8 X 14 HX.HD. - 5000161246×4
  • 1315000033198
    $0.32
    WASHER-LOCK B8 - 5000033198×4
  • 1575000086312
    $7.36
    SEAL-RING - 5000086312×1
  • 1595200025042Not stocked
    Cap×1
  • 1605000163682
    $27.65
    CAP-FUEL TANK,RAMMER - 5000163682×1
  • 1615000111321
    $3.78
    FITTING-W/O FILTER - 5000111321×1
  • 1625000110586
    $3.70
    BUSHING-FUEL VALVE - 5000110586×2
  • 1635000173020
    $1.67
    Gasket - 5000173020×1
  • 1645000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×1
  • 1695200025047Not stocked
    Shutoff valve×1
  • 1765200017453Not stocked
    Outer cable casing×1
  • 1795000160861
    $0.40
    SCREW M6X16 SC HD,W/WASHER,SEM - 5000160861×4
  • 2225000011457
    $1.49
    SCREW M8 X 25 HX.HD. - 5000011457×6
  • 2225000033198
    $0.32
    WASHER-LOCK B8 - 5000033198×6
  • 2235000012361
    $0.23
    SCREW M8 X 16 HX.HD. - 5000012361×4
  • 2235000033198
    $0.32
    WASHER-LOCK B8 - 5000033198×4
  • 2815200009623
    $5.02
    KNOB-BLACK PHENOLIC BALL - 5200009623×1
  • 2825000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×1
  • 2835200009622
    $21.93
    SPRING-COMP .66 X 1.00 LG - 5200009622×1
  • 2835000095917
    $1.01
    SCREW M6 X 60,FLANGED SOC.HD. - 5000095917×1
  • 2845200019299Not stocked
    Spacer×1
  • 2855200019300Not stocked
    Nylon bushing×1
  • 2875000164913
    $1.23
    CLAMP-HOSE,RSGU1.12/15W1 - 5000164913×1
  • 2895000028707
    $0.67
    CLAMP-THREADED,.21-.63 - 5000028707×3
  • 2905000128955
    $23.72
    FILTER-FUEL - 5000128955×1
  • 2915000128954
    $17.38
    FITTING-STRAIGHT - 5000128954×1
  • 2925200025045Not stocked
    Hose×1
  • 3065200009582
    $9.88
    PLATE-TANK MOUNTING - 5200009582×2
  • 4215002003655
    $3.62
    LUG-END,THROTTLE CABLE - 5002003655×1
  • 4395000076627
    $16.50
    FILTER-INLINE FUEL - 5000076627×1
  • 4405200022042Not stocked
    Fuel hose×1
