DS70H Vibratory Rammer, 13" Plastic Shoe EPA

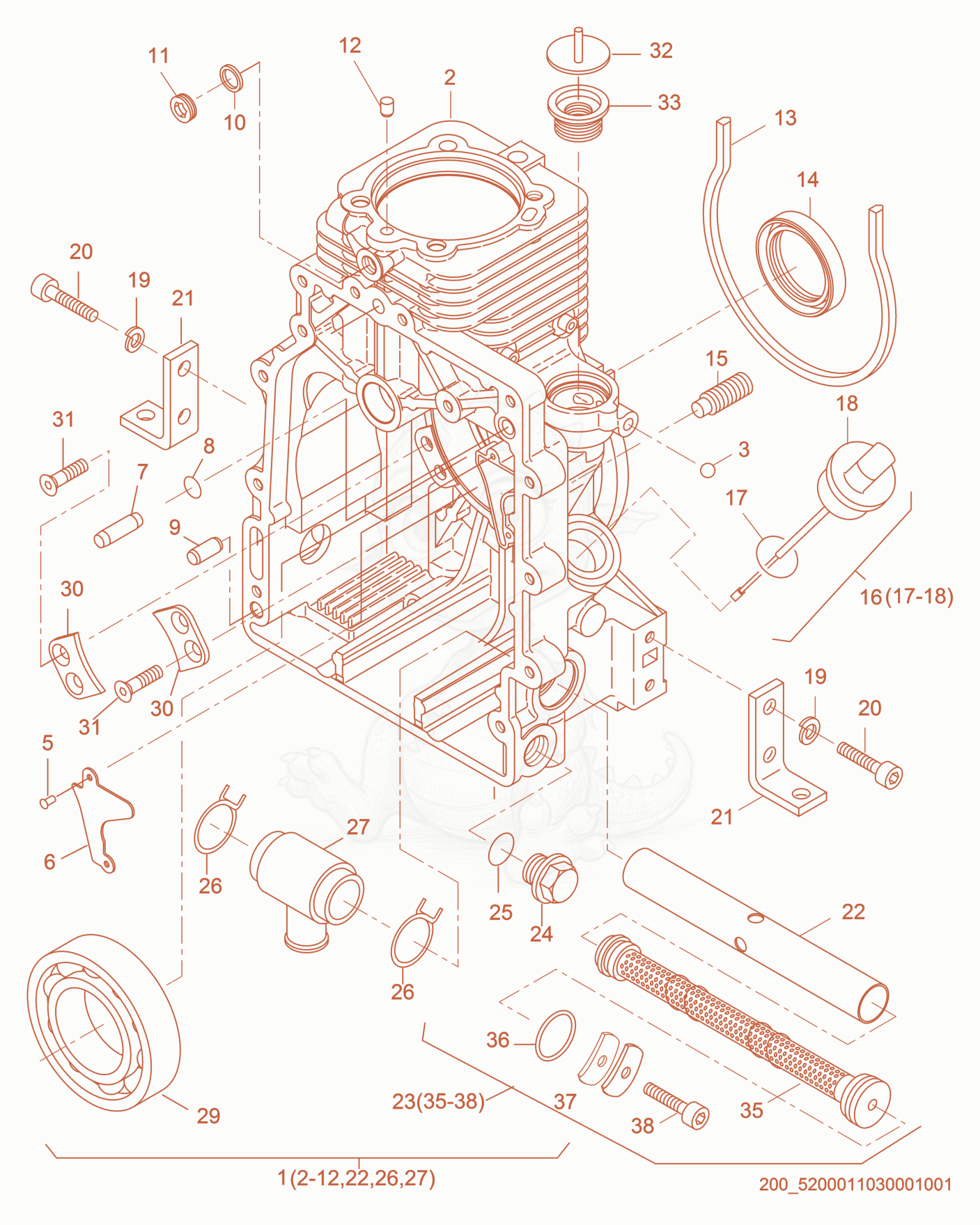

DS70 Crankcase cpl. Diagram

Exploded parts diagram of the Crankcase cpl. of a Wacker Neuson DS70, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000129029
    $862.66
    HOUSING-CRANKCASE - 5000129029×1
  • 55000151209
    $7.02
    RIVET-BLIND,3.2 - 5000151209×2
  • 65200021984Not stocked
    Cover×1
  • 75000128964
    $11.94
    PIN-CYLINDER,8 M6 X 24 - 5000128964×1
  • 85000108696
    $1.90
    O-RING 8 X 1.5 - 5000108696×1
  • 95000108694
    $8.06
    PIN-CYLINDER, 8M 6X20 - 5000108694×1
  • 105000071121
    $6.11
    SEAL-RING A10 X 13.5,COPR - 5000071121×1
  • 115000151213
    $8.06
    SCREW M10X1 5.8 A3C - 5000151213×1
  • 145000108678
    $14.34
    SEAL-STRIP 315MM - 5000108678×1
  • 155000151455
    $36.45
    SCREW-GRUB,EPA - 5000151455×1
  • 165000108681
    $43.30
    DIPSTICK-W/GASKET - 5000108681×1
  • 175000151217
    $7.02
    RING-SEALING - 5000151217×1
  • 195000151218
    $8.06
    WASHER-SPRING - 5000151218×8
  • 205000108683
    $8.06
    SCREW M8 X 35,ALLEN - 5000108683×8
  • 215000108682
    $35.06
    BRACKET-ENGINE - 5000108682×4
  • 225000151221
    $30.24
    TUBE-OIL FILTER - 5000151221×1
  • 235200021986Not stocked
    Oil filter×1
  • 245200021987Not stocked
    Drain valve×1
  • 255000202416
    $8.06
    SEAL-OIL - 5000202416×1
  • 265000108688
    $8.06
    CLIP-HOSE - 5000108688×2
  • 275000108691
    $41.16
    PORT-SUCTION - 5000108691×1
  • 295000108690
    $98.89
    BEARING-BALL,6308 - 5000108690×1
  • 305000108692
    $20.00
    PLATE - 5000108692×2
  • 315000209740
    $8.06
    SCREW-COUNTERSUNK M6 X 16 - 5000209740×4
  • 325000108676
    $36.45
    COVER - 5000108676×1
  • 335000094884
    $34.92
    Diaphragm - 5000094884×1
  • 365000151229
    $10.36
    O-RING, 20X4 - 5000151229×1
  • 375000151230
    $8.06
    SPRING-PLATE - 5000151230×2
  • 385000151231
    $8.06
    SCREW-ALLEN, M6X16 - 5000151231×1
