DS70H Vibratory Rammer, 13" Plastic Shoe EPA

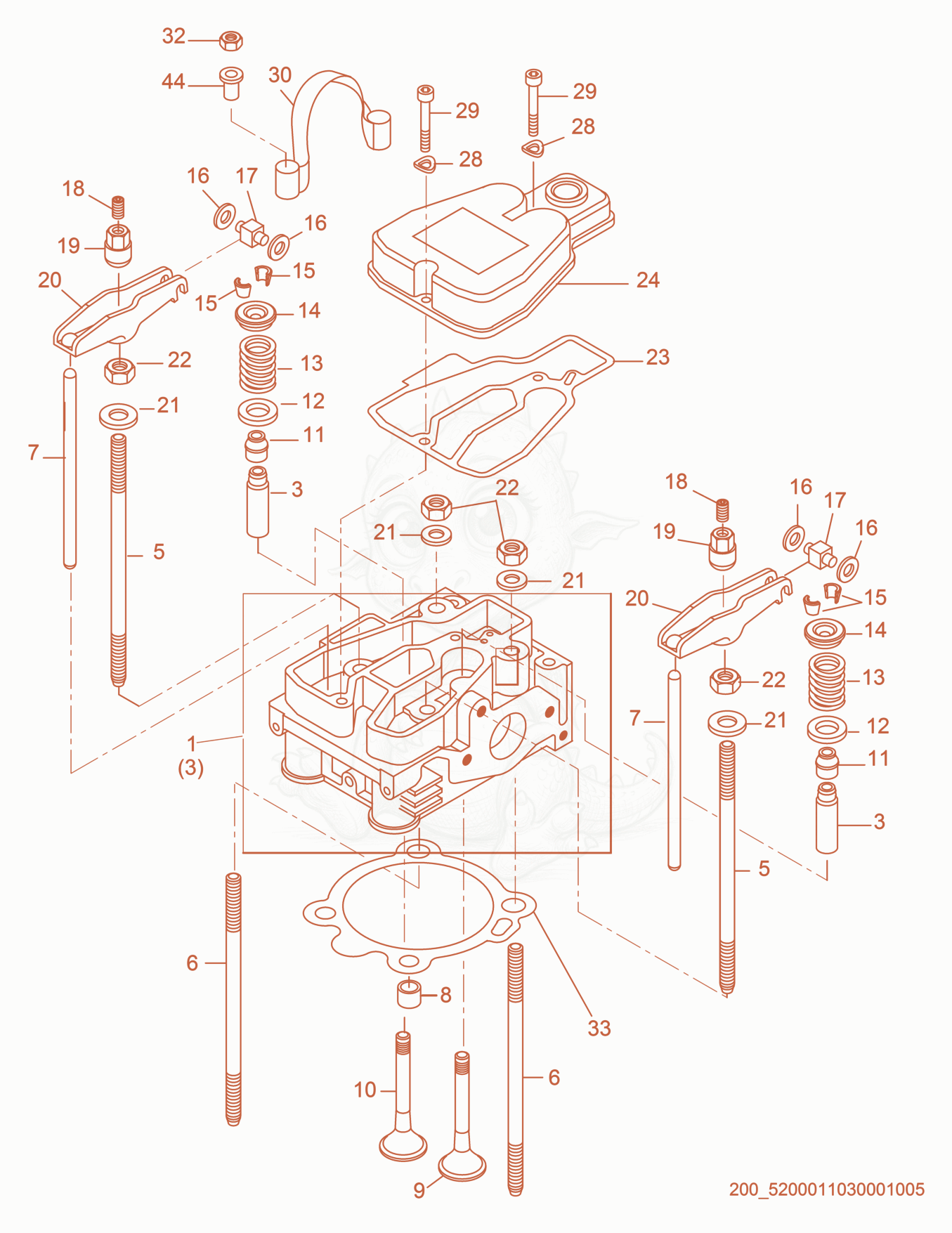

DS70 Cylinder Head cpl. Diagram
- 15200022003Not stockedCylinder head×1
- VALVE-GUIDE - 5000129000×2
- STUD-HEAD,CYLINDER 128MM - 5000108740×2
- ROD-PUSH - 5000108741×2
- SEAL RING - 5000108752×2
- VALVE-INTAKE - 5000108750×1
- VALVE-EXHAUST - 5000108751×1
- CAP-VALVE,STEM SEAL - 5000108738×2
- Washer - 5000108737×2
- SPRING-VALVE - 5000108736×2
- PLATE-SPRING - 5000108735×2
- HOLDER-PLATE,SPRING - 5000108734×2
- DISC-SUPPORT, 6X12X1.2 - 5000108730×1
- DISC-SUPPORT, 6X12X1.2 - 5000108730×1
- SLIDER - 5000108731×2
- SCREW-SET,M8X10 - 5000129001×2
- NUT-ROCKER ARM - 5000108732×2
- Rocker arm - 5000108733×2
- WASHER 8.1X20X3 - 5000108739×4
- NUT M8 10 - 5000094876×4
- GASKET-COVER,VALVE - 5000150919×1
- COVER-CYLINDER HEAD - 5000209708×1
- WASHER-SPRING, A6 - 5000151290×2
- SCREW-PAN HD,M6X35-8.8A3C - 5000129002×2
- Strap - 5000209694×1
- NUT M8,HEX - 5000129516×1
- GASKET 0.3MM - 5000108742×1
- GASKET-CYLINDER HEAD 0.35 - 5000209700×1
- GASKET 0.4MM - 5000108743×1
- GASKET-CYLINDER HEAD 0.45 - 5000209701×1
- GASKET 0.5MM - 5000108744×1
- GASKET-CYLINDER HEAD 0.55 - 5000209702×1
- GASKET 0.6MM - 5000108745×1
- GASKET-CYLINDER HEAD 0.65 - 5000209703×1
- GASKET 0.7MM - 5000108746×1
- GASKET-CYLINDER HEAD 0.75 - 5000209704×1
- GASKET 0.8MM - 5000108747×1
- GASKET-CYLINDER HEAD 0.85 - 5000209705×1
- GASKET 0.9MM - 5000108748×1
- GASKET-CYLINDER HEAD 0.95 - 5000209706×1
- GASKET 1.0MM - 5000108749×1
- Insert - 5000209736×2
