DT10e

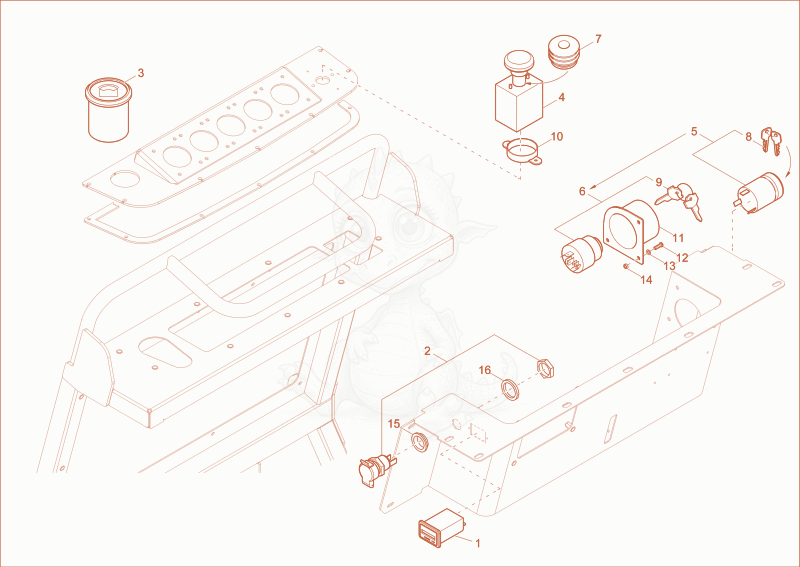

DT10E instrument panel Diagram

Exploded parts diagram of the instrument panel of a Wacker Neuson DT10E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000273201
    $402.00
    hour meter - 1000273201×1
  • 21000002902Not stocked
    socket×1
  • 31000351580Not stocked
    indicator instrument×1
  • 41000351578Not stocked
    emergency stopfeeler×1
  • 51000352092Not stocked
    glow start switch×1
  • 61000274724
    $396.79
    GLOW START SWITCH - 1000274724×1
  • 71000350867
    $42.44
    bellow - 1000350867×1
  • 81000352303
    $72.42
    Key - 1000352303×2
  • 91000274725
    $30.72
    key - 1000274725×2
  • 101000351579
    $204.01
    Bracket - 1000351579×1
  • 111000368140Not stocked
    cover plate×1
  • 121000279670
    $1.33
    Screw - 1000279670×3
  • 131000094962
    $0.04
    washer A 5,3 A2C DIN125 - 1000094962×3
  • 141000085587
    $0.03
    HEXAGON NUT - 1000085587×3
  • 151000487574Not stocked
    bushing×1
  • 161000487575Not stocked
    bushing×1
