DT10e

DT10E CHASSIS 2 (OPTION) Diagram

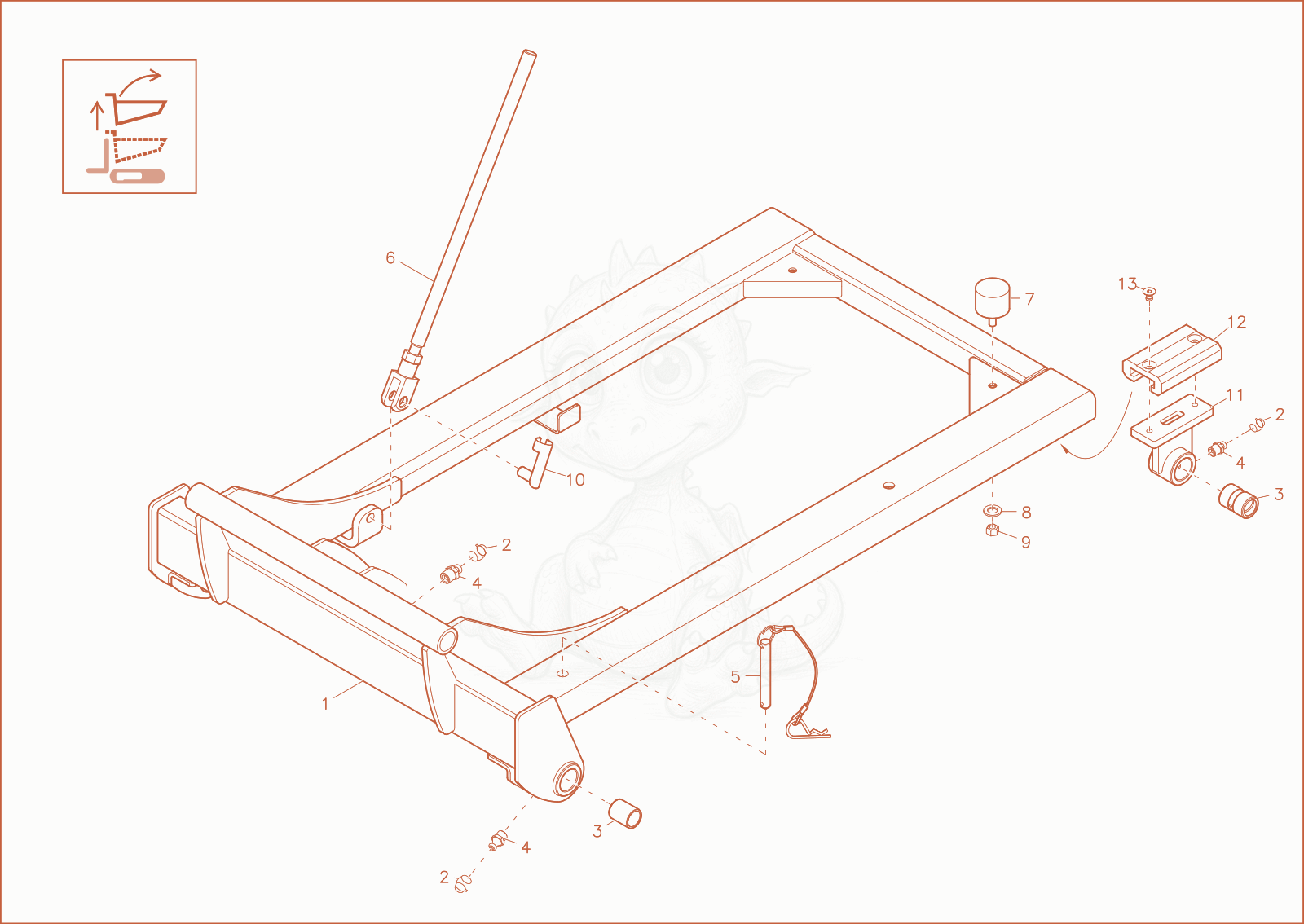

Exploded parts diagram of the CHASSIS 2 (OPTION) of a Wacker Neuson DT10E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000282760
    $5,082.30
    Chassis 1000282760×1
  • 21000282746
    $0.70
    PROTECTION CAP - 1000282746×5
  • 31000282352
    $54.97
    BUSHING - 1000282352×4
  • 41000015476Not stocked
    grease nipple×5
  • 51000274751
    $26.31
    PIN - 1000274751×1
  • 61000282761
    $59.92
    PIN - 1000282761×1
  • 71000287104
    $26.75
    shock absorber - 1000287104×2
  • 81000015431Not stocked
    washer×2
  • 91000013021Not stocked
    hexagon nut×2
  • 101000282861
    $4.20
    PIN - 1000282861×1
  • 111000282340
    $215.36
    sledge - 1000282340×2
  • 121000282339
    $94.44
    GUIDANCE - 1000282339×2
  • 131000282356
    $1.55
    SCREW M8x20-8.8 A2C DIN7991 - 1000282356×4
