DT10e

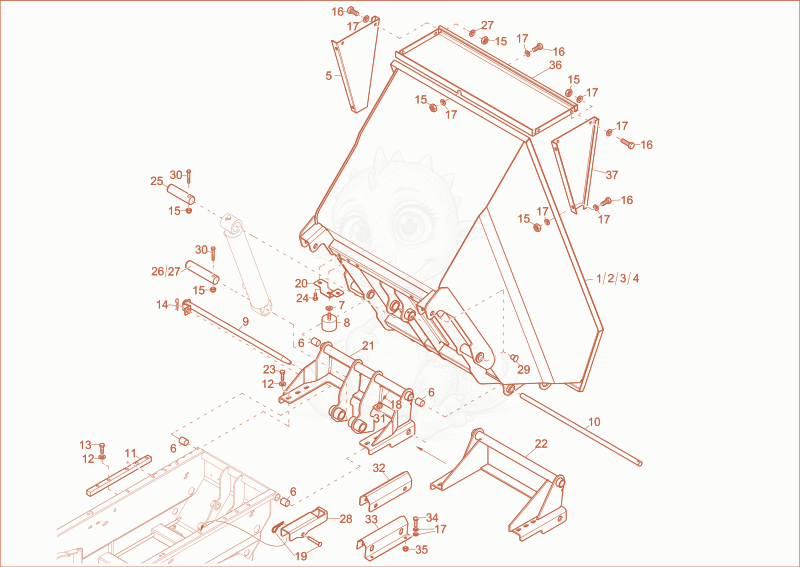

DT10E BUCKET 1 Diagram

Exploded parts diagram of the BUCKET 1 of a Wacker Neuson DT10E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000350955
    $9,755.55
    skip - 1000350955×1
  • 21000351489Not stocked
    skip×1
  • 31000387544
    $8,403.69
    bucket - 1000387544×1
  • 41000387545
    $8,403.69
    bucket - 1000387545×1
  • 51000276616
    $88.73
    Bulkplate 1000276616×1
  • 61000270024
    $38.34
    BUSHING - 1000270024×4
  • 71000278259
    $1.90
    Washer - 1000278259×2
  • 81000278258
    $43.20
    Damping - 1000278258×2
  • 91000272651
    $82.42
    Pin 1000272651×1
  • 101000272630
    $74.55
    pivot pin - 1000272630×1
  • 111000322582Not stocked
    guide rail×2
  • 121000270734
    $4.07
    Washer - 1000270734×6
  • 131000085391
    $0.91
    hex screw - 1000085391×4
  • 141000272072
    $1.55
    COTTERPIN - 1000272072×1
  • 151000269276
    $1.24
    HEXAGON NUT - 1000269276×11
  • 161000085382
    $0.70
    HEX SCREW - 1000085382×9
  • 171000015430Not stocked
    u-washer×18
  • 181000015476Not stocked
    grease nipple×1
  • 191000278260
    $53.15
    PIN - 1000278260×1
  • 201000276628
    $42.44
    BRACKET - 1000276628×2
  • 211000276609Not stocked
    chassis×1
  • 221000353279
    $4,068.30
    CHASSIS - 1000353279×1
  • 231000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×6
  • 241000015343Not stocked
    hex screw×4
  • 251000270731
    $38.91
    PIN - 1000270731×1
  • 261000275778
    $41.23
    PIN - 1000275778×1
  • 271000353278
    $31.99
    PIN - 1000353278×1
  • 281000321849
    $65.89
    BRACKET - 1000321849×1
  • 291000285985
    $0.59
    RUBBER BUSHING - 1000285985×4
  • 301000085310
    $0.78
    hex screw - 1000085310×2
  • 311000282746
    $0.70
    PROTECTION CAP - 1000282746×1
  • 321000272073
    $30.75
    LOCK - 1000272073×1
  • 331000350956Not stocked
    maintenance support×1
  • 341000018400Not stocked
    hex screw×2
  • 351000350859
    $1.55
    nut - 1000350859×2
  • 361000276612
    $137.78
    Bulkplate 1000276612×1
  • 371000276618
    $88.73
    Bulkplate 1000276618×1
