DT10e

DT10E BATTERY 1 Diagram

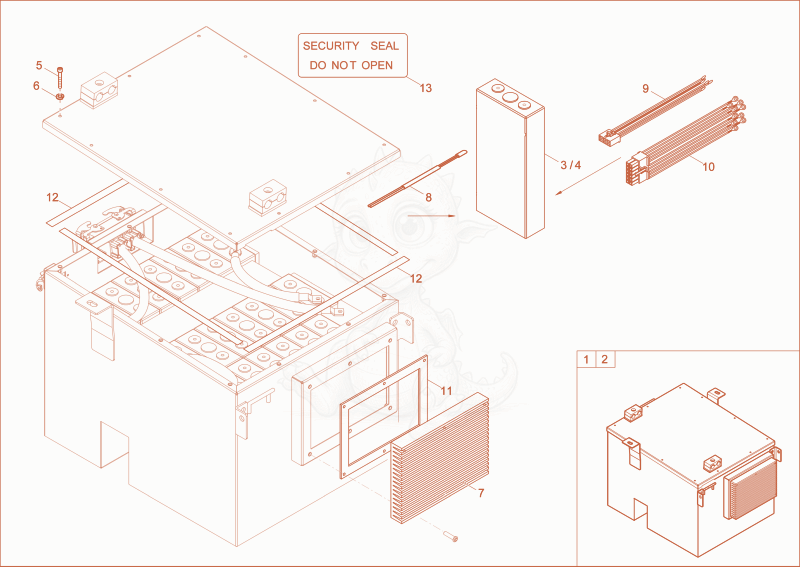

Exploded parts diagram of the BATTERY 1 of a Wacker Neuson DT10E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000351615Not stocked
    battery complete×1
  • 21000387541Not stocked
    battery×1
  • 31000350814
    $701.91
    battery - 1000350814×24
  • 41000387540Not stocked
    battery×24
  • 51000085450
    $0.70
    cheese head screw - 1000085450×11
  • 61000223604
    $1.64
    WASHER-SPRING - 1000223604×11
  • 71000410214
    $7,217.80
    electric - 1000410214×1
  • 81000419240Not stocked
    temperature sensor×12
  • 91000439618Not stocked
    cable×1
  • 101000439619Not stocked
    cable×1
  • 111000487530Not stocked
    seal×1
  • 121000487580Not stocked
    seal×1
  • 131000487582Not stocked
    sticker×1
