DT15

DT15 fuel injection equipment Diagram

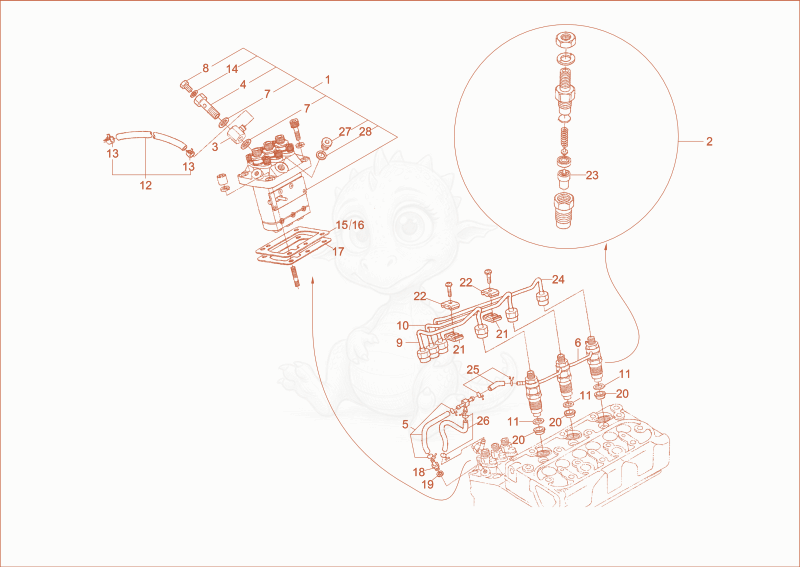

Exploded parts diagram of the fuel injection equipment of a Wacker Neuson DT15, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000376033Not stocked
    injection pump×1
  • 21000325051Not stocked
    injection nozzle×2
  • 31000375657Not stocked
    connection piece×1
  • 41000325067Not stocked
    banjo bolt×1
  • 51000336532Not stocked
    fuel line×1
  • 61000376046Not stocked
    pipe line×1
  • 71000088777
    $1.55
    seal ring - 1000088777×2
  • 81000088778
    $14.16
    lock screw - 1000088778×1
  • 91000336518Not stocked
    injection line×1
  • 101000336519Not stocked
    injection line×1
  • 111000019029Not stocked
    seal ring×2
  • 121000325068Not stocked
    injection line×1
  • 131000325069Not stocked
    pipe clamp×2
  • 141000088779
    $1.55
    seal ring - 1000088779×1
  • 151000109131Not stocked
    distance disc×1
  • 161000109133Not stocked
    distance disc×1
  • 171000109134Not stocked
    distance disc×1
  • 181000087618
    $12.97
    Screw - 1000087618×1
  • 191000038599
    $0.79
    Seal - 1000038599×1
  • 201000085224
    $5.83
    ENGINE GASKET - 1000085224×2
  • 211000085274
    $5.06
    clamp shoe - 1000085274×2
  • 221000085275
    $3.09
    CLAMP SHOE - 1000085275×2
  • 231000003703Not stocked
    nozzle insert×2
  • 241000336520Not stocked
    injection line×1
  • 251000336534Not stocked
    fuel line×1
  • 261000336533Not stocked
    fuel line×1
  • 271000376034
    $19.69
    plug - 1000376034×1
  • 285100024587Not stocked
    seal×1
