DT15

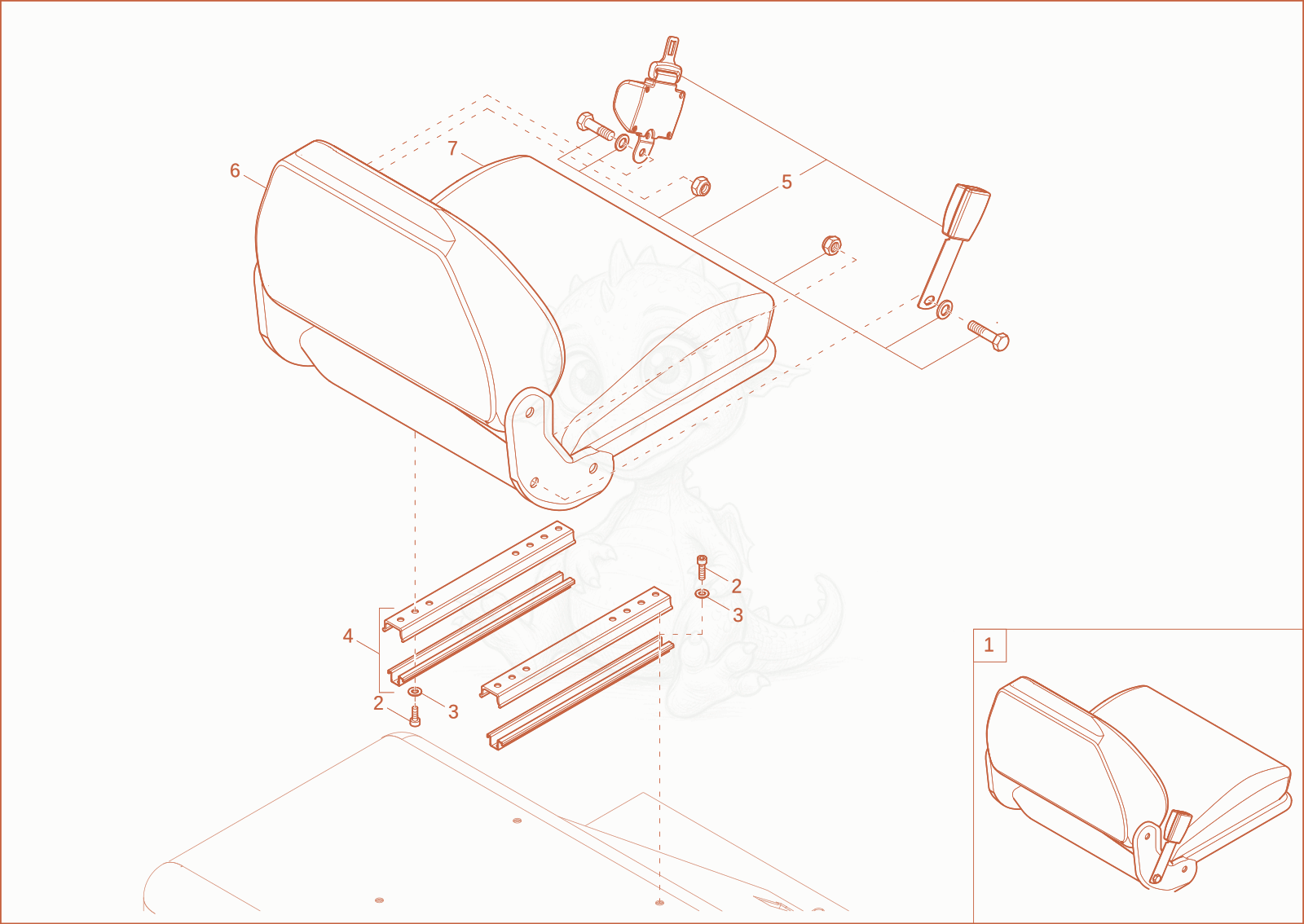

DT15 drivers seat Diagram

Exploded parts diagram of the drivers seat of a Wacker Neuson DT15, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000275011
    $798.70
    Driversseat 1000275011×1
  • 21000048378Not stocked
    cheese head screw×4
  • 31000015431Not stocked
    washer×4
  • 41000284787
    $109.71
    Kitofguideleftandrightforseat 1000284787×2
  • 51000394817Not stocked
    automatic belt×1
  • 61000394819Not stocked
    back cushion×1
  • 71000417514Not stocked
    seat upholstery×1
