DT15

DT15 fuel tank Diagram

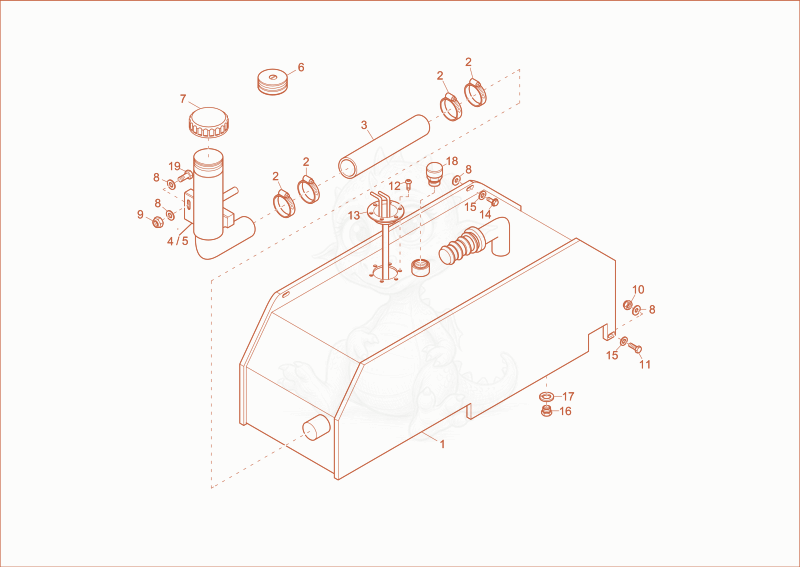

Exploded parts diagram of the fuel tank of a Wacker Neuson DT15, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000274642
    $1,482.82
    Fueltank 1000274642×1
  • 21000274643
    $11.67
    CLAMP - 1000274643×4
  • 31000274644
    $34.80
    fuel line - 1000274644×1
  • 41000274645Not stocked
    filler pipe×1
  • 51000335448Not stocked
    filler pipe×1
  • 61000274646Not stocked
    lock plug×1
  • 71000281181
    $85.29
    filler cap - 1000281181×1
  • 81000013027Not stocked
    washer×8
  • 91000269279
    $2.48
    hexagon nut - 1000269279×2
  • 101000269279
    $2.48
    hexagon nut - 1000269279×1
  • 111000015343Not stocked
    hex screw×1
  • 121000269265
    $1.90
    Screw - 1000269265×6
  • 131000274672
    $169.58
    LEVEL INDICATOR TANK - 1000274672×1
  • 141000322600Not stocked
    hex screw×3
  • 151000271022
    $1.90
    tension disc - 1000271022×4
  • 161000270659
    $9.56
    LOCK PLUG - 1000270659×1
  • 171000022187Not stocked
    seal ring×1
  • 181000274671
    $13.50
    VENTING FILTER - 1000274671×1
  • 191000013008Not stocked
    hex screw×2
