DV125

DV125 EXHAUST Diagram

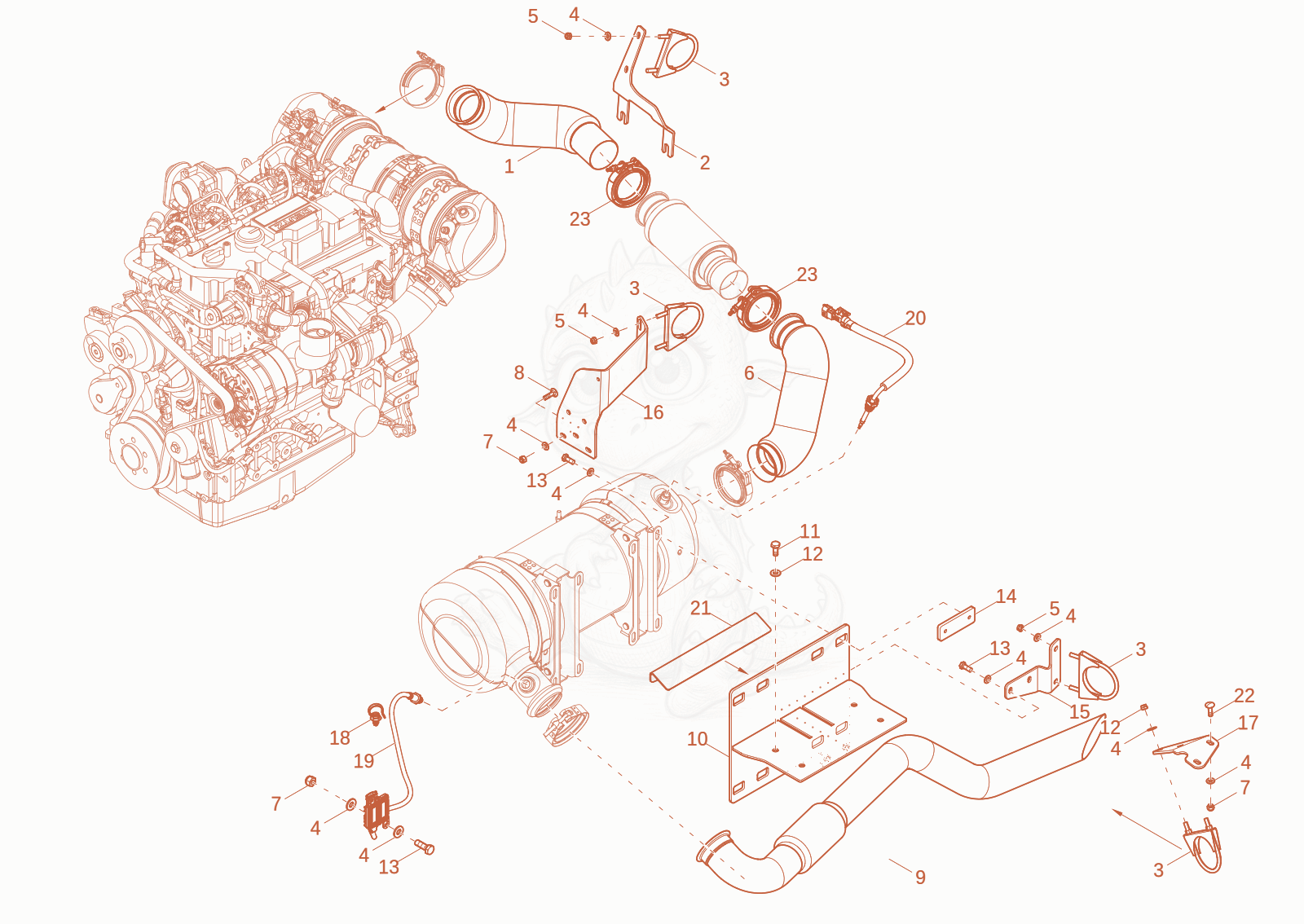

Exploded parts diagram of the EXHAUST of a Wacker Neuson DV125, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000475299
    $126.79
    exhaust pipe - 1000475299×1
  • 21000475241Not stocked
    bracket exhaust×1
  • 31000459579
    $29.21
    clamp - 1000459579×4
  • 41000015448Not stocked
    washer×27
  • 51000114374
    $5.97
    HEXAGON NUT - 1000114374×8
  • 61000456441
    $126.97
    exhaust pipe - 1000456441×1
  • 71000357534Not stocked
    hexagon nut×7
  • 81000431384Not stocked
    screw×3
  • 91000456440
    $131.96
    exhaust pipe - 1000456440×1
  • 101000508856
    $597.37
    BRACKET - 1000508856×1
  • 111000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 121000094974
    $0.70
    washer M10-DIN134 - 1000094974×4
  • 131000015343Not stocked
    hex screw×12
  • 141000461763Not stocked
    thread plate×3
  • 151000476485
    $56.57
    plate - 1000476485×1
  • 161000507879
    $133.11
    plate - 1000507879×1
  • 171000507642
    $65.27
    plate - 1000507642×1
  • 181000375997Not stocked
    fixing bracket×1
  • 191000354213
    $1,396.30
    Sensor - 1000354213×1
  • 201000354180Not stocked
    temperature sensor×1
  • 211000518282
    $164.42
    Bracket - 1000518282×1
  • 221000331758Not stocked
    flat head screw×2
  • 231000502793Not stocked
    clamp×2
